High Quality 5050 Flexible LED Strip Light
Price: |
US $ 6-12/Meter |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
High quality 5050 Flexible led strip light
Features:
1. Special Design: there are 60 pieces of LED on one meter strip.
Every 3 pieces of LED constitutes one 50mm long unit and one meter strip has 20 units. Each unit are independent and can be cut to use as a short strip. Each unit has the max watt of 0.72W.
2. Power(watt): 14.4W/Meter. The watt will lower down when the current sets to be lower
3. Working Current: Max 60mA. Current is sincerely suggested not to be higher than 55mA.
The Strip can be designed to produce constant-current strips to have a better stable brightness. The suggested constant current value is 35mA-55mA.
4. Strip width: 10mm(width ranges from 8mm to 18mm)
5. Avaliable Color Temperature:2700-10000K(Yellow, White,Blue, Red, Green, Purple and etc)
2700K-4000K(Warm White)
4500K-5500K (White)
6500K-10000K(Cold White)
6. Power Efficiency::≥90lm/W
7. IP44, Indoor application only.
Waterproof Strips are also avaliable:
The strip can be supplied with silicon sleeve outside the strip or can be covered by transparent epoxy layer, And the protection grade upgrade to IP65. It can be waterproof and can be used outdoor
8. Input Voltage:DC12V(or24V). The light should connect with 12V external power supply. Direct connecting with electrcity is forbidden. The input voltage for the power supply is 90-260V, which means this light strip can be used in all the countries all over the world.Series:5050 flexible led strip light |
LED/M | Voltage | Current | Max Watt | Width |
48pcs/m | DC 12V | ≤ 60mA | 11.52W/m | 8-18mm |
60pcs/m | DC 12V | ≤ 60mA | 14.4W/m | 8-18mm |
72pcs/m | DC 12V | ≤ 60mA | 17.28W/m | 8-18mm |
90pcs/m | DC 12V | ≤ 60mA | 21.6W/m | 8-18mm |
48pcs/m | DC 24V | ≤ 60mA | 11.52W/m | 8-18mm |
60pcs/m | DC 24V | ≤ 60mA | 14.4W/m | 8-18mm |
72pcs/m | DC 24V | ≤ 60mA | 17.28W/m | 8-18mm |
84pcs/m | DC 24V | ≤ 60mA | 21.6W/m | 8-18mm |

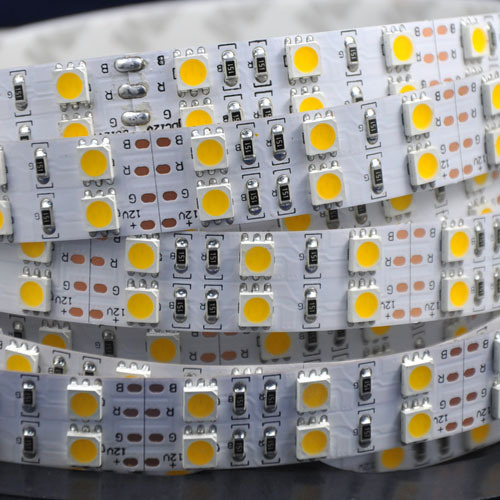

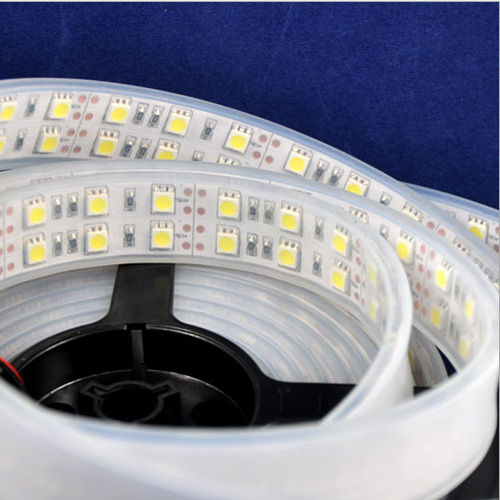

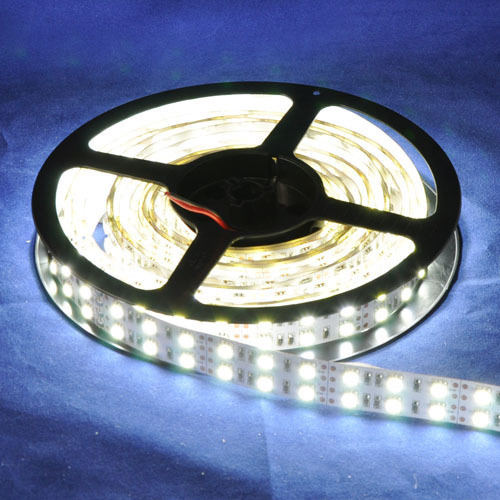

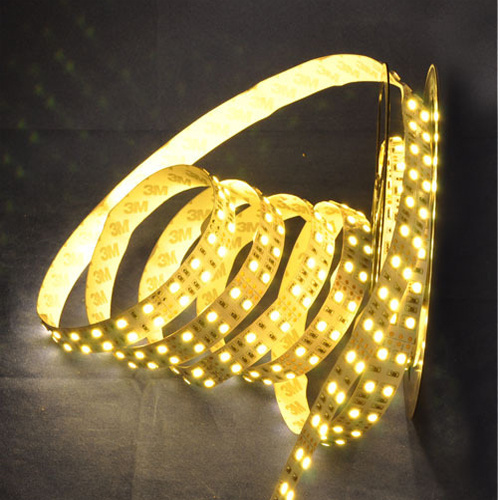

5050 led strip light Photos:
FAQ:
1. We are a factory manufacturing led indoor lamps,best production capability ,best quality control, best service .
2. 100% QC inspection Before Shippment.
3. CE/RoHS listed, competitve price.
4. For small order: 100% T/T in advance. For bulk order: 30% down payment, the rest 70% pay before shipping.
5. Products delivery time for 100~1000pcs:5-7 days, 1000~5000 pcs:15 days.
6. Sample can be delivered in 3-5 days.
7. Shipping freight are quoted under your requests.
8. Shipping port: Shenzhen, China.
9. Discounts will be offered based on the order quantities.
We can make the special product according to your reqiurement.
Thank for your visit
Prod Model: |
OLSL5050 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Flexible LED Strip Light |
LED Quantity: |
30-240PCS/M |
LED Type: |
5050 |
Cct: |
2700-10000k |
Circuit Board: |
FPC |
Width: |
5-18mm |
Life(H): |
30000 |
Samples: |
Ok |
Sealed Plastic Bag: |
in Round Reel(5m or 10m) |
Warranty: |
One Year |
Power: |
4.8-14.4W/M |
Emitting Color: |
Warm White, Cold White |
Voltage: |
DC 12V/24V |
Shenzhen City New Collar Billion Lighting Technology Co., Ltd. is a focus on the development of green energy saving and energy-efficient lighting products to promote enterprise. The company specialized in the production and sale of high-quality, ultra energy-efficient, environment friendly and healthy indoor and outdoor LED lighting.
We set R&D, sales promotion, after-sales service. And we have experienced R&D engineers and a strong production team, have a complete and scientific quality management system. Based on the domestic and foreign market, the company is trying to build up a super strong LED Light market with its own brands and the best quality for wholesalers and retailers from all over the world.
Now our factory have 9 years experiences in producing LED light, owning excellent R&D engineer and powerful production team. Our factory have workers over 100 people, and 15 sales staff. The export value have reached 8 million RMB one year.
In other words, we are trying to build up a strong LED market with our own brands and the best quality for wholesalers and retailers from all over the world.
Please contact us for further information. We believe that we are the best professional LED Light supplier.
