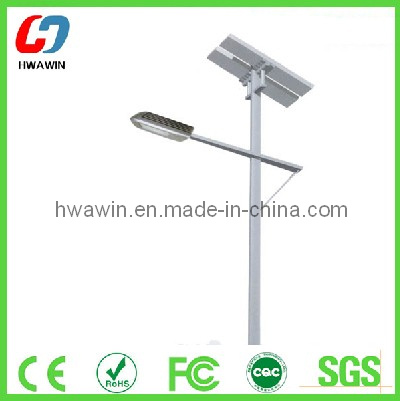

High Power Waterproof Solar LED Street Light with Pole
Product Description
Solar street light, widely used in lighting highways; Roads: Bridges; Pedestrain street and other occasions when lighting is required. The photovoltaic panels charge a rechargeable battery, which powers a fluorescent or LED lamp during the night.
Configuration of 8M 9M 10M Light Pole 60W LED Lamp Solar Street Light:
The configuration of 8M 9M 10M Light Pole 60W LED Lamp Solar Street Light is designed on averaged insolation 5.5 kWh/m2/day, and the energy saving method is adopted in the configuration of this Solar Street Light.
LED lamp | 60 Watts |
| Solar panel | 2PCS*90Wp |
| Storage battery | 2PCS*12V/100AH gel battery |
| Solar controller | 12V/24V auto with LED driver |
| Battery box | 24V/120AH |
| Applicable light pole | 8-10 meters |
| Lighting time | 10-12 hours |
| Backup days | 3-4 backup overcast or rainy days |
| System voltage | DC24V |
| Design Mode | Energy saving method |
| Warranty | 2-3 years |
Technical description of 8M 9M 10M Light Pole 60W LED Lamp Solar Street Light:
1. Super bright LED, 5500-6500K for choice, 120LM/W, IP65 cast aluminum lamp housing.
2. High efficiency polycrystalline solar pane, with aluminum frame, tempered glass and junction box.
3. Maintenance free gelled valve regulated sealed battery, deep cycle.
4. Intelligent solar controller, IP68 waterproof, with protection functions and energy saving modes etc.
5. IP 68 waterproof battery underground box (battery box on pole top is optional)
6. Cable to meet relevant solar lighting purpose
7. Optional light pole made of Q235 quality steel, hot dipped galvanized & plastic powder coated,
rust proof. With light arm, flange base & anchor bolts, solar panel bracket and screws.
1. Solar Panel of solar street light
Solar panel is one of the most important parts of solar street lights, as solar panel will convert solar energy into electricity. There are 2 types of solar panel: Mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.
2. LED Lamps of solar street light
LED Lamps is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower thanHPS fixture which is widely used as lighting source in Traditional street lights.
3. Pole of solar street light
Strong Poles are necessary to all street lights, especially to solar street lights as there are components mounted on the top of the pole: Fixtures, Panels and sometime batteries. And wind resistance should also be taken into consideration when choosing the pole.
4. Gel Valve-regulated Sealed Battery of solar street light
Battery will store the electricity from solar panel during the day and provide energy to the fixture during night.
5. Battery box of solar street light
Protect the battery
6. Controller of solar street light
Controller is also very important for solar street light. A controller will usually decide to switch on /off charging and lighting. Some modern controllers are programmable so that user can decide the appropriate chance of charging, lighting and dimming.
Hwawin Solar Technology Co., Ltd. is the key member of Hwawin Group, dedicated to the R&D, manufacture and international trade of solar modules, solar street lights, solar garden lights and other solar products since 2002. At present, we have our own plants in Zhangjiagang and Yangzhou City.
Our best competitive products:
Solar Street Lights with 5M-12M street light pole and 15W-100W super bright LED street lamps; Solar Garden Lights with 2.5M-4M light pole and 5W-15W solar garden lamps; Polycrystalline and monocrystalline solar panel 10-300Wp; 10W-120W LED Lamp, Solar Battery Buried Box,
MPPT Solar Charge Controllers, PMW Intelligent Solar Controllers with LED Drivers; Solar Road Studs, Solar Brick Lights.
The Environment Protection Equipments from Hwawin Industrial Group mainly include Road Sweeper and Floor Scrubbers:
Our Road Sweepers are powered by electricity from batteries, with Walk Behind type and Ride on Type. The Electric Road Sweeper, Electric Street Sweeper adopts automatically cleaning system for the suction and sweeping. The electric road sweepers are mainly used for university, residential property, factory, workshop and square. Both indoor and outdoor cleaning.
Our Electric Walk behind Floor Scrubber and Electric Ride on Floor Scrubbers can fit all ground of the business environment, paint ground, concrete and ceramic tile ground. Besides, it can provide excellent cleaning performance for workshop, storage, logistics center, supermarket, hospital and so on.
Overseas Exploration and Popularity:
We successfully sell our solar lighting products and environment protection equipments to overseas markets such as the USA, UK, Spain, Greece, Norway, Belgium, France, Portugal, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Singapore, Philippines, Nigeria, Congo, Tunisia etc.
For the Future:
With advanced manufacturing & testing equipments, our company is growing better and better. We hope to cooperate with more partners, distributors, agents, road builders, contractors, project business men to develop more business to create prosperous win-win partnerships. OEM is available.
