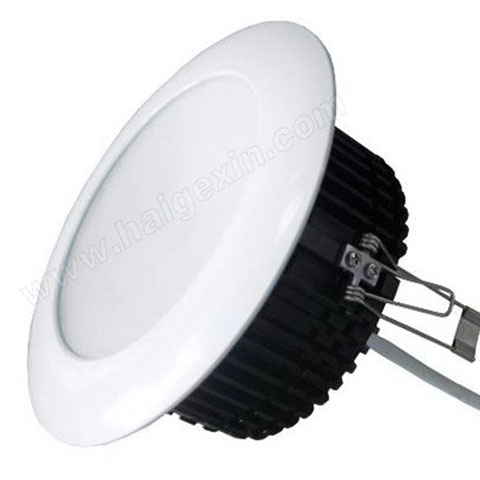

High Power Dimmable 20W LED Down Light
6inch 20W high power dimmable LED down light are eco-friendly to the environment. It is easily installed into standard fitting with loaded spring, replace traditional (fluorescence, halogen) ones directly.
Features of 6inch high power dimmable 20W LED downlight
1. Wide range of input voltage: AC 85-265V
2. Instant start, no flickering, no humming, No RF interference
3. New high efficiency constant current driver
4. Heat dissipation: The multi-fin casting design ensures full heat dissipation.
5. Eco-friendly: Long life, energy saving and no mercury
6. Compatible with traditional down lamp in installation dimensions
7. No electrical wave, conforming to CE
8. Green environmental protection, lead-free material, conforming to RoHS
Applications:
Hotels
Conference / Meeting rooms
Factories & Offices
Commercial Purposes
Residential / Institution Buildings
Schools, Colleges & Universities
Hospitals
Maintenance:
1. Prior to cleaning the light, make sure it has been disconnected from the power supply.
2. Use a dry or slightly moistened cloth for cleaning.
3. Never use any chemicals or abrasives for cleaning.
|
Number |
Item |
Description |
|
1 |
Part Number |
HGX-6DL20-W |
|
2 |
Input Voltage |
AC85-265V |
|
3 |
Power Consumption |
20W |
|
4 |
Operating Current |
750mA |
|
5 |
Dimension |
196mm× (H)45mm |
|
6 |
Cutout size |
170mm |
|
7 |
Color |
Warm white 2700-3700K |
Cool white 5000-6500K |
|
8 |
Luminous Flux |
Warm white 1700lm |
Cool white 1900lm |
|
9 |
Beam angle |
120 degree |
|
10 |
Power factor |
0.9 |
|
11 |
Life span |
50000 hours |
|
12 |
Operating Temperature |
-10 to 50 |
|
13 |
Storage Temperature |
-20 to 80 |
|
14 |
Humidity Operating |
10-80% |
|
15 |
Certifications |
CE, RoHS |
|
16 |
Main Material |
Aluminum +PMMA +PC |
|
17 |
Lens |
Frosted cover |
|
18 |
Fixing Ways |
In-built |
