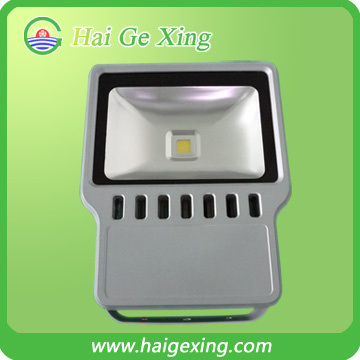

High power IP65 10W-400W outdoor LED flood light
Main Features
1. LED Sources: One/two/three/four COB high power LED(10W-400W).
2. LED Efficiency: 85-90lm/w. The maintain luminous flux is up to 11, 200lm.
3. Effective Light Angle: 117 degree
4. Work Voltage: AC(85V-265V)/(50~60Hz)DC(12~24V)
5. Power factor(PF): >0.9
6. Ra>80
7. Color temperature (CCT): 2700~7000K
8. IP Rating: IP65
9. Environment friendly: No UV, IR, lead or mercury.
10. No delay start
Materials
1. High-purity Aluminium reflector
2.5mm High intensity tempered glass cover
3. Powerful LED light source
4. High efficiency LED driver
Application:
1. Supermarkets
2. Factories
3. Gymnasiums
4. Yards
5. Courtyards
6. Advertising boards
7. Buildings
8. Garden designs
9. Some other outdoor places where need lighting and decoration.
Power Consumption |
100w |
LED Chip Quantity |
1pcs COB led chip |
Lumens |
9000lumens |
Beam Angle |
120degrees |
Color |
white, red, blue, green |
Input Voltage |
85-265v AC |
Working Voltage |
24-36v DC |
Frequency Range |
50-60Hz |
Power Factor(PF) |
> 0.96 |
Color Rendering Index (CRI) |
> 78 |
Color Temperature |
Warm white: 3000-3500k |
Natural white: 4000-4500 |
Cool white: 6000-6500 |
Total Harmonic Distortion (THD) |
< 13% |
Working Life Time |
50, 000 Hours |
Light Body & Lampshade Material |
Aluminum House & Tempered Glass |
IP Rating (Waterproofing) |
IP65 |
Working Temperature |
“ -40° C- +55° C” |
Storage Temperature |
“ -50° C- +60° C" |
Junction Temperature |
70° C ( Ta = 25° C ) |
Warranty |
4years |
