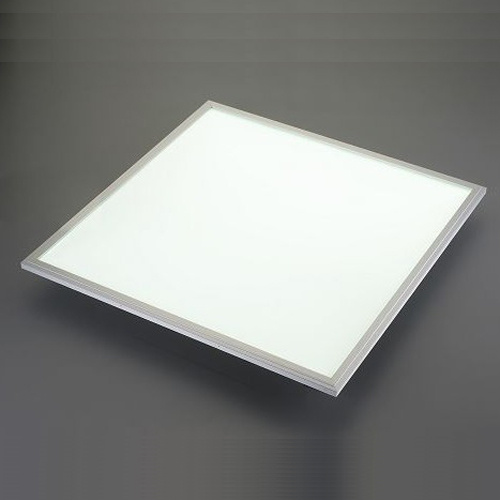

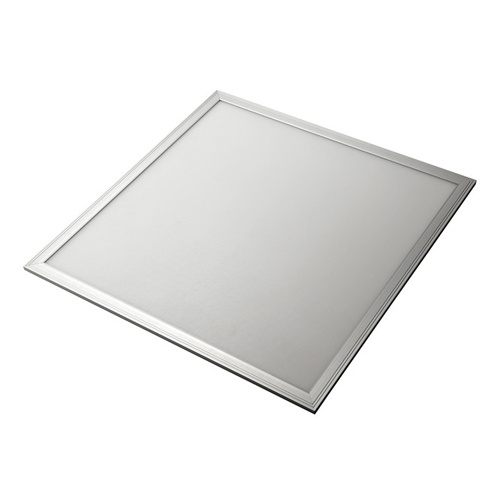

PL-6060 is LED flat panel light for indoor lighting, which providing excellent efficiency and high stability.
Technical and performance information
Housing material: Aluminium alloy
Power supply: 100~240V AC-DC adapterCurrent constantly driving, CE certified
Highly efficient and energy saving
Light guide plate: laser dotted LGP based on Mitsubishi acrylic

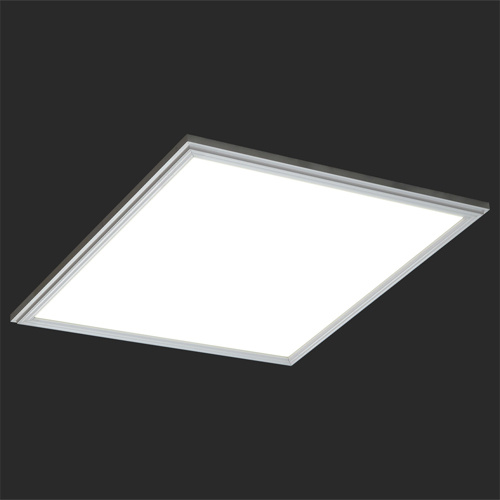

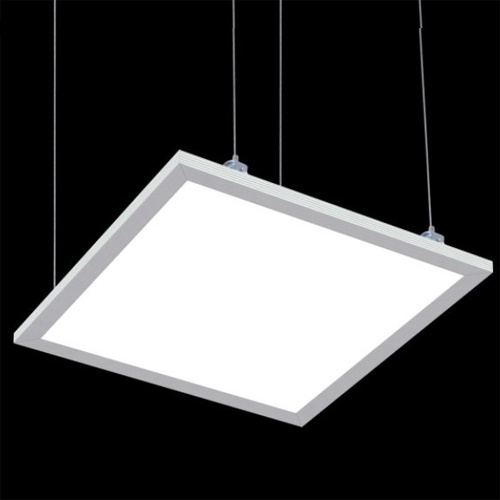

Mounting style: embeding or hanging
Working tempearture: -44
oC~55
oC
Size: 595X595X11mm
| Numbers of LED | SMD 2835M, 240 Leds |
| Power consumption | 32W, 36W, 42W |
| Input voltagge | AC 10000~240V/50~60Hz |
| Light efficiency | 80 lm/W |
| Luminous fluxx | 3360 lm |
| Colour temperature | 3000K, 4200K, 6000K |
| Color rendering index | >80 |
| Light beam angle | 120o |
| Power factor | >0.95 |
| Waterproof | IP20 |
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.
With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.
Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.
From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.
Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.
We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
