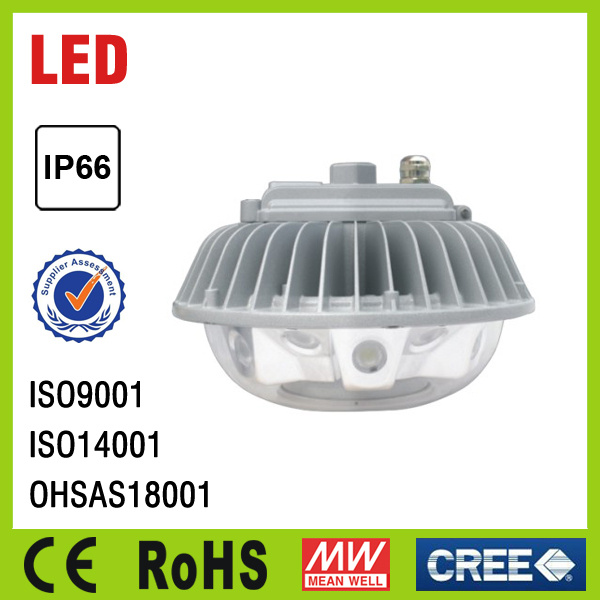

high efficiency fixtures outdoor led flood light
Application
This product is applicable to fixed lighting in various power distribution chambers, main plants, water pump centers, boiler rooms, passages, catwalks, coal storage, etc.
Characteristics
1. With the unique light distribution design, make the light welldistributed. Its beam angel can reach 220°. It efficiently utilize the light. Have a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.
2. The housing is especially designed to dissipate heat. Besides, it uses the thermal transmission to accelerate the heat conduction which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
3. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp. 4. Equipped with world top ranking electrical appliance, ensure the lamp's performance more stable and efficient.
5. Easy to install. The chain on the cover make it more safe when maintenance.
6. The housing adopts high-tech surface spraying technology, abrasion resistance and resistance to corrosion, waterproof, dustproof, suitable to be used in all kinds of environments.
7. 18-43VAC or 18-55VDC is optional for 25W and 40W as customers' requirement.
Main specification
Input Voltage |
90-264VAC / 127-370VDC |
Frequency |
50Hz / 60Hz |
Ingress Protection |
IP66 |
Anti Corrosion Grade |
WF2 |
Insulation Grade |
I |
Space Height Ratio |
3.5 |
Thread |
G3/4'' |
Leading-in
cable diameter |
Φ8mm Φ14mm (Ceiling Mounting 6mm 8mm ) |
Dimension |
Φ232x185mm |
Net Weight |
2.2Kg |
Ordering reference
Model Number |
Input Voltage |
Light source |
Rated
wattage(W) |
Light
output
(lm) |
Equivalent to |
MH |
LVD |
CFL |
HP |
ZY8601-L25 |
90-264VAC
or 127-370VDC |
LED |
25 |
3,300 |
50~70W |
50W |
60W |
80W |
ZY8601-L40 |
LED |
40 |
5,508 |
100W |
85W |
120W |
125W |
ZY8601-L60 |
LED |
60 |
7,128 |
150W |
120W |
180W |
175W |
Optional |
ZY8601-L25-D |
18-43VAC
or 18-55VDC |
LED |
25 |
3,300 |
50~70W |
50W |
60W |
80W |
ZY8601-L40-D |
LED |
40 |
5,508 |
100W |
85W |
120W |
125W |
Metal Halide Lamp: MH
Electrodeless Lamp: LVD
Energy Saving Lamp: CFL
High Pressure Mercury Lamp: HP
