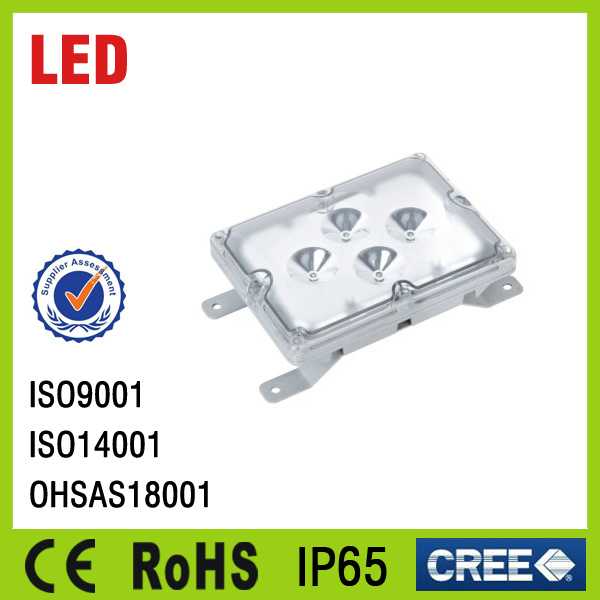

High Efficiency Energy Saving Industrial LED Light Fixtures
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
high efficiency energy saving industrial led light fixtures
Application
This product is applicable to flood lighting in warehouses, trenches, tunnels and some other public places.
Characteristics
1. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
2. The light source service life can reach 100, 000 hours. Low maintenance.
3. World famous brand Electronic Component, provide with more stable performance and high efficient.
4. The unit has perfect electromagnetic compatibility feature, can avoid the interference caused to the other device and electric power transmission network.
5. Light weight aluminum alloy with latest spray coating treatment. Anti rust, corrosion resistant and waterproof.
6. The transparent part is made of the imported PC materials. It enjoys a higher light transmission, and can endure impact. Ideal for all kinds of harsh environment.
7. 18-43VAC or 18-55VDC is optional as customers' requirement.
Main parameter
Specification |
Unit |
ZY8800A |
ZY8800B |
Input voltage |
V |
AC90-264 |
Frequency |
Hz |
50 / 60 |
Output voltage |
V |
DC14 |
Light power |
W |
12 |
6 |
Luminous flux |
lm |
1,144 |
680 |
High space ratio |
|
2 |
Service life |
h |
100,000 |
Size |
mm |
180x130x66 |
Net weight |
Kg |
1 |
Ordering reference
Ordering
Reference |
Light Source |
Rated wattage
(W) |
Light output
(lm) |
Equivalent to |
MH |
CFL |
ZY8800A |
LED |
12 |
1,144 |
36W |
28W |
ZY8800B |
LED |
6 |
680 |
18W |
18W |
Energy Saving Lamp: CFL
Metal Halide Lamp: MH
| Prod Model: |
ZY8800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC90-264V |
| Light Power: |
a(12W)/B(6W) |
| Service Life: |
100,000 H |
| Frequency: |
47-63Hz |
| Luminous Flux: |
a(1140lm)/B(680lm) |
| Size: |
180*130*65mm |
| Height Space Ratio: |
2 |
| Net Weight: |
1kg |
| IP Rating: |
IP66 |
| Light Source: |
LED |
| Material: |
Aluminum |
| Certification: |
RoHS |
| Type: |
LED Lighting |
