| Item | Parameter |
| Model | P13.33 full color LED module |
| Module size | 320mm * 160mm |
| Pixel pitch | 13.33mm |
| Pixel density | 5625dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 24dots(W) * 12dots(H) |
| Max power consumption | 22W |
| Module thickness | 25mm |
| Module weight | 0.8KG |
| Driving method | Constant current driving |
| Scan method | 1/6 scan |
| Interface way | HUB08 |
| Brightness | ≥5000cd/m² |
| Cabinet size | 960mm * 960mm |
| Power supply mode | 5V/40A 5V/60A |
| Optimal viewing distance | 15M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤600W/m² |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Product Features. 1.Ultra-high-definition display,high-precision seamless.2.The new stucture designed to meet the lifting,stacking requirements,to meet the requirements for
indoor and outdoor.
3.Ultra-high refresh rate,support the camera recorder,to ensure a clear picture quality.
Quick editing of assembly,disassembly system,saving unloading time.
Using range.
Widely used in a variety of needs large hall, sports arena,banking, telecommunications, government agencies, terminal, pier, railway stations, the stock market and other trading market, medical systems, electric power, galleries and other publicity, advertising, information dissemination, the guide places.

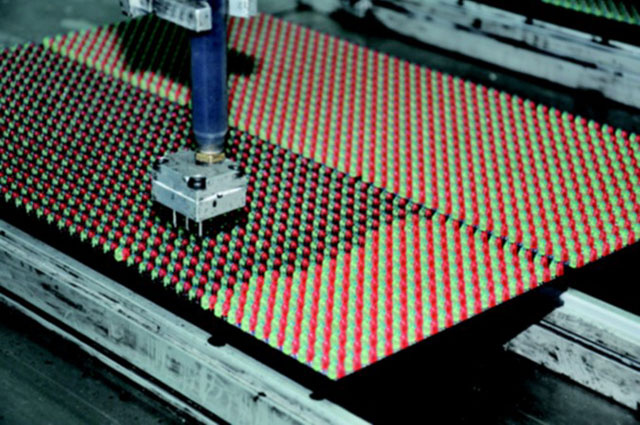

Automatic module plastic irrigation machines.

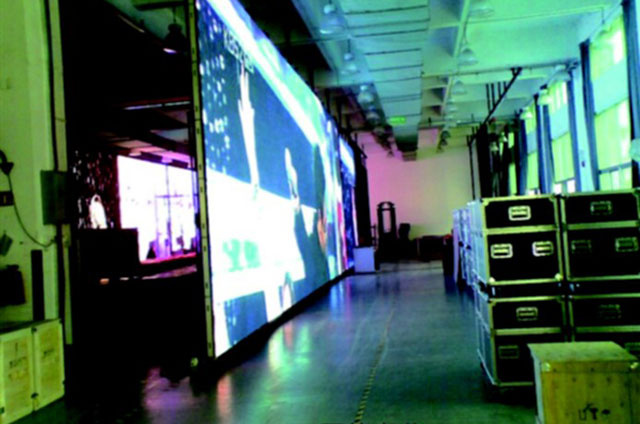

Screen aging test.
