Technical Parameters
| Item | Parameter |
| Model | P6 full color LED module |
| Module size | 192mm * 96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m² |
| Pixel configuration | 1R1G1B 3in1 |
| Module resolution | 32dots(W) * 16dots(H) |
| Max power consumption | 20W |
| Module thickness | 27mm |
| Module weight | 0.4KG |
| Driving method | Constant current driving |
| Scan method | 1/8 scan |
| Interface way | HUB75B |
| Brightness | ≥7000cd/m² |
| Cabinet size | 768mm * 768mm |
| Power supply mode | 5V/40A 5V/60A |
| Optimal viewing distance | 5M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤600W/m² |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Features:
1. With good lightening accordance and no mosaic.
2. Led advertising board can play different formats of image files, flash, WAV/MIDI,
video signal from TV, video signal from video and other equipment.
3. Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment.
Applications:

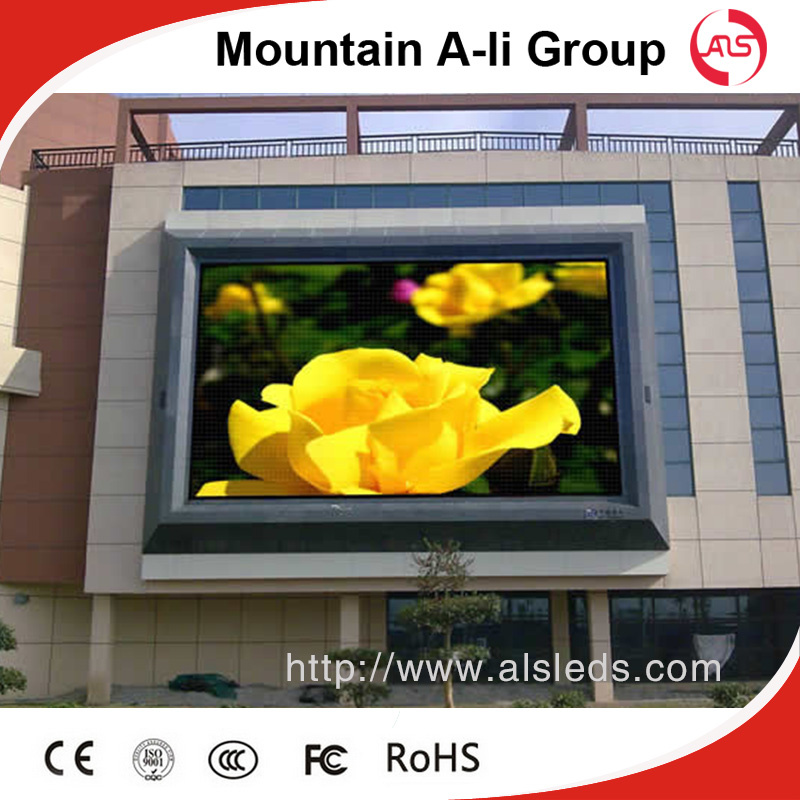

Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
