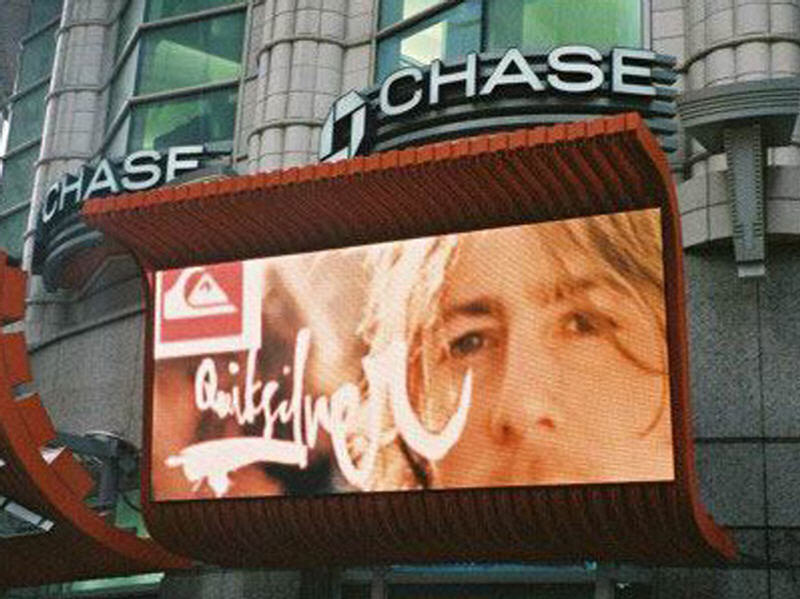

P10 outdoor full color LED display
* outdoor full color LED display
* Lifespan: >100.000hours
* CE, RoHS, FCC, CCC
* IP68 water-proff
* Lower power
P10 LED display specification:
Type: Outdoor full color LED display
Pitch pixel: 10mm
Specialty:
1. The system uses FPGA control technology, adopting super scale IC control technology;
2. Synchro display, the mapping position and size can be adjusted, and multi-window can be open;
3. Framing, moving, folding, open up, the facture and play of 3D, adjustment of show time, circling menu;
4. with multi-media play, you may play with the PLA/NTSC function of the camera, recorder, video, TV, and so on, exquisite picture, living color;
5. Modularized construction design, size combination at will, high brightness, and high definition;
6. Bicolor display unit specializes un-line revising technology, and blue compensate technology.
We can provide LED products with Mature technology, fresh color, simple construction, high resolution and so on. Please feel free to contact us.
|
Model No: HSGD-O-F-P10 |
Item |
Parameter |
Pitch Pixel |
10 MM |
LED Configuration |
1R, 1G, 1B |
LED standard |
3mm Lamp |
Module Demension |
160*160 MM |
Moudule Resolution |
16*16 Pixel dots |
Cabinet Demension |
640*480mm |
Cabinet Resolution |
64*48 Pixel dots |
Cabinet Weight |
50 KGS/SQ. M |
Luminance |
6500 NIT |
View Angle |
110(H), 90(V) Degree |
Power Consumption(Average) |
600-1000 W/ SQ. M |
Best View Distance |
10~150 Meters |
MTTF |
5, 000 Hours |
Protection Level |
IP 65 |
Pixel Density |
10000 Dots/ SQ. M |
Drive Mode |
Static constant curren |
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
