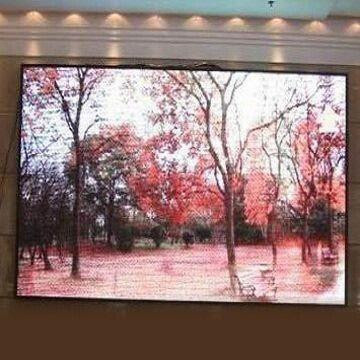

P4Indoor LED Video Display with 7.62mm Pixel Pitch, 7 to 200m Viewing Distance and 1/8 Static Mode
P7.62mm SMD indoor full color LED display
Pixel pitch: 7.62mm
Brightness: ≥ 1, 300CD/m2
Maximum consumption: 800W
Average consumption: 300W
Pixel composing: 1R1P1B
LED type: SMD
Resolution: 17, 222 pixel dots/m2
Best viewing distance: 7 to 50 meters
Viewing angle:
Horizontal: 100°
Vertical: 120°
Module dimensions: 244 x 122mm
Module resolution: 32 x 16 pixels dots
Cabinet dimensions: 732 x 488mm
Cabinet resolution: 96 x 64 = 6144 pixel dots
Working temperatures: -20 to +60° C
Heat treatment with fans inside
IP rating: IP43
Driving IC: 5020
Driving mode: Constant current
Scanning way: 1/8
Brightness adjustment: Automatic and manual (by software)
Lifespan: ≥ 100, 000 hours
MTBF: ≥ 5, 000 hours
Displaying colors: 1, 024 x 1, 024 x 1, 024
Signal interface: DVI
Control system: Synchronous control system
Data communication: Optical fiber
Available signals: RF, S-Video, RGB, RGBHV, HDTV, DVD, camera, DVI, and more
No. |
Specifications |
Project |
1. |
LED chip |
Epistar/Silan/Cree etc... |
2. |
Physical Pixel Pitch |
7.62mm |
3. |
Physical Pixel Density |
17220dots/m 2 |
4. |
Pixel composition |
SMD,1Red, 1Green,1Blue |
5. |
Moduel Size |
244*122mm |
6. |
Moduel resolution |
32*16dots |
7. |
Cabinet thickness |
< 170 mm |
8. |
Bracket of cabinet |
Easy to install onto the LED cabinet and unistall . |
9. |
Brightness |
≥ 1000cd/ m 2 |
10. |
Colors |
16.7million |
11. |
Viewing angle |
Horizontal ≥120°, Vertical : ≥ 120° |
12. |
Viewing distance |
5m -100m |
13. |
Scan frequency |
≥600 Hz
There will be one receive card in each cabinet ,so that the LED display wont sparked .
Also it is very easy to move and connetct |
14. |
Video Frame Rate |
≥150 fps |
15. |
Control method |
Controlled by PC, synchronous display |
16. |
Life span( half brightness) |
≥100,000 hours |
17. |
Weight |
25Kg /sqm |
18. |
Average power consumption |
300W/sqm |
19. |
Peak power consumption |
800W/sqm |
20. |
Input voltage |
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
21. |
Operating Environment |
Temperature:-20+60 Humidity:10%95%RH |
22. |
Operating system |
Windows 7/Vista |
23. |
Type of video signal |
S-video, composite video ,RGB ,VGA ,DVI |
