High Brightness Outdoor P6 SMD LED Screen LED Display

Prod Model:	Outdoor P6 SMD LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Outdoor P6mm SMD LED Display
Module Size:	192mm*192mm
Cabiet Size:	768mm*768mm
Brightness:	≥6000CD/M2
Best Viewing Distance:	5-50m
Best Viewing Angle:	160°(W) 120°(H)
Refresh Rate:	≥600Hz
Mean Time Between Failures:	10000 Hours
Scanning Method:	1/8 Scan
Module Thickness:	2.7cm
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,EMC,IP65
Pixel Pitch:	6mm
Pixel Density:	27777dots/M2

Product Description

High Brightness Outdoor P6  SMD LED Screen LED Display

Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of LED display.

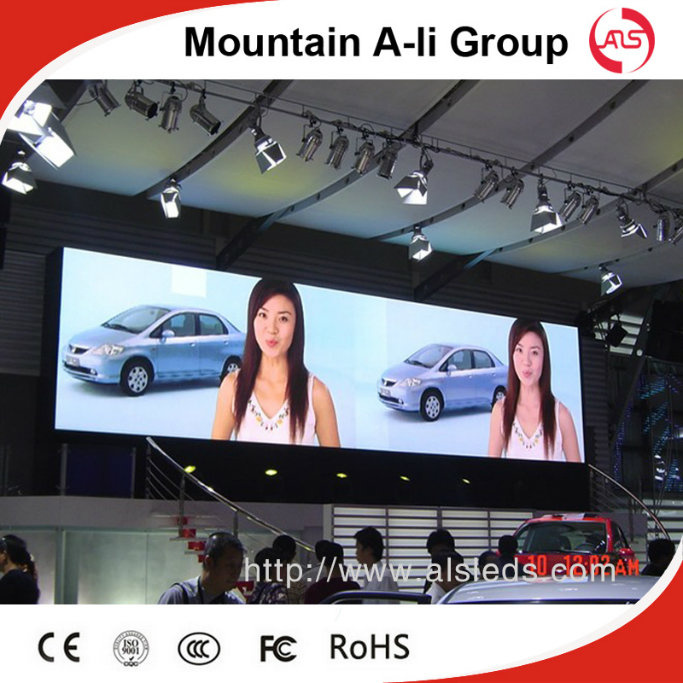

Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoorstadium, and a variety of public facilities and etc.

Our service:
1. Inquiry response time: within 24hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price+ patient after-sales service.
6. Mountain A-Li Group can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display

Trade Terms

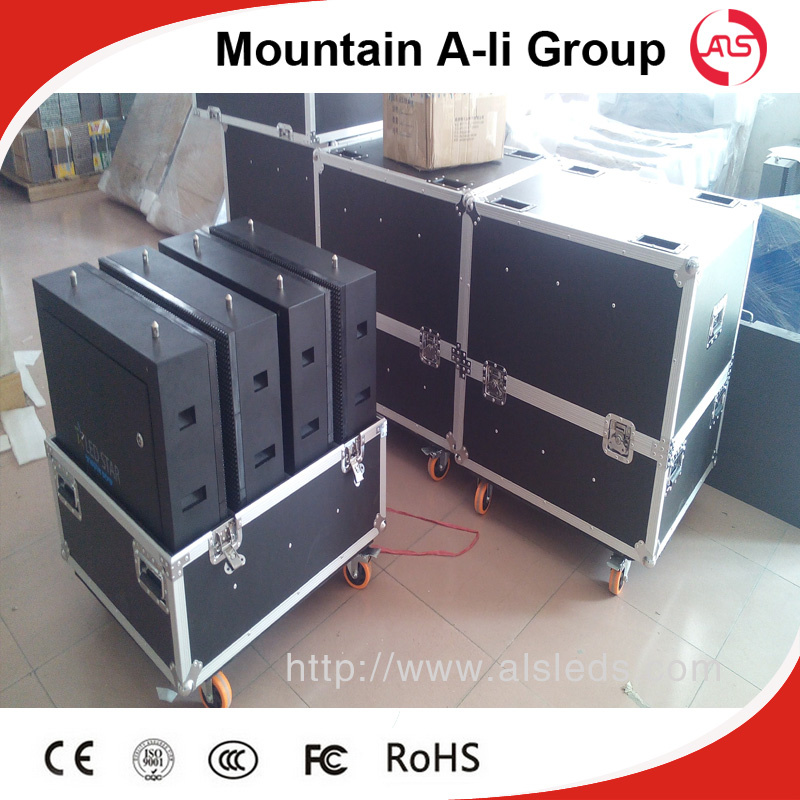

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days




The Technical Parameters
The specifications of modules
Items	Parameter
Product Model	P6 surface mounted module
Module size	192mm*192mm
Pixel pitch	6mm
Pixel density	27777dots/m2
Package mode	SMD3535White LEDS
Module resolution	32dots(W)*32dots(H)
Module maximum power consumption	35W
Module Thickness	2.7CM
Module Weight	0.4kg
Driving method	Constant Current Driving
Scanning method	1/8 scan
Interface	HUB75B
Brightness	≥6000cd/m2
The specifications of cabinets
Cabinet size	768mm x 768mm
Module quantity	16pcs
Power supply	5V/40A 5V/60A
Cabinet resolution	128*128dots
Optimal viewing distance	6M ~ 60M
Optimal viewing angle	160°(W) 120°(H)
RHWorking temperature	(Work :-20 °C~ +50 °C )
System operating humility	10%-95%
The specifications of power supplier
Operating Voltage	AC220V±10%
Average power consumption	350W/H
Maximum power consumption	≤560W/m2
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
Driving device	IC Constant Current Driving
Refresh rate	≥600HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800*600/1024*768/1280*900
