Home LED Light Products High Brightness Large Size LED Slim Light Panel Display

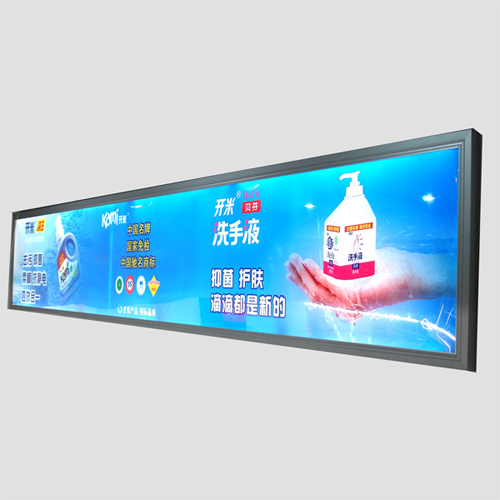

High Brightness Large Size LED Slim Light Panel Display

High Brightness Large Size LED Slim Light Panel Display
Price: US $ 45-60/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 10/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
Snap frame edge-lit LED slim light box(SLP1) has the advantages as space saving, energy saving and easy posting, being an efficient solution for indoor advertising. It is fabricated of high quality scattering light guide plate (LGP) and high luminance SMD LED strip, providing high luminance, uniform brightness, good color rendering, excellent stability.  Snap frame edge light box is extensively used for indoor advertisement and signage.

Technical and performance information
LED strip: SMD 2835 with high luminance, 90 beads/meter.
LGP: Nanometer particle scattering light guide plate from 100% virgin acrylic or optical Polystyrene,
Advantages: easy posting, low cost, good stability for long term use.
Brightness uniformity:  >75%.
Color rendering index: >70%
Maxim lighting width:  1800mm.
Life expectancy: 10 years.
Light sourceSMD 2835CRI>70%
Input voltageAC 100V~240VMaximal lighting width1800mm
Power factor>0.6Life expectancy10yrs
Light efficiency60lm/WBrightness uniformity   >80%

Prod Model: SLP1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Uniformity Of Brightness: 80%
Life Expectancy: 10 Years
Maximal Lighting Width: 1800mm
Water Proof: IP 30
Housing Materials: Aluminum Alloy
Type: Ultra Slim Light Box
Usage: Advertising
Material: Nano LGP
IP Rating: IP54
Shape: Square
Suitable For: Indoor
Installation: Wall-Mounted
Pringting Carrier: Inkjet Film
Style: Modern
Certification: CE
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.

With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.

Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.

From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.

Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.

We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
