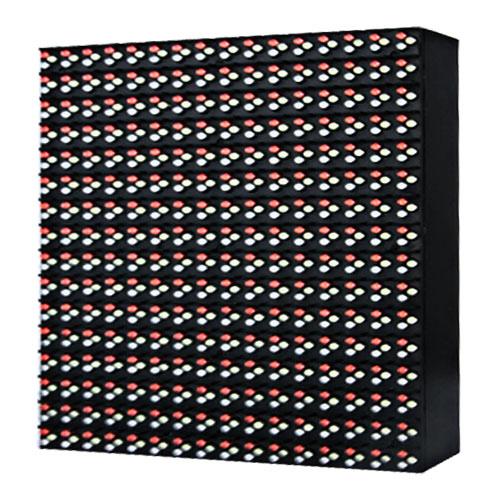

High brightness Full Color Outdoor P12 LED Display
specification:
Part Number |
HERO-ODS4F-2S |
Resolution |
16(H)×16(V) |
Pixel Pitch |
12mm |
LED Configuration |
1R1PG1PB DIP |
Pixel Density |
6944pixels/ m2 |
Module Size |
192*192mm |
Driving IC |
MBI5024 |
Driving Method |
1/2 Scan, Constant Current |
Cabinet Weight |
45/65kg |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
.025mm |
Optical Ratings |
Brightness |
10500cd/ m2 |
View Angle |
110°/70° |
Gray Scale |
16 bits |
Display COLOR |
281 Trillion |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
220V /50Hz 110V/60Hz |
Max. Power Consumption |
780W/m2 |
Average Power Consumption |
312W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60fps |
Screen Refresh Frequency |
>1680Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~90% RH |
Operating Life |
100,000hours |
MTBF |
10,000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Description:
1.High quality,relatively low cost and good after-sale service
2.High contrast,excellent white color balance and light weight
3.High brightness,small pitch,high resolution and perfect vivid image
4.Stable work,minimum noise and advanced test equipment
5.Long Lifespan
6.Play a variety of information like video, word, flash, music, clock, graph
7.Easy to install and dismantle.
Application
LED Full Color Display Screen: because of its super slim and light, it can used in high clear picture, it can be used in every location indoor, such as: super market,, stadium, stage,convention centerAnd it is very convenient to change the pictures of the display.,and it is very quick . Because it has long lifetime, so it spread the information more effectively.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
For more led information about p10 led display moudle with high performance ,welcome to our officer website:www.led-hero.com
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
