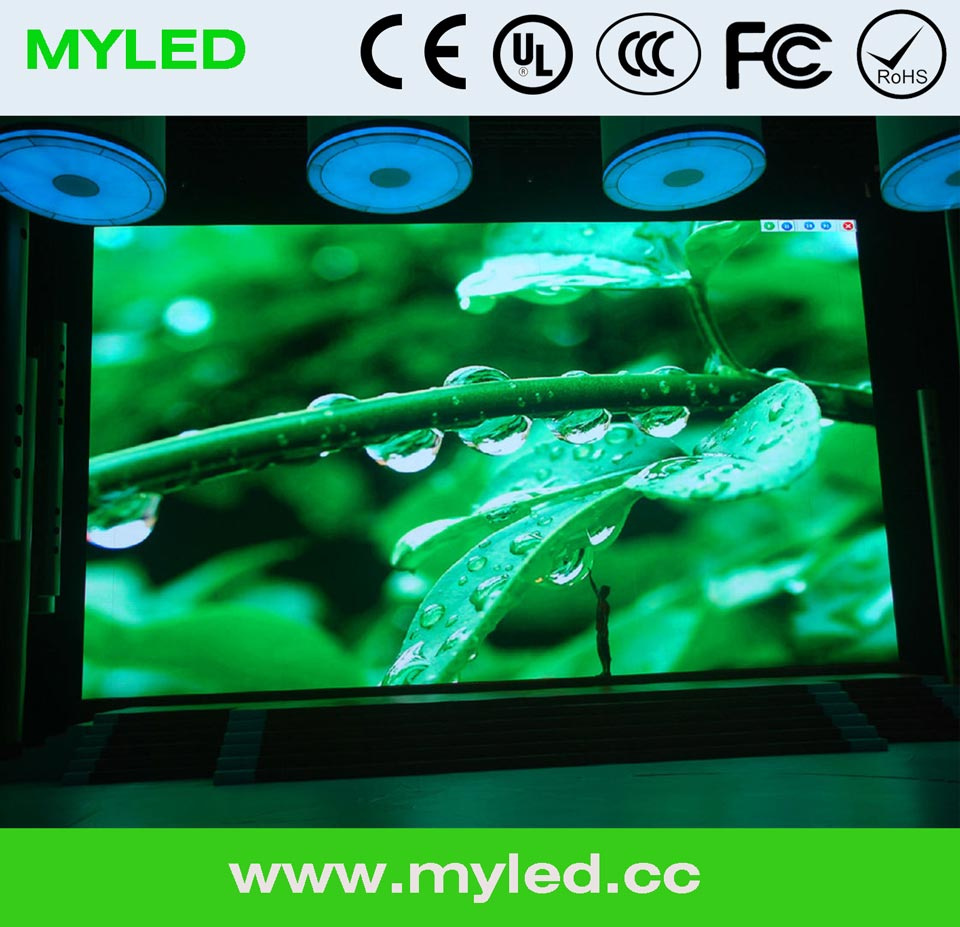

HD1.9 indoor LED display small pixel pitch LED display-HD LED display
HD1.9
Pixel pitch: 1.9 mm
Refresh rate: >2000 Hz
Brightness: 500-1000 nits
Cabinet Size: 320*320*85mm
Cabinet Weight: 4.5kg
SIX High
Drive Technology
High-Precision
Work under 0.5mA constant current, brightness 70-300mcd.
High-Gray Scale
Real 20bit.
High-Energy Saving
Save 66% energy.
High Refresh Rate
2400Hz for 1/32 duty screen, 4800Hz for 1/16 duty screen, 9600Hz for 1/8 duty, 19200Hz for 1/4 duty.
High Reliance
Anti-static 6Kv.
High Frame Frequency
120hz frame frequency working mode.
Excellent Display Effect
HD1.9 has exceptional display quality even when brightness is reduced to 20%.
The so-called seamless, thinnest, super-thin and barely seamless marketing can never change the fact that there are still gaps between cabinets, while Chipshow's fast-connector makes the real seamless splicing possible.
16:9 Design and Good Uniformity
16:9 design. Cabinet's 16:9 resolution is specialized for command center. Perfect replacement for LCD display.
Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.
Modular Design and High Reliability
Modular design. Efficient and low cost installment and maintenance. Patented cooling system, fanless, non-noise, energy-saving and eco-friendly.
High reliability. Redundant N+1 power system, dual signal hot backup. Auto-switch and warn malfunction.
Wide View Angle
Vertical/horizontal: 160°/160°, broadcast-level color gamut, CT and brightness adjustable,more appropiate for long-time watching.
Application places
Ideal for auditorium, conference room, banquet hall and exhibition presentations, traffic, studio, command and monitor system.
--With the smaller pixel pitch of 1.9mm, three vertically arranged of R G B lamp which constitute a single
pixel makes best color performance and the density can reach 275625pixels/;
--With the resolution of 84*84, module size of 160mm*160mm, the structure of combined driver board
ensures the high reliability;
--With larger view angel, soft image, high definition which is suitable for indoor application;
--With the features of high brightness,low attenuation,high reliability and good consistency;
--With the effect of non-granular, better color uniformity, non-mosaic phenomenon;
--With the design of multi-layer circuit board makes the uniform distribution of current distribution, quick
heat dispelling, long life span and high reliability;
--With the black face LED, the contrast ratio is very perfect.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12 working days
Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 1.9mm,84*84dots,160*160*21mm |
| Pixel color, Pixel LED | 1R1G1B, SMD1010 |
| Working voltage,Module Power | DC5V,18W |
| Driving IC,Driving way | MBI5153,1/21 |
| HUB | -- |
| Material,Cabinet Weight(kg/Cabinet) | Cast aluminum,4.5kg/Cabinet |
| Resolution rate,size,Module quantity | 168*168,320*320*85mm,2X2 |
| Density | 275625 Dots/ |
| White balance ,Color temperature | 800CD/,6500K-11000K |
view angel,Non-Flatness,Module interval | H:140°;V:140°,<0.3mm,<0.3mm |
| Maximal power/,Average power/ | 900W/,300W/ |
| Frame frequency,Refresh frequency,Gray grade | 60Hz,1920Hz,14bit |
| Control system,System supports | Novastar / Linsn /,Windows XP,WIN 7 |
Working temperature,Protection grade | -10ºC - +40ºC,Front/Back:IP30/IP30 |
