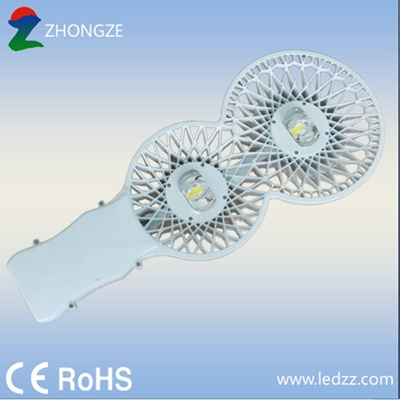

Product name: Good quality 5 years warranty led street light
Product decription:
(1) Material: High conduction Cu-Mg-Al alloy shell, optical glass lens with deep penetration of lighting and high refraction. Integrated high-power led light source module with high-efficiency but low thermal resistance.
(2) Places available: Urban road, pavements, square, school, park, yard, residential district, factory, and other places that need street lighting.
Technological Data |
| Number of light source | 2 PCS |
| Power(W) | 60W-130W |
| Luminaire efficiency | ≥90% |
| Illumination uniformity | >0.5 |
| Color-rendering Index(CRI) | Ra≥65 |
| Temperature of Junction(TJ) | <65° |
| Working environment | Temperature:-40ºC~50ºC Humidity:10%~90%RH |
| Storing Temperature | -40ºC ~+50ºC |
| Protection Grade | IP65 ,IP67 |
| Working lifetime | >50000Hrs |
| Color of the Lamp shell | Blue Bright Silver Milky White |
| Color Temperature(K) | 3000K-6500K |
| Diameter of the pipe for installation | Φ62mm |
| Power Supply Parameters |
| Input voltage | AC85-265V |
| Scope of the frequency | 50~60HZ |
| Power factor(PF) | ≥0.96 |
| Power supply efficiency | 0.88 ~0.95 |
Parameter of led street light
Product model | Light power | Luminous Flux | Beam angle | Light dimension | Net weight | Package dimension |
| LLDZZ082 | 60W | 6000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 70W | 7000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 80W | 8000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 90W | 9000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 100W | 10000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 120W | 12000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
| LLDZZ082 | 130W | 13000lm | 120-140° | 810 * 340 *153mm | 9.7kg | 840*370*200mm |
FAQ
(1) A: What brand of driver of your light?
Q: We use MW driver.
(2) A: What warrany of your street light?
Q: Warranty time is usually 3 to 5 years.
(3) A: Can I get a sample?
Q: Yes, we can supply a sample if you want, and please pay the sample and freight, thank you!
(4) A: What is term of payment?
Q: T/T, 30% deposit, 70% balance before shipment. You can remit the money to our company account or account of alibaba onetouch service
(5) A: What about your delivery time?
Q:Usually our delivry time is 25-30 workdays, we can arrange flexible manufacturing schedule.
Please contact me online or send a message if you are interested in our product, thank you!
SuZhou Zhongze optoelectronics technology Co., Ltd was found in June, 2009, which located in Science and technology Park of WuJiang lies in TaiHu Lake. The company devotes to research and develop productions of high quality high power LED lamps, three series of products obtain independent innovation product of JiangSu province. The products achieved CE, RoHS and other certifications. Our company passed ISO9001 quality management system standards. The company is currently the state small and medium-sized enterprise innovation fund projects, JiangSu Province innovation project, since and technology innovation fund business leaders to undertake the talend project unit. The company cooperates with Fudan University ecectric light source research institute, ZheJiang university state key laboratory of optical instruments, making the technical parameters of the products being the leading level in its area.
ZhongZe optoelectronics is the pioneer in China to put forward and solve the high power LED light source, integrated modular light source, light distribution, heat dissipation and power problems. The company uses air hot cold convection principle of development efficiency via technology has been used in LED lamps heat each link, and adopts integrated module package and precise process two optical light distribution design thoroughly solved the worldwide problems of heat dissipation difficulty and light distribution difficulty, making the TianZe LED lamps continuous running six months with no lumens depreciation and 25000 hours with lumens depreciations below 10% and luminous efficacy of integrated modules reach to 1301M/W, the whole lamp reaches to 1201M/W. Above all, TianZe LED took its place in the front ranks of the world.
For adapting to and meeting the development requirement of LED lighting and domestic and foreign markets, Suzhou TianZe New Energy Technology Co., Ltd came into being in November 2011. Key business areas are: R&D of new energy and solar cell, consulting services of new energy technologies, energy contract management, bio-lighting and urban lighting projects etc. Strengthening energy-saving ideas, increasing investment, integrating energy-saving resource, and improving R&D capabilities and developing new technologies to improve the core competitiveness of the company in the field of energy saving is out most important target.
