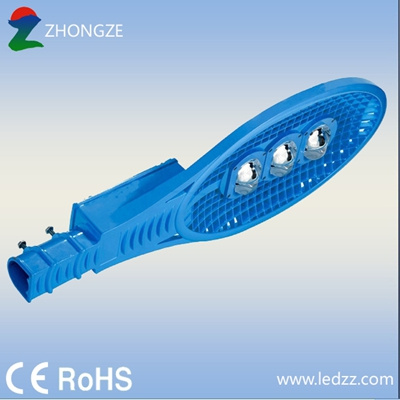

Product name: Innovative led street light 150w
Street light composition: multi-hole shell+ Bridgelux, CREE or ZhongZe brand light source+MW driver+optical lens.
Places available:City road,pavement,square,school,park,courtyard,residential district,factory and other places need street lighting.
Technological Data |
| Number of light source | 3 PCS |
| Power(W) | 120W-160W |
| Luminaire efficiency | ≥90% |
| Illumination uniformity | >0.5 |
| Color-rendering Index(CRI) | Ra≥65 |
| Temperature of Junction(TJ) | <65° |
| Working environment | Temperature:-40ºC~50ºC Humidity:10%~90%RH |
| Storing Temperature | -40ºC ~+50ºC |
| Protection Grade | IP65 ,IP67 |
| Working lifetime | >50000Hrs |
| Color of the Lamp shell | Blue Yellow Bright Silver |
| Color Temperature(K) | 3000K-6500K |
| Diameter of the pipe for installation | Φ62mm |
| Power Supply Parameters |
| Input voltage | AC85-265V |
| Scope of the frequency | 50~60HZ |
| Power factor(PF) | ≥0.96 |
| Power supply efficiency | 0.88 ~0.95 |
Patent light source | Common led light source |
| Common LED light source consists of many pieces of 5mm LED or 1w small LED. And it needs to put hundreds even thousands of leds in series or parallel to realize bigger luminous flux. |
We adopt integrated chip technology on a area of 2.5cm*2.5cm to achieve an effect, that is single led's light is about hundreds watts, luminous flex is more than 10000lm, light efficiency is more than 100lm/w, and work lifetime is above 50000 hours. |
Patent lens | Common lens |
It is more easier to control uniformity with patent lens.
Low light failure, high efficiency of light and energy saving is very abvious |
It is hard to control uniformity with common lens
High light failure, low efficiency of light and energy saving is not obvious |
FAQ
(1) A: What brand of driver of your light?
Q: We use MW driver.
(2) A: What warrany of your street light?
Q: Warranty time is usually 3 to 5 years.
(3) A: Can I get a sample?
Q: Yes, we can supply a sample if you want, and please pay the sample and freight, thank you!
(4) A: What is term of payment?
Q: T/T, 30% deposit, 70% balance before shipment. You can remit the money to our company account or account of alibaba onetouch service
(5) A: What about your delivery time?
Q:Usually our delivry time is 25-30 workdays, we can arrange flexible manufacturing schedule.
Please contact me online or send a message if you are interested in our product, thank you!
Contact person: Alice Zhou
Tel: 86 18662520095
SuZhou Zhongze optoelectronics technology Co., Ltd was found in June, 2009, which located in Science and technology Park of WuJiang lies in TaiHu Lake. The company devotes to research and develop productions of high quality high power LED lamps, three series of products obtain independent innovation product of JiangSu province. The products achieved CE, RoHS and other certifications. Our company passed ISO9001 quality management system standards. The company is currently the state small and medium-sized enterprise innovation fund projects, JiangSu Province innovation project, since and technology innovation fund business leaders to undertake the talend project unit. The company cooperates with Fudan University ecectric light source research institute, ZheJiang university state key laboratory of optical instruments, making the technical parameters of the products being the leading level in its area.
ZhongZe optoelectronics is the pioneer in China to put forward and solve the high power LED light source, integrated modular light source, light distribution, heat dissipation and power problems. The company uses air hot cold convection principle of development efficiency via technology has been used in LED lamps heat each link, and adopts integrated module package and precise process two optical light distribution design thoroughly solved the worldwide problems of heat dissipation difficulty and light distribution difficulty, making the TianZe LED lamps continuous running six months with no lumens depreciation and 25000 hours with lumens depreciations below 10% and luminous efficacy of integrated modules reach to 1301M/W, the whole lamp reaches to 1201M/W. Above all, TianZe LED took its place in the front ranks of the world.
For adapting to and meeting the development requirement of LED lighting and domestic and foreign markets, Suzhou TianZe New Energy Technology Co., Ltd came into being in November 2011. Key business areas are: R&D of new energy and solar cell, consulting services of new energy technologies, energy contract management, bio-lighting and urban lighting projects etc. Strengthening energy-saving ideas, increasing investment, integrating energy-saving resource, and improving R&D capabilities and developing new technologies to improve the core competitiveness of the company in the field of energy saving is out most important target.
