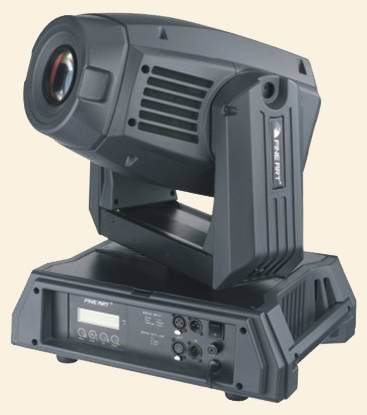

Fine700 Spot Moving Head Light

31/23 controlling channels
OSR HTI 700W/D4/75 lamp, parabolic glass reflector
Liquid-crystal display allows setting up customized function
CMY\CTC with DOT and pectination structure and stepless color mixing system
1 static color wheels with 6 colors plus white and high/low color temperature, 3200K-6000K with rainbow effect, and the color filters are changeable
1 indexical rotating gobo wheel includes 6 glass or metal gobos with shake effect
1 static gobo wheel with 9 changeable metal gobos as well as stream and shake effect
1 effect wheel, rotating 3-facet prism
0-100% electric linear dimmer, strobe as 1-13 flash per second, inside with strobe macro function
Electric iris inside with iris macro function and 5-100% linear adjustment on beam

Electric focusing 14° To 30°
Focusing: 2 meters to infinity
540° Pan with 8 or 16 bit resolution, each micro step 0.014°
246° Tilt with 8 or 16 bit resolution, each micro step 0.014°
Automatic Pan and Tilt repositioning by photoelectric repositioning system if accidentally knocked out of place
DMX512 signal receiving pilot lamp
Superheat protection
Switch mode power supply, electronic ballast, power factor is 0.99, supports power saving mode and warm boot function, wide range of working voltage
Voltage: AC90V-120V/200V-250V, 50Hz-60Hz
Power: 950W (APFC Electronic ballast)
When the dimmer is off, the power saving function works, or when all of CMY color filters are shuttered, the lamp consumption can be reduced by 50% automatically, extending the lamp service life and improving fixture's stability
Dimension: 464mm× 362mm× 647mm
N. W: 32Kg
Up to CE standard, UL standard and GB7000.15-2000 standard
Lamp working timer, makes the lamp using status known
