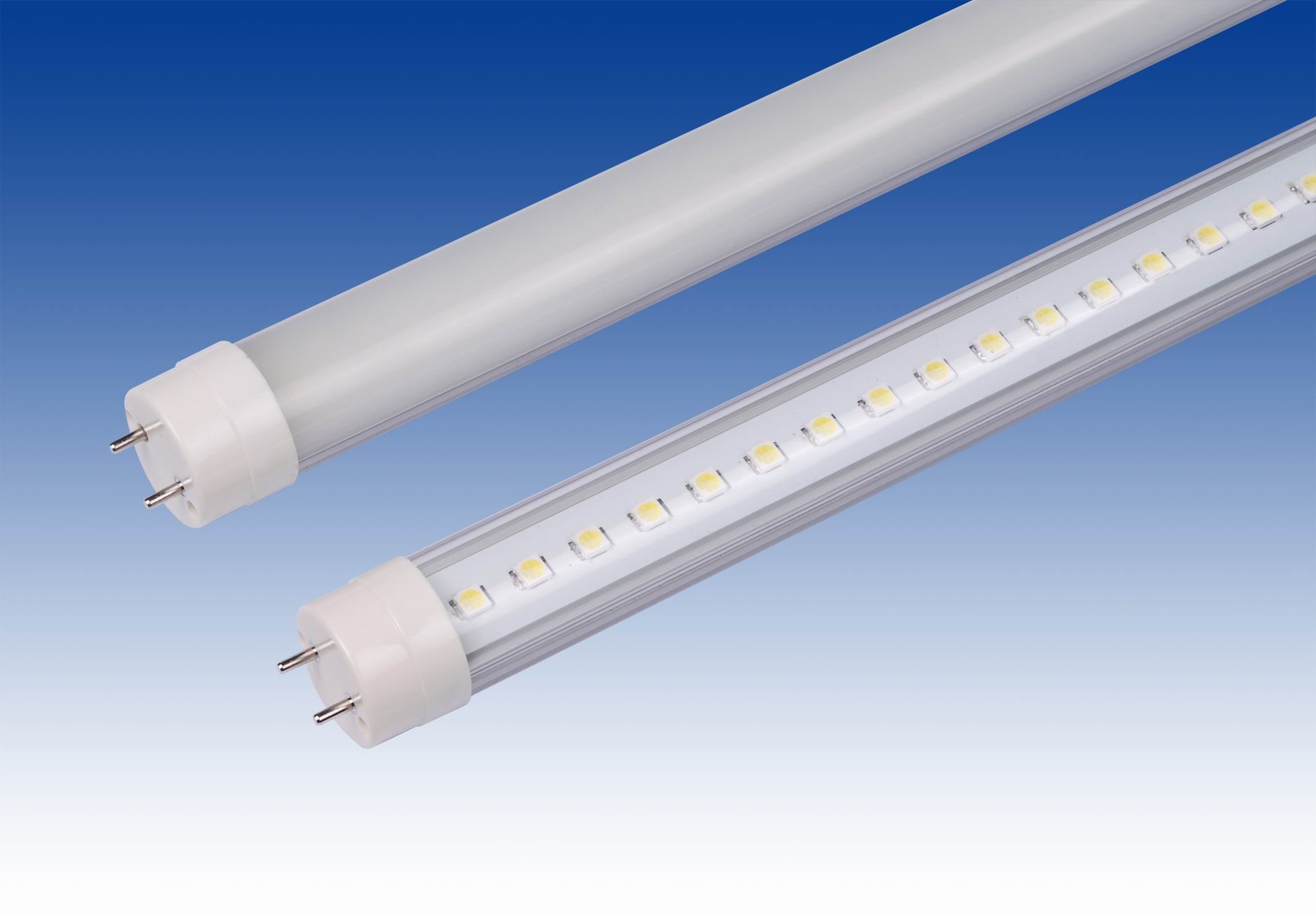

Features of energy saving T8 series LED tube lights:
1. The LED tubes use aluminum alloy and PC cover as the housing, lead a high efficiency lighting, transparent cover and frosted cover available.
2. LED components are capsulated by ourselves with Bridgelux Chips, to ensure good quality control.
3. High efficiency, energy saving up to 70% compared with traditional light
4. Long working life, up to 50000hrs
5. Green lighting, energy saving, environmental friendly, no UV or IR radiation.
6. CE, RoHS compliance.
7.2 years warranty.
Application of LED Tube Lights:
1. Residential Buildings, Home
2. Office, Meeting Room
3. School, Library
4. Factory, Warehouse
5. Hotel, Casino
6. Parking Garage
7. Hospital
8. Commercial Center
9. Supermarket, Shopping mall
Specification of T8 LED Tube Lights:
|
Model No. |
Tube Type |
Voltage |
Frequency |
LED Type |
CCT |
Power |
LED Qty |
Length |
Luminous Flux |
|
CHA6W-T8-103-6W |
T8 Tube |
AC100-240V |
50-60HZ |
SMD3528 |
4000-4500k(warm white); 6000-6500k(pure white) |
6W |
120pcs |
600mm |
> 420lm(warm white);
> 500lm(pure white) |
|
CHA6W-T8-102-8W |
8W |
144pcs |
600mm |
> 500lm(warm white);
> 600lm(pure white) |
|
CHA6W-T8-101-10W |
10W |
144pcs |
600mm |
> 580lm(warm white);
> 700lm(pure white) |
|
CHA12W-T8-103-18W |
18W |
288pcs |
1200mm |
> 1150lm(warm white);
> 1420lm(pure white) |
|
CHA12W-T8-104-20W |
20W |
288pcs |
1200mm |
> 1300lm(warm white);
> 1600lm(pure white) |
|
CHA15W-T8-103-25W |
25W |
360pos |
1500mm |
> 1625lm(warm white);
> 2000lm(pure white) |
|
CHA15W-T8-104-30W |
30W |
420pcs |
1500mm |
> 1950lm(warm white);
> 2400lm(pure white) |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
