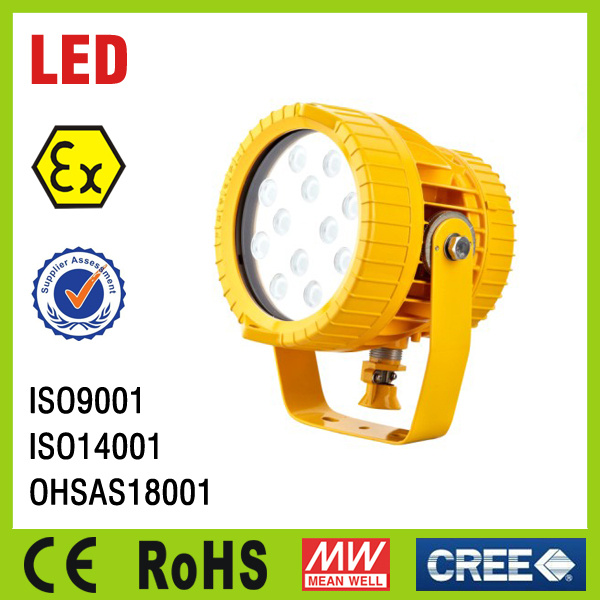

explosion proof led spotlight
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Application
It is the ideal lighting solution for all kinds of indoor or outdoor night work tasks in the inflammable environment.
Characteristics of performance

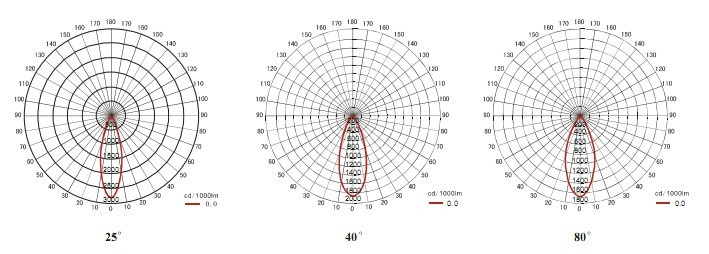

1)Customer can choose the 25°or 40°or 80°as the beam angle according to the application.
2)The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
3)The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
4)It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
5)Equipped with Taiwan Meanwell top brand LED driver, ensuring the lamp have a stable performance.
6)The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
7)The lamp is flame proof type of protection, designed for use in harsh environment or explosive application.
| Input voltage | AC90~264V |
| Output voltage | DC36~48V |
| Frequency | 47~63Hz |
| Anti Corrosion Grade | WF2 |
| Insulation Grade | I |
| Screw Thread | G3/4″ |
| Leading-in Cable | Φ8mm~Φ14mm |

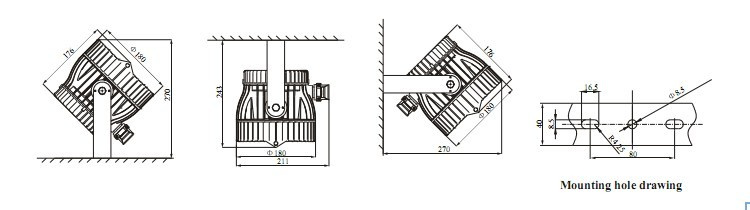

| Size | 242×Φ200×320mm |
| Net Weight | 4kg |
| Model No. | Beam Angle | Light Source | Rated Wattage | Light Output
(Lumen) | Equivalent to |
| Metal Halide Lamp | Electrodeless Lamp | High Pressure Mercury Lamp |
| BC9501-L25-25° | 25° | LED | 25W | 3300Lm | 70W | 60W | 80W |
| BC9501-L25-40° | 40° |
| BC9501-L25-80° | 80° |
| BC9501-L40-25° | 25° | LED | 40W | 5412Lm | 100W | 100W | 125W |
| BC9501-L40-40° | 40° |
| BC9501-L40-80° | 80° |
| BC9501-L60-25° | 25° | LED | 60W | 6996Lm | 150W | 135W | 175W |
| BC9501-L60-40° | 40° |
| BC9501-L60-80° | 80° |
| Prod Model: |
BC9501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life: |
100000h |
| Power Source: |
AC |
| Electric Current Type: |
DC |
| Usage: |
Tunnel |
| LED Chips: |
CREE |
| IP Rating: |
IP66 |
| Emitting Color: |
Cool White |
| Certification: |
CE |
| Input Voltage: |
90-264 |
| Power: |
30W, 40W, 60W |
