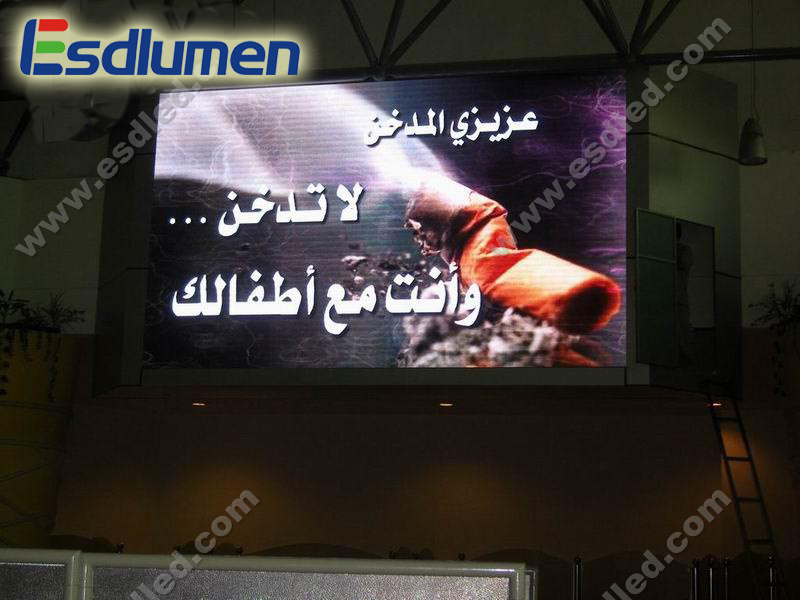

Indoor rental fullcolor LED display screen
LED display screen integrated with information technology, through long life, high working efficiency, etc. It leads up the whole display industry with high increase rate, which has applied to everywhere, With clear, smooth, fast digital-analog converter ability, it is appreciated by financial, Securities, station, airport, supermarkets, etc; Even stadium, the venue of the match information, live broadcasting also show special preference; Moreover the instructions sign on highway, speed control Indication must live with LED display, meanwhile, it is inseparable from the LED display screen to the unique features; Performance, assembly, advertising, etc. Its application brought a visual revolution. LED display screen has penetrated everywhere, become a indispensable partner among us.
|
PH7.625 Full color specs |
|
Pixel Size |
7.625 mm |
|
LED Configuration |
1R, 1G, 1B |
|
LED Density |
17, 200dots/ m 2 |
|
Dimension |
Length: 976mm Height: 732mm Width: 150mm |
|
Resolution of Cabinet |
128 * 96 = 12, 288 |
|
Luminance |
> 1, 300 CD/ m 2 |
|
Power Consumption |
Max: 700W/ m 2 Average: 280W/ m 2 |
|
Hor. Viewing angle |
140° |
|
Vert. Viewing angle |
140° |
|
Ruggedness |
IP43 |
|
Temperature |
Operating: -40° - 60° Storage: -40° - 80° |
|
Operating humidity |
10-99% |
|
Storage humidity |
10-99% |
|
Certifications |
FCC, CE, RoHS |
|
Gray scale |
> 4, 096 |
|
Driving method |
1/8 Scanning |
|
Life time |
> 100, 000 hours |
|
Warranty period |
2 year |
|
Control mode |
Synchronization or Asynchrony |
|
Effective control distance |
120m (without relay), 15Km(optical fiber) |
|
System operating platform |
Windows 2000/XP |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
