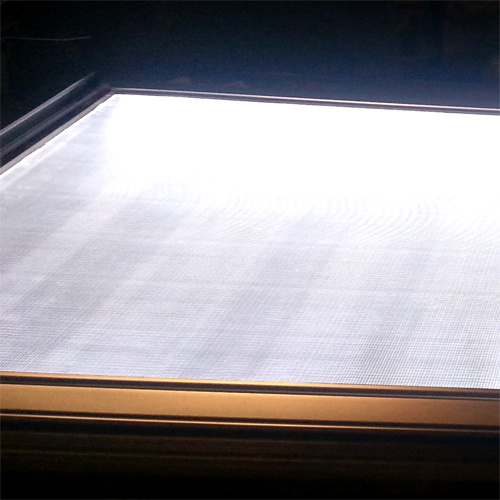

LGPS2 is engraved mesh pattern polystyrene light guide panel made of high quality optical grade GPPS. It combines characteristics such as high luminance, low cost, high stability and long life span, being extensively applied for LED edge light super slim light box and signage.
Technical and performance information
Model: LGPS2
Advantages: Engraved Light guide panel with surface mesh pattern, high luminance, good stability, freewill processing, convenient application, low cost and good color rendering property.
Maxim lighting width: 1200mm
Brightness uniformity: >70%
Raw material: heat resistant optical grade GPPS
Temperature of thermal deformation: 108 degree
Thickness tolerance: 0.05mm
Original size: 1200X2400mm, 1200X1830mm
Customized size: available, customized size products MOQ 100 PCS.
Application: LED edge light slim light box, edge light panel
Thickness and recommended lighting width
| Thickness (mm) | Lighting width (mm) |
| 2~3 | 0~900 |
| 4 | 800~1200 |
| 5 | 1000~1200 |
