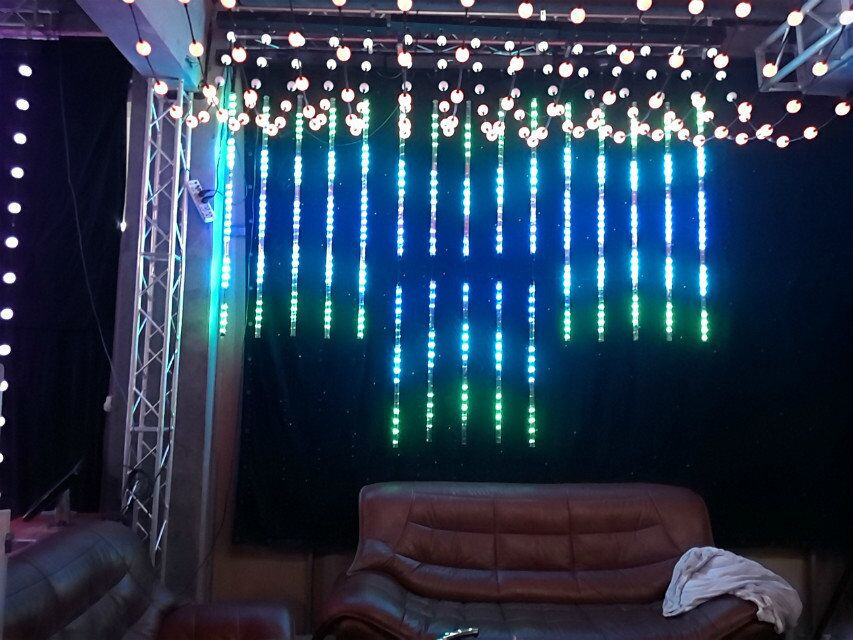

Led pixel tube
Product description
1)LED Pixel Tube Series information
Parameter
Type | PT-321 | PT-322 | PT-323 |
| Length | 1000mm | 1500mm | 2000mm |
| Tube diameter | 28mm |
| Working Voltage | DC12V |
| Light source | SMD5050 LED RGB Tri-Color 32*2=64 pcs |
| Beam/View angle | 120 degrees/360 degrees |
| Pixel point / pitch | 32 / 30mm | 32 / 45mm | 32 / 59mm |
| Tube material | PC |
| DMX Channel | 96 DMX Channels |
| Tube color | Clear, Bellows, Milky |
| Power | 15W |
| Weight | 250g | 320g | 430g |
Controller information
Type : KB-200
Power supply : AC100v~240V,50HZ/60HZ
Power : 120w
LCD Display Control panel
Connector : Tube / Ball selected
Operation Mode : automatic,M-S, DMX
DMX channels : 8CH/450CH(Pixel tube)
150CH/225CH/300CH/375CH/450CH(Pixel Ball)
2m 3m 4m 5m 6m
Both DMX and Art-Net control protocol supported
Both Artnet and Kling Net Protocol
Auto Mode : built-in 30 programs with execution speed adjustment
Master/slave mode : for synchronized operation of more units linked in a chain
Driver Bar material : aluminium/Black
Dimensions : 1000*82*65mm (W/H/D)
Weight : 2.28kg
Set weight : 5.2kg
Type : KB-400
Power supply : AC100v~240V,50HZ/60HZ
Power : 120w
LCD Display Control panel
Connector : Tube / Ball selected
Operation Mode : automatic,M-S, DMX
DMX channels : 8CH/450CH(Pixel tube)
150CH/225CH/300CH/375CH/450CH(Pixel Ball)
2m 3m 4m 5m 6m
Both DMX and Art-Net control protocol supported
Both Artnet and Kling Net Protocol
Auto Mode : built-in 30 programs with execution speed adjustment
Master/slave mode : for synchronized operation of more units linked in a chain
Driver Bar material : iron/Black
Dimensions : 300*62*250mm (W/H/D)
Weight : 1.5kg
APLICATION
mobile dj , stage backdrop decoration ,wedding,holiday , all kind of events and show ,tv station , etc .
ADVANTAGE
1.SMDLEDS 3IN1/RGB mixing 7color
2.Pure and longer life (50000~100000)
3.small volume and light weight
4. easy connectiona and combination
5. easy installation and transportation
Payment terms & Shipment
Payment terms
1. T/T, Western Union, PayPal;
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Samples: Can be ready in 3-7 working days once payment received.
Shipping
1. FedEx/DHL/UPS/TNT for samples,Door-to-Door;
2. By Air or by Sea for batch goods,for FCL;Airport/ Port receiving;
3. Lead time:3-7 days for samples;5-25 days for batch goods after order confirmed.
Our Services
1)Once we received your inquire ,we will reply you at first time .
2)Customzied design is availble ,we are a specialized do OEM factory for big international brand companies.Our manufactory holds varieties of design patents in China ,we understand customers's demands ,won customer's widely recognized .
3)We will provide you a competitive prive with high quality product ,of course with best service.
FAQ
1:How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If we have samples in stock, we will send it right away once sample payment confirmed. If nosample in stock, usually it takes 3 working days, and the clients need to cover the shipping cost.
2:OEM Available?
YES! We have professional engineering team in led design and manufacturing. Just advise us every details for manufacturing so that we can make a sample for your confirmation.
Regarding the delivery time of OEM SAMPLE, it depends on how complicated it is, normally takes 3-15 days.
3:What about the lead time for mass production?
For small order, 3-7 working days; for big order 3-15 working days.
4: How long will you keep your offer opens ?
One month
5:How about I had never buy product from China?
We will guide you step by step, we can help to calculate all the possible cost for you. Our shipping forwarder will also insist you on your port side.Quick Details
Guangzhou Kone LED CURTAIN manufacturer is specialty engaged in different series of LED curtain design, development, production, sale and serves a body enterprise. with more than 30 stuff and 2000 square meter workshop. It is located in tang ge industry park of Baiyun district which is 30 mins drive from Guangzhou baiyun international airport and railway station.
Since 2008, Kone light has established its own brand KONE and stepped into international market. We bring in advanced management concepts from abroad, employ high-quality specialists in stage light field, who works in new product design and development.
Our main product is LED star curtain, vision curtain, RGB star curtain, which have been widely applied in all kinds of party, live show, concert, wedding, TV station, mobile DJ, night club and special events etc. All our products have passed the international authority of SGS and CE certificate, also fire proof certificate.
Nowadays, 80% of the products export to different countries all over the world. We already have built longterm business relationship with our agents in European and America.
Thanks to our valued customers support, and our continues efforts. KONE light gain good reputation in stage light field and grows up day after day. We moved to new industry park in August 2010, the new company is far bigger and beautiful than before.
Facing Increasingly competitive market, we will focus on establishing a sound mechanism of selection, appointment, management and supervision, improving the system of training and educating employees, providing a clear path for succession. Meanwhile, we will take the quality control seriously, training the quality control stuff constantly.
Our motto is cooperation, personaly, goals, details, innovation, share. Our Aim is to be NO. 1 in LED curtain field of the whole world, and we will try our best to realized this goal within a few years.
From concept to reality is our watchword in 2011, more and more new amazing LED curtains will be churned out soon in the new year.
Kone light is looking forward to working together with all the old and new valued customers and steeping into a new happy paradise.
