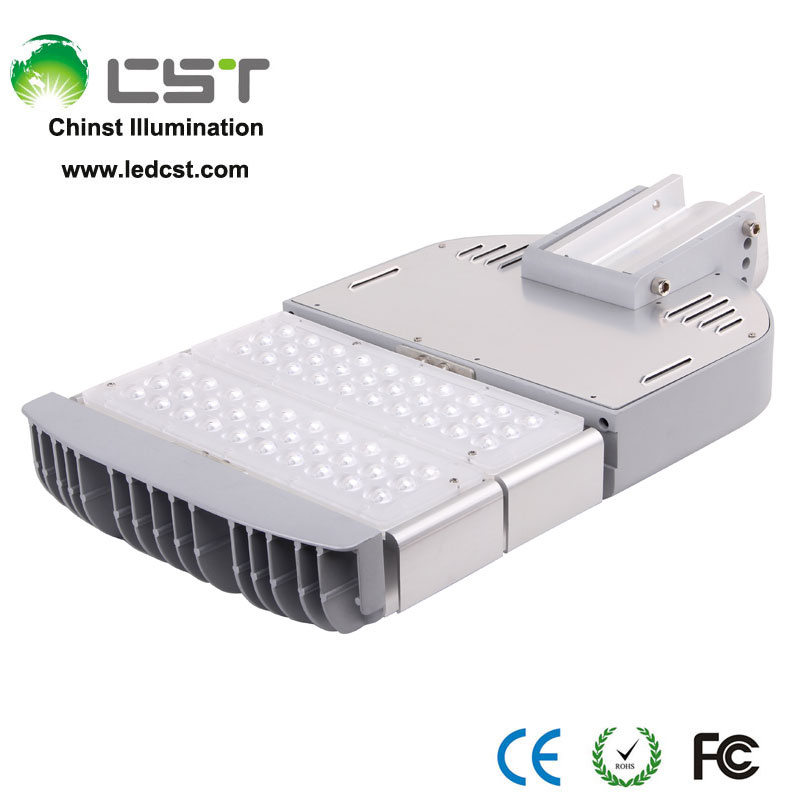

CE,ROHS energy saving IP67 60W high power LED Street light
Product of adavantages:
1, CST LED street light adopts advanced Bridgelux 45mil LED chip as its lighting source, its Luminous Flux can reach 90lm/W,
2, Pure Aluminum shell and excellent thermal conductivity design ensure its high performance in cooling heat aspect;
3, Super stable: Long time burning before shipment, IP65 / 66 /67 Waterproof protection, Ideal for outdoor use,
4, Built-in LED Driver with IC ensure its stability of light, it can work efficiently under AC85-265V,
5, Breakage resistance: Solid LED lighting source,and not easy to damage.
Innovation Points of 60W high power LED Street light:
Adopts the whole aluminum lamp cooling technology, perfect efficiently,
Solve the problem of heat dissipation, greatly extend the life of the lighting source,
Free of dust, waterproof design,reduce the pressure of cleaning, maintenance,suitable for outdoor envirnment,
Prospective ultra-thin patent appearance structure design,convenient in maintenance in store and transportation.
Protection grade reaches ip65,ip66,ip67 for option,
Shell and anodic oxdation treatment of the lacquer that bake, strong corrosion resistance,
The whole lamp uses solid aluminum material based on the rigorous thermal simulation and test, air duct was optimized by using innovative modular fins group, radiators, LED Lighting source,zero distance contact with the whole lamp cooling technology, the perfect solution to LED heat dissipation problem.
Series of 60W high power LED Street light:
| Wattage | LightingSource | Lumens | CCT | Rated life | N.G/PC | IP Rating |
| 60W | 2 module bridgelux | 5400lm | 2700-6500K | 50,000Hrs | 5,8KG | IP65/66/67 |
| 90W | 3 module bridgelux | 8100lm | 2700-6500K | 50,000Hrs | 7,4KG | IP65/66/67 |
| 120W | 4 module bridgelux | 10800lm | 2700-6500K | 50,000Hrs | 8,5KG | IP65/66/67 |
| 150W | 5 module bridgelux | 13500lm | 2700-6500K | 50,000Hrs | 9,8KG | IP65/66/67 |
| 180W | 6 module bridgelux | 16200lm | 2700-6500K | 50,000Hrs | 11,5KG | IP6566/67 |
| 210W | 7 module bridgelux | 18900lm | 2700-6500K | 50,000Hrs | 13,8KG | IP65/66/67 |
| Input Wattage | Input Voltage | Replacement | THD | Power Factor | Size/CTN | Opeation Temperature |
| 60W | AC85-265V 50-60Hz | 150W Matel Halide / HPS | <90% | >0,9 | 540*340*180/CTN | -40~45degree
|
| 90W | A85-265V 50-60Hz | 250W Matel Halide / HPS | <90% | >0,9 | 620*340*180/CTN | -40~45degree |
| 120W | AC85-265V 50-60Hz | 350W Matel Haide / HPS | <90% | >0,9 | 710*340*180/CTN | -40~45degreee |
| 150W | AC85-265V 50-60Hz | 400W Matel Halide / HPS | <90% | >0,9 | 800*340*180/CTN | -40~45dergree |
| 180W | AC85-265V 50-60Hz | 550~600W Matel Halide / HPS | <90% | >0,9 | 880*340*175/CTN | -40~45degree |
| 210W | AC85-265V 50-60Hz | 750~800W Matel Halide /HPS | <90% | >0,9 | 970*340*175/CTN | -40~45degree |
Electrical data:
Rated Wattage: 60W
Input Voltage: AC85-265V 50-60Hz
Rated Power Factor: >0,93
Power Efficiency: >0,9
Humidity: <90%
Replacement of Conventional Lamp: 200W HPS,
Protection grade: IP65/66/67 for option,
Material for light: High pure Aluminum.
Light Technical data:
Lighting source: Bridgelux LED chip,
Luminous Flux: 5400lm.
Color temperature:2700-3300K Ww, 4000-5000K Nw, 5300-7000K Cw,
Color redening index Ra: Ra>70/ Ra>80 for option,
Distribution of the light: LED + Secondary distribution of light reflector,
Start time: 0S
LED Emmiter life: 50000Hrs,
Applications of 60W high power LED Street light:
Widely used for secondary main road,branch, estate,park, industry zone, community,highway,regional road,municipal street,gas station, parking lot and other needs of outdoor lighting.
