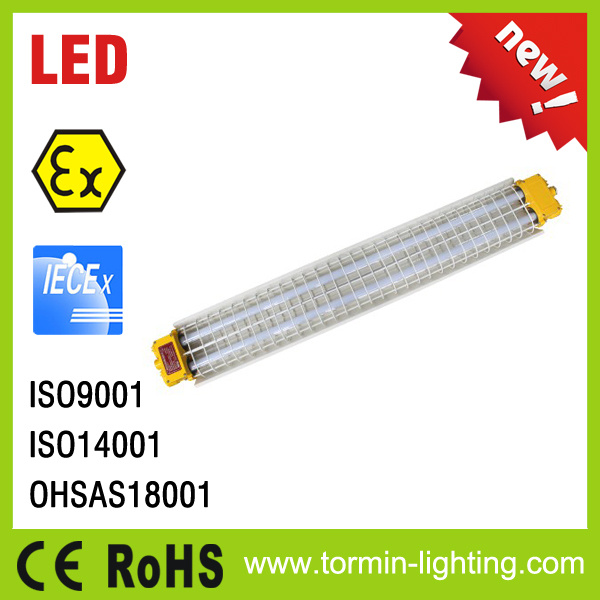

energy saving fluorescent explosion-proof led gas station light
Application
1.This kind of explosion proof light can be widely used in petroleum, chemical, terminals, ports, aerospace,aviation, military, processing and other places.
2.Harsh environment, moist area.
3.Gas explosive environment : Group IIA, IIB, IIC
4.Zone 1, Zone2; Zone 21, Zone 22
5.Temperature class: T1 to T6
Characteristics
1.ceiling, pole, wall mounting type.
2.Equipped with world brand light source, electrical appliance.
3.Products using flameproof increased safety structure, easy to install with separate wiring chamber, meet the latest requirements of explosion proof lighting, safe and reliable operation in explosive hazardous areas.
4.Light housing made of aluminum alloy, high strength, stainless steel exposed fasteners not color, not rust, can prevent rain.
Technical Specification
Model number | BC5401-L2x20 | BC5401-Y2x28 |
Input voltage (V) | AC 90~240V | AC 220~240V AC 110V |
Rated voltage (V) | AC110V AC115V AC120V AC127V AC220V AC230V AC240V |
Input frequency (Hz) | 50/60 | 50/60 |
Rated power (W) | 2x20 | 2x28 |
Light source | LED | T5 fluorescent lamp |
Luminaire effect (lm/W) | >90 | >70 |
Color temperature (K) | 5300~6000 | 4000 |
Color rendering index (Ra) | >70 | >70 |
Service life (h) | >50000 | >20000 |
Ex code | II2GD Ex de IIC T6 Gb Ex tb IIIC T80 Db |
Anti corrosion grade | WF2 | WF2 |
Protect grade | IP66 | IP66 |
Factor | >0.95 | >0.95 |
Total harmonic current | <15% | <15% |
Housing highest surface tempera ture (ºC ) | <80 | <80 |
Weight (kg) | 12 | 12 |
Mounting angle | 360° | 360° |
Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.
In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.
The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.
The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.
With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
