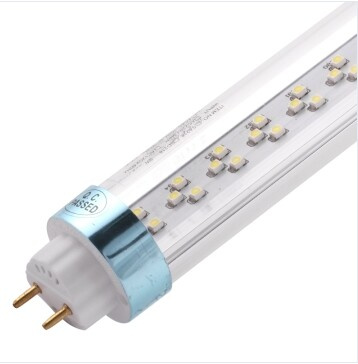

PRODUCTION DESCRIPTION:
1. Light source: SMD2835 everlght LED Chips
2. Dimension: D26* L580/600/900/1200/1500mm
3. Input voltage: AC 85V-165V, AC 165V-265V, AC85V-265V(full-range)
4. Working frequency: 50/60Hz
5. IP: 60
6. Power: 9W, 12W, 18W. 22W, 25W.
7. Tube PC lens: Transparent/stripe/frosted
8. Life-span: 50, 000 to 80, 000 hours
9. Warranty Duration: 3 or 5years
10. Available color: Pure white/warm white/cold white
11. Working temperature: -20 to +50 degrees Celsius
12. Material: Aluminum in the back/PVC as cover
13. Viewing angle: 120 to 135 degrees
14. Light decay: 1% after 5, 000 hours
15. Base: G13
Note: Any colors are available (red, blue, orange, green, yellow and more)
FEATURES:
1. No UV, No mercury or hazardous materials, environment friendly
2. No flickering, very short start time
3. Ideal replacement for the traditional T5/T8/T10 fluorescent light and no need for electronic ballast.
4.3-5years warranty, longer than most other suppliers.
5. Highest brightness Everlight LED chip, which is imported from Taiwan and get 100-110lumens/watt.
6. Rubycon capacitor which is famous from Japan. Italian ST IC.
7. Own patent-210deg slope and vents on lamp holder, this helps us slove heat problem 100%.
8. Newest design. WiFi control system. We do can control our LED tube with iPhone, iPad, Windows system
9. Saves 60% power consumption compared with the fluorescent light
10. Certification CE/RoHS/FCC/UL
APPLICATION
1. Indoor decoration
2. School/universities/hospital
3. Conference/meeting room, show room
4. Commercial complex
5. Factories/offices
6. Supermarkets
7. etc.
Advantage:
1. Top quality Brand 288PCS2835 SMD LED, Taiwan Everlight (10*23mil with 8lumen/LED)
2. Protective current design 17Am and high efficiency 100-110lumen/w(20Am Everlight B5 LED )
3. Patented isolated LED driver with VDE, TUV, UL. CE, RoHS, 50000hours life-span (-20 to 40degree)
4. Unique design for heat sink. Make sure AMB LED tube working temperature less than 40degree
5. Top LED + Super quality driver +technical protect function+ artistical design+ experienced staffs=3-5 years warranty time
6. High performance: PF>0.97. THD<10%, CRI>80ra. Beam Angle=132degree, S/P ratio=19. LUX(1M)-805, EU Energy label classification: A
7. Newest EU standard, sigle-side power in, 100% safety
8. AMB Guanrantee during the first 3years ( free change +free shipping +free repair ) for our LED tube
WHY AMB?
1. Manufaturer -competive price and good qulity, and well-known after-sale service!
2. Experienced technical staff, advanced equipment, experienced R&D dept.
3. OEM/ODM accepted, clients' special requirement accepted
4. Large scale production lines, strong production capability
5. Unique design, No matter what product and solution you need, just give us your emails or calls,
6. Our dedicated sales and tech support team will be happly to hear from you.
7. Guarantee/Warranty: 3 or 5year.
Our promises:
1. High quality, competetive price and considerate service
2. Streamline the buying and paying processes, Easy business.
3. Door to door delivery with speed and precision all over the world.
4. Professional, Experienced Ensure the excellent quality of our products
Payment terms:
L/C, T/T, Western Union, Paypal ect.
Packing & Delivery:
1. Packing: Standard cartoon or Packing as customer's requirement
2. Delivery Time: Within 7 working days for samples, 15 workdays for big order
Shipping options:
1. By express: Such as DHL, UPS, TNT, FedEx ect.
2. Air Freight: When you order moer than 100kg which will be more economical than express
3. Sea freight: Shipping by SEA is available after customer provide destination port.
4. Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.
|
Model |
Length |
Diammeter |
Power |
LED QTY |
Colour Temperature |
PC lens |
Flux(lumen) |
LUX(1M) |
|
SA118 |
580mm |
F30.0 |
9W |
144pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
864 |
290 |
|
Stripe |
830 |
260 |
|
Frost |
790 |
230 |
|
SA218 |
600mm |
F30.0 |
9W |
144pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
864 |
290 |
|
Stripe |
830 |
260 |
|
Frost |
790 |
230 |
|
SA318 |
900mm |
F30.0 |
13W |
216pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
1296 |
360 |
|
Stripe |
1240 |
330 |
|
Frost |
1200 |
300 |
|
SA418 |
1200mm |
F30.0 |
18W |
288pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
1728 |
470 |
|
Stripe |
1690 |
450 |
|
Frost |
1660 |
430 |
|
SA518 |
1500mm |
F30.0 |
22W |
359pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
2154 |
510 |
|
Stripe |
2100 |
480 |
|
Frost |
1970 |
450 |
|
SA528 |
1500mm |
F30.0 |
25W |
396pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
2376 |
530 |
|
Stripe |
2350 |
500 |
|
Frost |
2300 |
470 |
|
SA538 |
1500mm |
F30.0 |
28W |
480pcs |
2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K |
Transparent |
2850 |
628 |
|
Stripe |
2850 |
596 |
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
