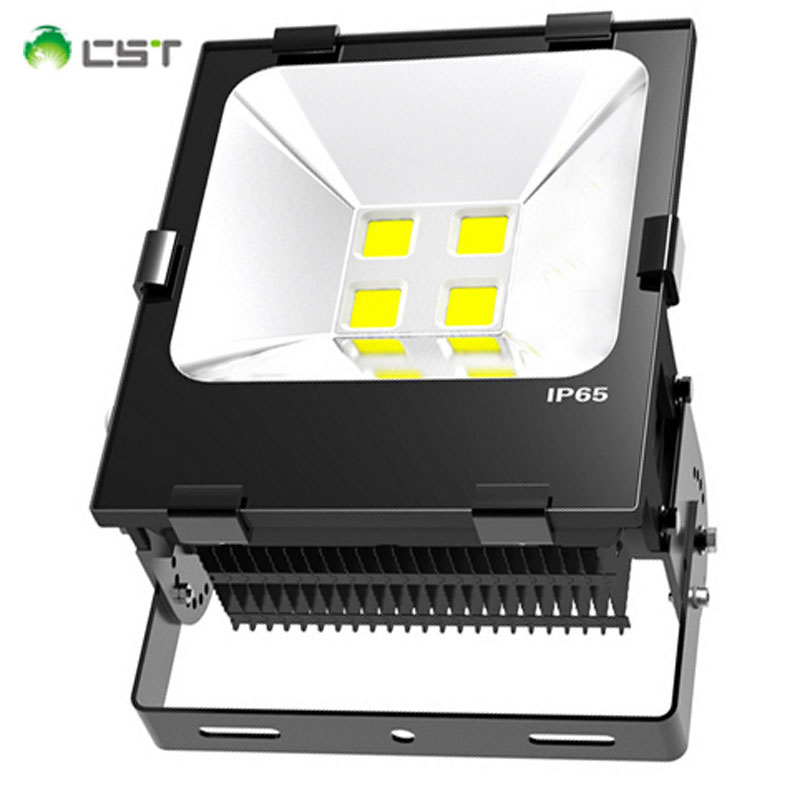

Outdoor Flood Lights
Main feature
1, 150W led flood light
2, Bridgelux 45mil LED for COB LED;
3, Taiwan Meanwell driver;
4, reach 110lm/W
5, far lighting distance
6, 3year warranty
7, lifespan more than 50, 000hours
Product Features
1) 150W LED Flood Bulbs
2) Bridgelux chip
3) 2700-6500K optional
4) High purity Die-casted Aluminum Cooler
5) Constant current and voltage power supply
6)Lifespan more than 50, 000 hours
7)High purity Die-casted Aluminum Cooler connected with diodes ceramic table provides better heat liquidation which increases LEDs lifetime
8)Lower thermal resistance allows the heat emitted by the radiator much easier
9)Adopting advanced technology of aluminum reflecting cover from Germany, efficiently improve reflectivity and gurantees output of luminous flux
10)Eco friendly, no mercucy and lead etc, no thermal radiation, no harm to eyes and skins
11)Longer lifespan, more than 50, 000 hours
12) Customized order weolcomed
Features
1) High efficiency & energy saving. Under the condition of the same llumination, , it saves more than 70%
Energy compared with the traditional lamp.
2)Long life span, using semiconductor chip as the light resource, the life can be over 50, 000hrs.
3 )NoUV& IR. It won't distribute ray radiation Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won't generate EMI.
4)High performance external constant current drivers, no stroboscopic, good for eyesight protection;
Applications
Ø Workshop, factory, warehouse, highway toll station.
Ø Gas station, supermarket, exhibition, gym. Mall, conference room, market;
Installation Introduction
1) Install lamps and lanterns is fixed on the fixed frame (wall) on the lamp bracket and fixed frame three screws
2) Working and Storing in the normal temperature.
3 ) When installing the products, the point ofconnecting of wires must be closed very well toavoid theleakage.
Package&Delivery
1. Your orders will be delivered within 7-10 working time and please inform and confirm with us when you need rush delivery!
2. The lamp will be well packaged with careful handle and will be picked up by forwarder. We assure you the freight will be the lowest cost at the same transportation time.
Our service
1. Your inquiry related to our products or prices will be replied in 24 hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
| Model | CST-LF-C-150W |
| LED Chips Quantity | 4 Pcs COB |
| System Consumption | 150W |
| LED Luminous Efficiency | 110Lm /W |
| Color Temperature | 2700K~7000K |
| Luminous Flux | ≥100lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥75 |
| Operating Temperature | -40 ~ +45 degree |
| Storage Temperature | -40 ~ +70 degree |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | Class I |
| The color of the lamp shell | Black/Silver |
| Power line | 0.75mm2The three core |
| Net weight | 7.3kg |
| Package (1pc per CTN) | 420*380*260mm (CTN size) |
