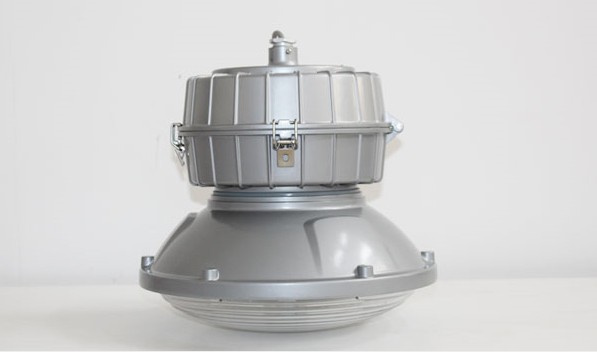

GC-105W
Electrodeless Induction High Bay Light
Applied range: A variety of plants, freight yard, warehouse, large indoor stadium and other fixed place
Application: Indoor, outdoor
Enclosures: Die-casted with aluminum alloy without copper, shot blasting Cleaning, electrostatic polyester-sprayed
Exposed fastener: High quality stainless steel
Display: Impact-resistant and UV resistant, polycarbonate, glare
Component: Electrode less lamp, the average life expectancy of 80 thousands to 80 thousands hours, high power factor, high efficiency and energy saving can be > 0.99, instantaneous starting, no flashing
Structure description: Silicone rubber gaskets structure design with strong protection
Installation: Ceiling mounting(x), pole mounting(g), wall mounting(b), fence mounting(h), flange mounting(f)
Implementation of standards: GB7000.1\GB700.201; IEC60598-1\IEC60598-2-1
Degree of protection: IP65
Rated voltage: AC220V/50Hz
Light source power: 80W, 120W
Corrosion-proof: WF1*WF2
Thread of inlet: G3/4"
Cable diameter: Φ10mm-Φ14mm
Light source type: Annular electrode less induction lamp(ED)
Shanghai Baolin Explosion-proof Electric Co., Ltd (SHBLE), one of the high-tech enterprises in Shanghai, is awarded by the Patent Operation of Shanghai Intellectual Property Office as a pilot enterprise. The company has received Shanghai High-tech Achievement in various projects. Products are widely used in the fields of oil and petroleum, chemical industry aerospace, military industry, electric power, locomotive, municipal engineering, steel, wine making and manufacture of ships etc. Products are extensively welcomed and highly praised by customers and end users. SHBLE is listed as one of grade A suppliers of China National Petroleum Corporation (CNPC) in 2012 and 2013. It has qualified with certifications such as ISO9001, National License of Industrial Products Certification, China Compulsory Certification (CCC) and International Electro-technical Commission for Certification to Standards Rating to Equipment for use in Explosive Atmospheres (IECEX), as well as AAA Grade Credit Enterprise issued by China Electrical Equipment Industrial Association (CEEIA).
SHBLE is situated at the Shanghai Robot Industrial Park in Baoshan District of Shanghai, which has R&D, production, sales and service in one location. Company is specialized in explosion-proof electric apparatus and industrial lighting with more than 100 series and 1, 000 product items with carious specifications. SHBLE has over 100 offices and service centers in the world; It is an integrated solution provider and excellent business partner and named as the "Excellent Service Provider for Explosion-proof Electric Apparatus" in China.
