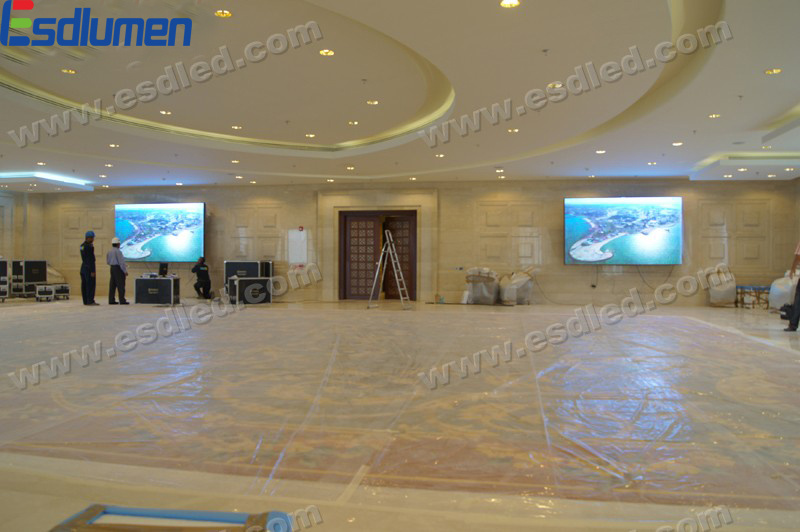

MINI Series P4 full color LED Displays features:
P4 LED displays Cabinet weight is only 7.5 kg, depth 73 mm, decreasing the transportation cost and the intensity of labor.
Hoisting lock connected vertically. 50 cabinets in a line, easy to make up a super big screen.
Quick locks connecting cabinets, only less than 10 seconds per cabinet.
High polymer flexible mask, no dazzle, better contrast ratio; The masks can be pulled off directly from the cabinet, which makes the maintenance much more convenient.
With intelligent control LCD monitor, easy to know the correct accumulated working time.
The back cover can be opened without any tools; Modules can be take off without dismantle the power supply, much more convenient for the examination and maintenance.
With foldable handle and wave-shaped handle, installation and dismantle faster and much more comfortable.
Super-light aluminium alloy connectors are durable and artistic.
|
Parameters of P4mm Indoor SMD LED Display |
|
1 |
Screen body area |
Any size can be designed |
|
3 |
Cabinet |
Pixels: 128dots× 96dots=12, 288dots |
|
Size: L768mm× H576mm |
|
4 |
Display brightness |
2, 000 CD/M 2 |
|
5 |
Brightness adjustment |
256 grade automatic, 8 grade manual, |
|
6 |
Driving Mode |
1/8scan |
|
7 |
View Angle |
140 degrees(horizontal and vertical) |
|
8 |
View Distance |
> 2 meters |
|
9 |
Grey Scale |
8, 192 grades, |
|
10 |
Display Colors |
≥ 16M |
|
11 |
Frame rate |
60 Frame |
|
12 |
Refresh rate |
360HZ(Guarantee that the picture will not tingle when the pick up camera is kinescoping) |
|
13 |
Control Mode |
To be synchronized with computer monitor |
|
14 |
Data Transmission |
Parallel RS422 mode |
|
15 |
Screen Lifespan |
> 100, 000 hours |
|
16 |
Blind Spot Rate |
≤ 0.0002 |
|
17 |
Operating Voltage |
AC100V± 240V 50-60HZ |
|
18 |
Screen Body Power Consumption |
Max: 1, 000w/sqm, Average: 500w/sqm |
|
19 |
Color Temperature |
6, 500K± 500 |
|
20 |
Screen body weight |
Less than 60KG/s. qm (do not include outer frame) |
|
21 |
Control Distance |
120 meters (without relay) (optical fiber transmission 500M-10, 000M) |
|
22 |
System Working Environment Temperature |
-20-+70 Degrees |
|
23 |
System Working environment humidity |
10%— 95%RH |
|
24 |
System Operating Platform |
WINDOWS (WIN98, WIN2000, WIN XP)friendly interface, Keep the interface for the secondary development |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
