Basic Info.
Model NO.:MR-LD-30W
IP Rating:IP65
Certification:CE, RoHS
Color Temperature:Pure White
Lamp Body Material:Aluminum Alloy
Power Supply:AC
Application:Square, Highway, Road
Light Source:Epistar LED
Base:E40 Base
Input Voltage:AC85-265V
Watt:30W
LED Quantity:28PCS LEDs
Pf:0.95
Colour Temperature:3000-7000k
Export Markets:Global
Additional Info.
Trademark:Ming Hui Lang
Packing:in cartons
Standard:CE
Origin:China
HS Code:9405409000
Production Capacity:5000PCS/Month
Product Description
30W LED Street Lamp
30W, 40W, 60W, 80W are also available! Welcome to inquire.
. With Epistar LEDs.
. Size 90mm*90mm*275mm
. With 28PCS 1W high power LEDs
. Imput 85-265V. 47-63 Hz.
. Lamp base E40. Net weight 1kg per piece
. White could be up to 2500lm
. Long life time 50, 000 hours
. Sturdy Aluminium Housing. IP65
. Total power comsuption 30W
. Working Temperature: - 30degree-50degree
. Working Humidity: 10%~90%
. Pure White Color 5000-7000K, Warm White Color 3000-4000K
. High CRI with great directionality
. Fast turn on, no warm-up or cold start problems
. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for LED streetlight, LED street lamp
. 80% energy saving compared with the conventional street lights. Frenquently used for Replacing the traditional CFL, HPS and LPS bulbs.
. Widely used for the roads, residential, sidewalks, square and stadium lighting etc.
. Be in area of LED street lamp, LED streetlight, LED street lighting, LED road lamp, LED road light, LED street light scource etc.
Specification data:
Illumination (E)
(Height=6m)≥ 13 Lux (equal to HPS 33 Lux)
(Height=8m) ≥ 7.5 Lux (equal to HPS 19 Lux)
(Height=10m) ≥ 4.5 Lux (equal to HPS 11 Lux)
(Height=12m) ≥ 3 Lux (equal to HPS 7.5 Lux)
Effective Illuminated Area
(Height=6m): 20 X 8 m
(Height=8m): 26 X 10 m
(Height=10m): 33 X 13 m
(Height=12m): 40 X 16 m

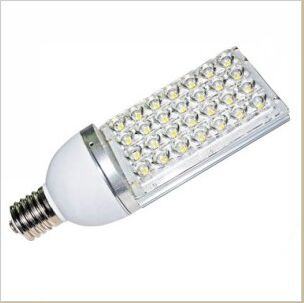

LED street lamp photo:
Electrical Specification: |
| Item Number | MR-LD-30W |
| Imput Voltage | AC85-265V |
| Power Consumption | 30W |
| Lighting Source | Epistar LED |
| LED Quantity | 28pcs |
| Operation Temperature | -10~50 degre |
| 3. Optical Specification: |
| Color Temperature | 3000-3500K (WW) | 4000-4500K (CW) | 6000-6500K (PW) |
| Lumen | 2700lm | 2750lm | 2800lm |
| Luminous Efficacy | 90LM/W | 100LM/W | 110lm/W |
| CRI | > 75 | > 75 | > 75 |
| Beam angle | 120 degree |
| Lumen Maintenance | > 97%@1, 000hours |
Weifang Mingrui Optoelectronics Technology Co., Ltd., located in National Optoelectronics Industry Park, Wei Fang High-tech Development Zone, is a new technology enterprise specialized in researching and developing, producing and marketing new energy and new light sources and the technology for switching power supplies.
Mingrui has a top team and outstanding corporate management personnel of semiconductor (LED) applications. Our company has a pH. D. In physics, 3 optoelectronics graduates and 3 electronic engineers. Our company has set up two R&D departments for high-tech products: LED lighting and switching power supply R&D Department and solar energy photovoltaic power, inverter and charger R&D Department.
In the field of LED lighting, our company takes the lead in solving four industrial problems of fast light decline, poor uniformity, low illumination and poor heat dissipation in the process of conversion from passive light source to initiative light source.
It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth.
