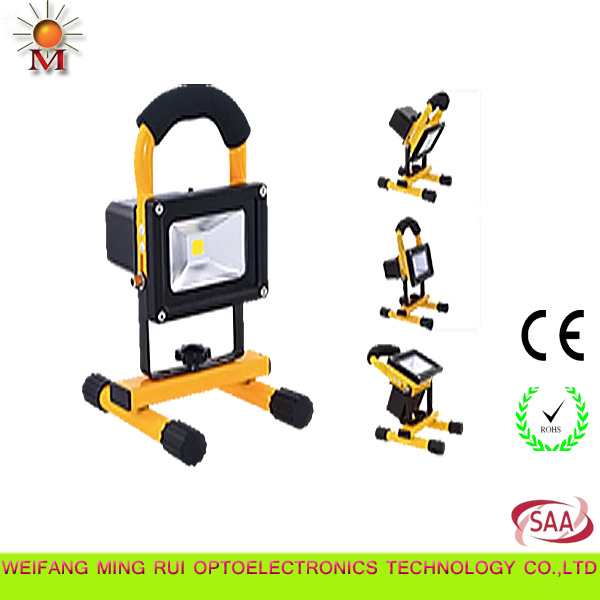

Portable rechargeable LED work light
Rechargeable: Charging 6 hours, work 6-8 hours.
Equip common charger and Car charger.
Shell Material: ADC12 thick aluminum die casting material, tempered glass, high elastic silicone ring, stainless steel screws.
The main parameters:
1. Light source: Taiwan Epistar chip, Shenzhen encapsulation process, lumen up to 115lm /w.
2. LED Qty: 40pcs SMD5730, 0.5 watt LED, single LED efficiency is up to 60lm/W.
3. Color: White, warm light, red, green, blue, yellow.
4. Using A class lithium-ion battery, the real capacity 2200mah (similar battery marks vacuity of 2800mah in the market) This product uses eight batteries, two Series connection and four In parallel, true parameter 7.4V, 8800mah
5. Car charger: DC12V, 1500ma charging time 6hours and discharging time 6-8 hours.
6. Electrical Charger: AC85-265V 1500ma 3-4 hours and discharging time 46 hours...
7. Viewing angle: 120 degrees, illumination distance: 5-20M
8. Ambient temperature: -30 --50 degrees Humidity: 10% -95%
9. Charging times: More than 500 times, Warranty: 2 years
Product Features
1. Hand-held portable, lighting angle can be adjusted, easy to install.
2. ADC12 die-cast aluminum lamp housing, IP Code: IP65.
3. LED energy saving, 18650 lithium battery, charging times more than 500 times.
Application
1. Recessed lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels
Item | MR-FD- 20W |
Power | 20W COB |
Input Voltage | 85~265V AC 12VDC |
Luminous flux | 1850lm |
Material | Aluminum+tempered glass |
Battery | 7.4V,4400mAh rechargeable Li-ion battery |
Charging time | 6hours |
Working time | 4hours |
Working temperature | -30°C to +45°C |
IP Code | IP65 |
Shell color | Green/Yellow/ /Red |
