Home LED Light Products Double Side LED Sign P10, P16 Billboard Advertising LED Display, China P10 LED Display Outdoor

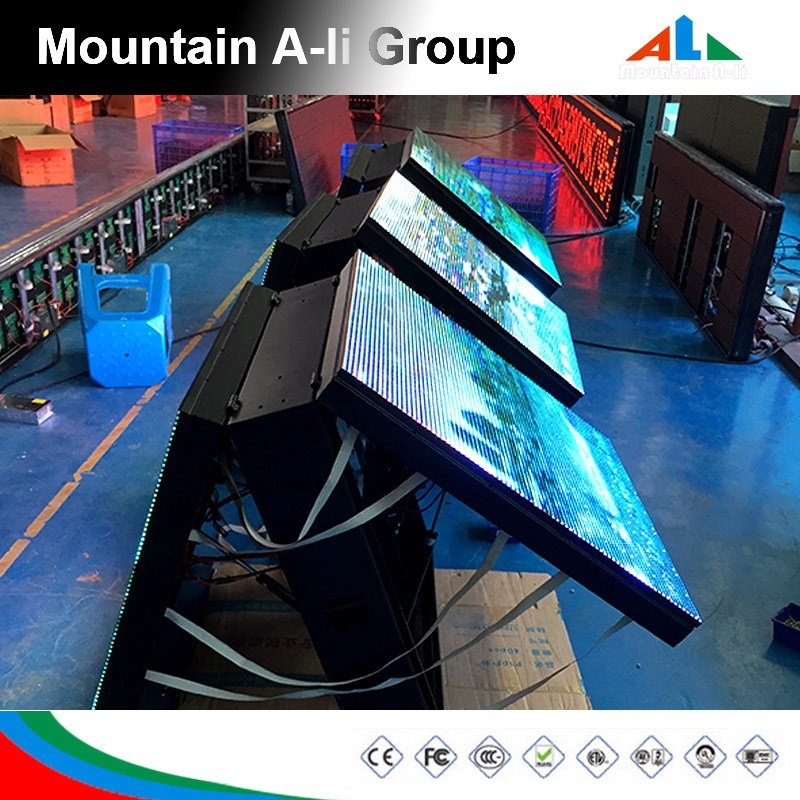

Double Side LED Sign P10, P16 Billboard Advertising LED Display, China P10 LED Display Outdoor
| Price: |
US $ 550-650/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Products list
1. P3\P4\P5\P6\P7.62\P10 Inndoor Full Color Led Display;
2.P6/P7/P8 /P10/P12//P16/P20/Outdoor Full Color Led Screen
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12working days
Why choosed us :
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system

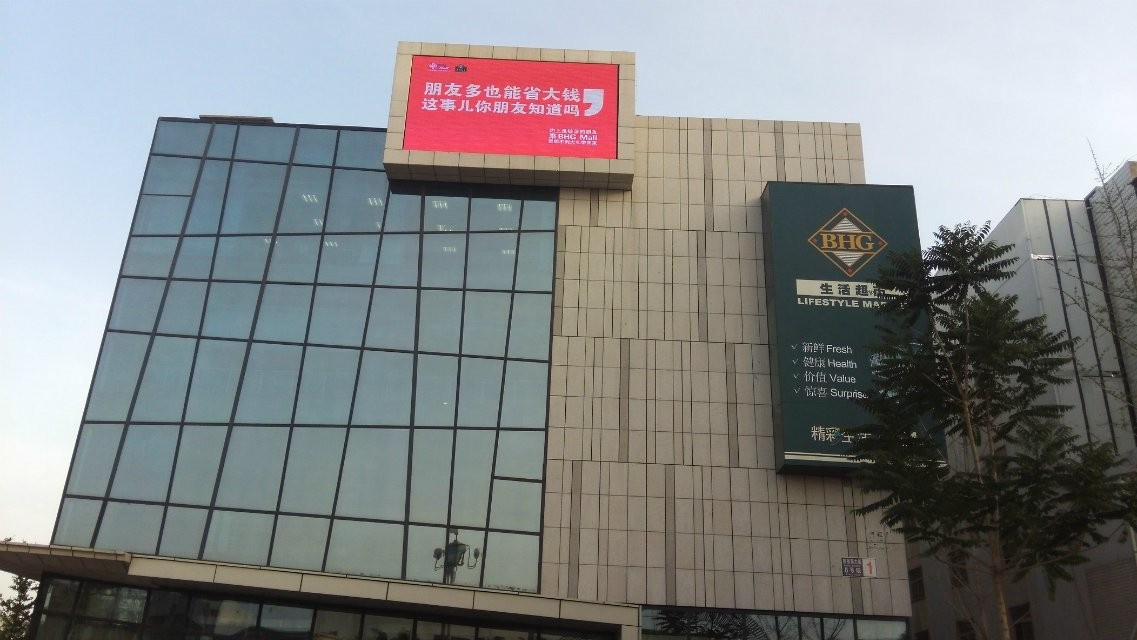

Project Picture
Packing Picture

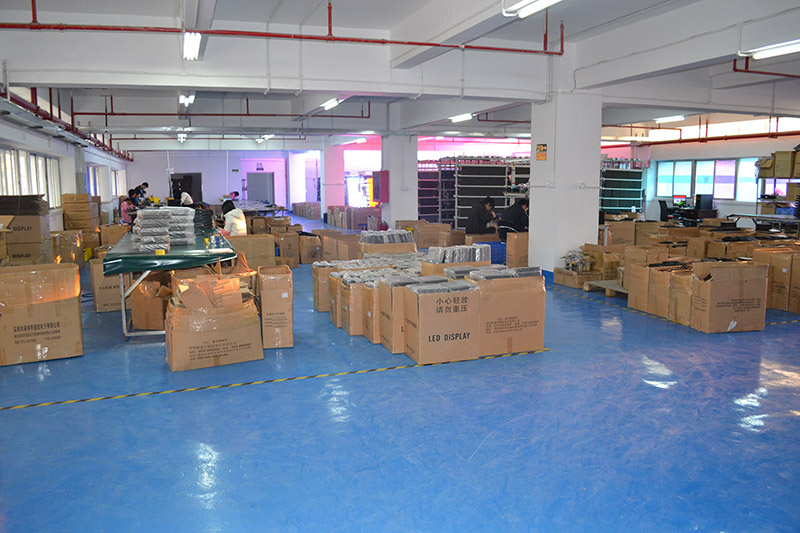

Goods Productiong Line
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P10 Full Color Led Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥7500-8000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 36pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
| Prod Model: |
P10 Outdoor LED Sign |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Module Size: |
160mm*160mm |
| LED Module Resolution: |
16 Dots*16 Dots |
| LED Module Weight: |
0.55kg |
| Brightniess: |
7500-8500mcd/Square Meter |
| Cabinets Size: |
960mm*960mm |
| Best View Distance: |
10-100m |
| LED Modules Max Power: |
25W |
| Modules Thickness: |
25cm |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
