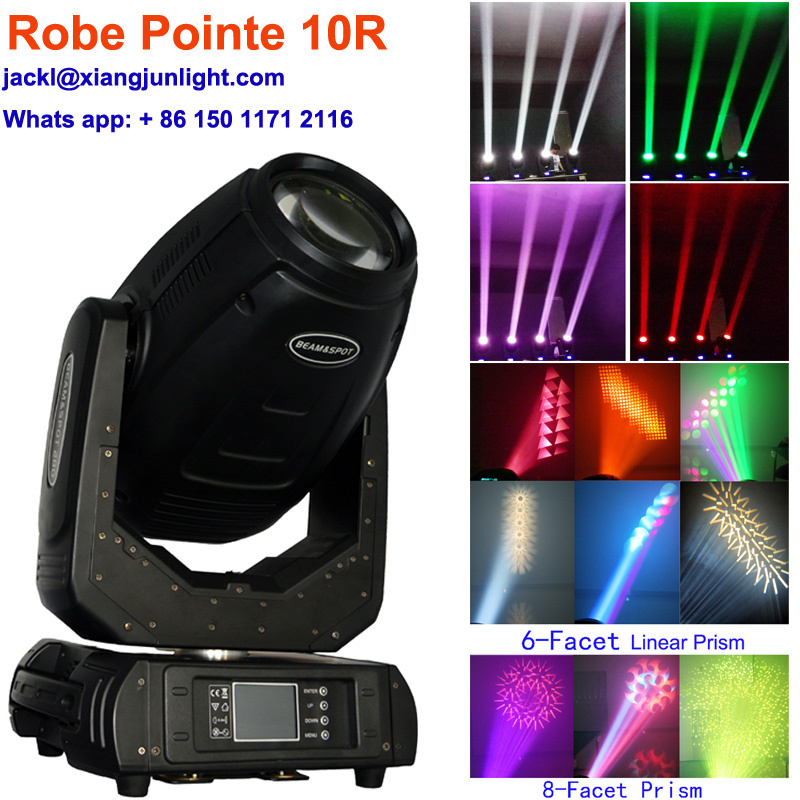

10R 280W Moving Head light
Beam + Spot + Wash 3 in 1 with linear zooming
Features:
Beam, Spot and Wash 3 in 1
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Colour touch screen, 180° reversed display
3-Pin XLR connector input/output; 5-Pin XLR connector input/output
3-phase motor
Double prism and double focus
DMX Wireless ControlDMX Wireless control distance: 500M
DMX wirless channels: 512 channels
a transmitter can send signal to many receivers. a reciever can control 512 channels.
for example, The 7R shapry has16 channels then a receiver can control 512/16 channels= 32pcs
at most for each group.
For each group,only install one wireless receiver on first light, the
others can be connected by singal cable.
Light source:
Power consumption: 470W
Electronic ballast
Lighting source: Original Osram 280W
Input Volt: 100~240V/50-60Hz
Luminous Flux: 150000LM at 10M
90, 000LM at 20M distance
Colour Temperature: 8000K
Lighting Effect:
Colour Wheel: 13 colours + blank
Gobo: 14 gobos + blank, 9 ratating gobos
Control: DMX512, Master/Slave, Sound and Auto
Channel: 16/24 Channel
Prism: 6-facet T prism and 8-facet prism
Dimming: 0-100% linear dimming
Strobe: double strobe (speed ajustable)
Zoom angle: 2.5 - 10 °
Spot angle: 5-20°
Wash Angle: 2.8-38°linear zooming
Foucs: linear focus
Pan scan: 540°(16bit) electric correction
Tilt scan: 270°(16bit) electric correction
Lens: High precsion optical lens
Wash effect: adjustable wash effect angle
Packing:
Fixutre size: 380×320×595MM
Net. W: 15.5KG
G. W (Paper CTN): 16.5kgs
G. W(Flight case/1PC): 35kgs
G. W(Flight case/2PCS): 60kgs
Paper CTN Size: 465*450*685MM
Flight case/1PC: 460*380*71MM
Flight case/2PCS: 850*510*740MM
Accessaries: quick lock 2pcs
clamp/hook: 2pcs
safety rope: 1pc
signal wire: 1pc
power wire: 1pc
user manual 1pc
Many different power plugs for different countries and resigons

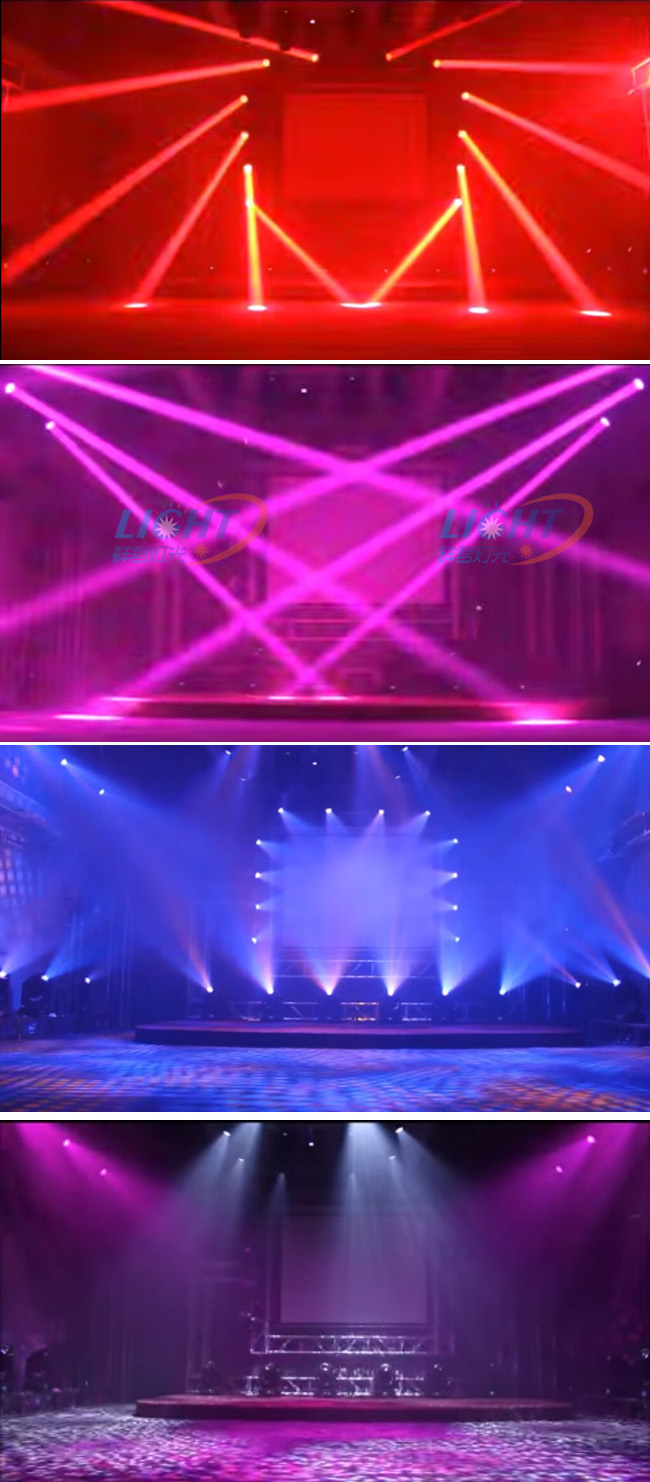

Lighting Effect:
Productions:
DMX Channel
Standard | Simple Mode | Value | Function |
|
1 | 1 | 0-255 | X-axis0-540° |
2 | * | 0-255 | X-axisfine tuning |
3 | 2 | 0-255 | Y-axis 0-270° |
4 | * | 0-255 | Y-axis fine tuning |
5 | 3 | 0-255 | X Y-axis speed governing |
6 | 4 | 0-19 | blank |
20-24 | enervy saving mode(230W) |
25-129 | blank |
130-139 | on |
140-149 | X/Y axis reset |
150-159 | blank |
160-169 | Effect reset |
170-199 | blank |
200-209 | Fixture reset |
210-229 | reserved |
230-239 | off |
240-255 | blank |
7 | 5 | Colour wheel |
0-8 | white |
9 - 17 | deep red |
18-26 | deep blue |
27-35 | yellow |
36-44 | green |
45-53 | magenta |
54-62 | sky blue |
63-71 | red |
72-80 | deep green |
81-89 | amber |
90-98 | blue |
99-107 | orange |
108-116 | cool colour |
117-127 | Fluorescent blue + white |
128-129 | white |
130-134 | deep red |
135-138 | deep blue |
139-143 | yellow |
144-147 | green |
148-152 | magenta |
153-157 | sky blue |
158-161 | red |
162-166 | deep green |
167-171 | amber |
172-176 | blue |
177-180 | orange |
181-185 | cool colour |
186-189 | Fluorescent blue |
190-220 | from fast to slow (water flo) |
221-250 | from slow to fast |
251-255 | Auto random colour selection |
8 | * | | Colour wheel fine position |
9 | 6 | | Effect speed |
10 | 7 | stactic gobo |
0-3 | blank |
4 - 9 | gobo1 |
10 - 15 | gobo2 |
16-21 | gobo3 |
22-27 | gobo4 |
28-33 | gobo5 |
34-39 | gobo6 |
40-45 | gobo7 |
46-51 | gobo8 |
52-57 | gobo9 |
58-63 | gobo10 |
64-69 | Penlight1 |
70-75 | Penlight2 |
76-87 | Penlight3 |
Gobo shaking from slow to fast |
88-95 | gobo1 |
96-103 | gobo2 |
104-111 | gobo3 |
112-119 | gobo4 |
120-127 | gobo5 |
128-135 | gobo6 |
136-143 | gobo7 |
144-151 | gobo8 |
152-159 | gobo9 |
160-167 | gobo10 |
168-175 | Penlight1 |
176-183 | Penlight2 |
184-199 | Penlight3 |
200-255 | gobo from slow to fast |
11 | 8 | Ratating gobo |
0-4 | blank |
5 - 7 | gobo1 |
8 - 10 | gobo2 |
11 - 13 | gobo3 |
14-16 | gobo4 |
17-19 | gobo5 |
20-22 | gobo6 |
23-25 | gobo7 |
26-28 | gobo8 |
29-31 | gobo9 |
gobo Anti-clockwise rotation |
32-34 | gobo1 |
35-37 | gobo2 |
38-40 | gobo3 |
41-43 | gobo4 |
44-46 | gobo5 |
47-49 | gobo6 |
50-52 | gobo7 |
53-55 | gobo8 |
56-59 | gobo9 |
gobo shaking from slow to fast |
60-67 | gobo1 |
68-75 | gobo2 |
76-83 | gobo3 |
84-91 | gobo4 |
92-99 | gobo5 |
100-107 | gobo6 |
108-115 | gobo7 |
116-123 | gobo8 |
124-129 | gobo9 |
gobo shaking from fast to slow |
130-137 | gobo1 |
138-145 | gobo2 |
146-153 | gobo3 |
154-161 | gobo4 |
162-169 | gobo5 |
170-177 | gobo6 |
178-185 | gobo7 |
186-193 | gobo8 |
194-199 | gobo9 |
200-221 | from fast to slow(water flow) |
222-223 | Stop |
224-243 | from slow to fast(water flow) |
| | 244-255 | water flow randomly |
12 | 9 | gobo auto-rotate |
0-127 | index |
128-177 | anti-clockwise from slow to fast |
178-203 | blackout |
204-255 | anti-clockwise from fast to slow |
13 | * | 0-255 | Gobo rotate fine |
14 | 10 | Prism |
0-19 | blank |
20-75 | 6-facet prism |
76-255 | 8-facet prism |
15 | 11 | prism auto-rotate |
0-49 | Index |
50-75 | 6-facet prism rotate |
76-104 | Blank |
105-127 | 8-facet prism rotate |
128-191 | clockwise from fast to slow |
192-193 | Blank |
194-255 | anti-clockwise from slow to fast |
16 | 12 | Frost |
0-64 | blank |
65-255 | Linear frost |
17 | 13 | zoom |
| | 0-255 | Linear zoom |
18 | * | 0-255 | zooming fine |
19 | 14 | 0-255 | Focus |
20 | * | 0-255 | foucs fine |
21 | * | 0-255 | Autofocus |
22 | 15 | strobe |
0-31 | strobe close |
32-63 | strobe |
64-95 | strobe from slow to fast |
96-127 | strobe |
128-143 | from fast to slow slow off/fast on |
144-159 | from slow to fast fast off/slow on |
160-191 | strobe |
192-223 | random strobe/from slow to fast |
224-255 | strobe |
23 | 16 | | dimming |
0-255 | Linear dimming(0-100%) |
24 | * | | Dimmer fine |
FAQ:
Q1,Are you a factory or trading company?
A,We are factory with more than 8 years in lighting industry and we are
SGS varified manufactuer.
Q2,How can I trust you?
A,Please kindly check our business license and certificate issued by Bureau Veritas from home page.
Q3,How can I get a good quotation?
A,Please email your interested products,more information we get,better price we provide.
Your quantity,your country,your requirement,quantity,shipping way,your package or any other requirement will help to give you correct quotation.
Q4,How about the delivery date?
A,For sample,we always have products in stock,we can send it once get your payment.For small order,it takes 5-15 working days.For container,it takes 3-4 weeks depend on what's products.
Q5,How about the shipping way?
A,By door-door express(such as DHL,UPS,TNT,EMS),by air freight(airport to airport),by sea(port-port).
Q6,How about payment terms?
A,We recommend T/T,Western Union
Paypal is available but takes extra handling charges.
Q7,How about the MOQ?
A,Depends on the products,sample is available.
Q8,How could you promise the quality?
A,First,we have inspections both for material and complete products,during the assembly,our QC team will take care of the whole procedure,
Second,we have 1 year warranty for all our products,if you have any problem,please help to provide picture or video,we will provide free parts for any quality problem.We provide life-long after-sale service for our clients.
Q9,Where is your factory located? How can I visit there?
A,Our factory is located in Guangzhou City, Guangdong Province, China, about 20 minutes away from Baiyun Airport,welcome to visit!
Q10: Dose the unit with any certificate here?
A: yeah, our product all ready passed CE, ROHS, TUV, CCC, etc.
Q11: What's the warranty ?
A: Our warranty is one year , we will provide free spare part to replace if any of them not working in one year .

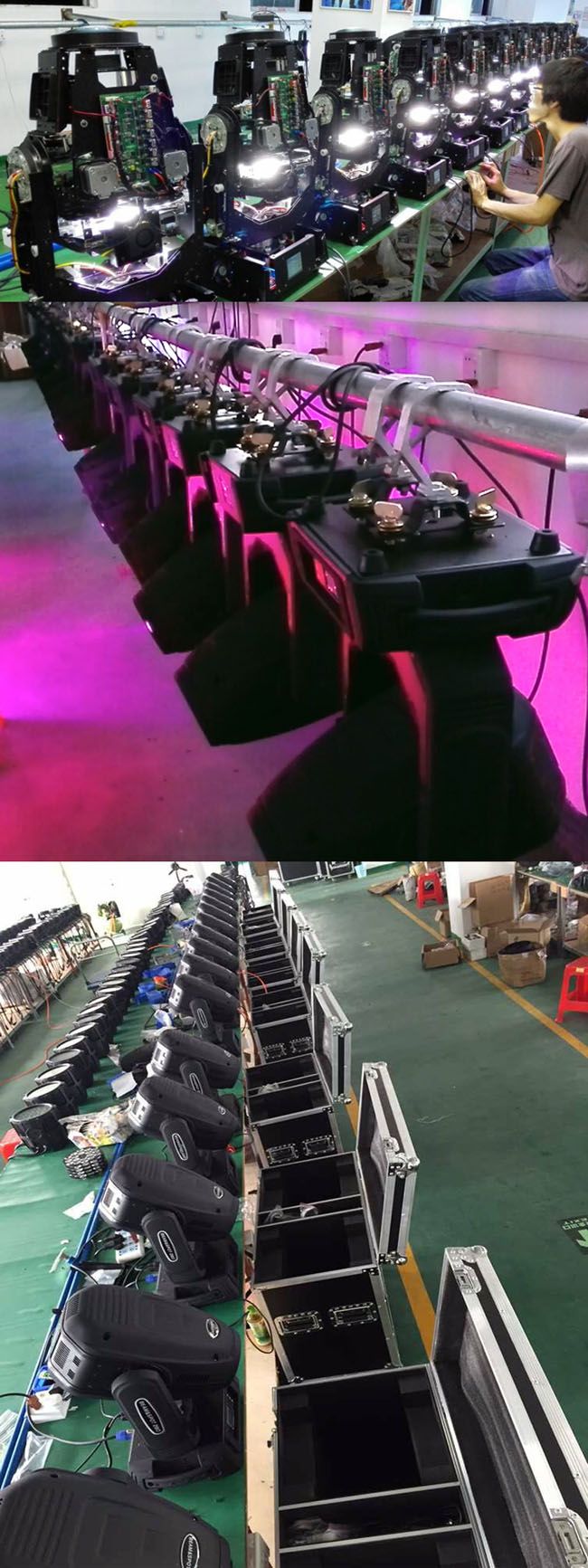

Established in 2014, XiangJun Lighting Equipment Co., Ltd have been in stage ligthing field For 2 years. Our factory in Guangzhou covers an area of 1500 square meters. We make Beam moving head light, LED moving head light, PAR Light, Dance floor, follow spot, console and other accessaries. Our products are CE and RoHS certified. We have a strict regulation on quality control from material purchase, mass production and warehouse storage. We provide OEM for many big brands in China and overseas market.
