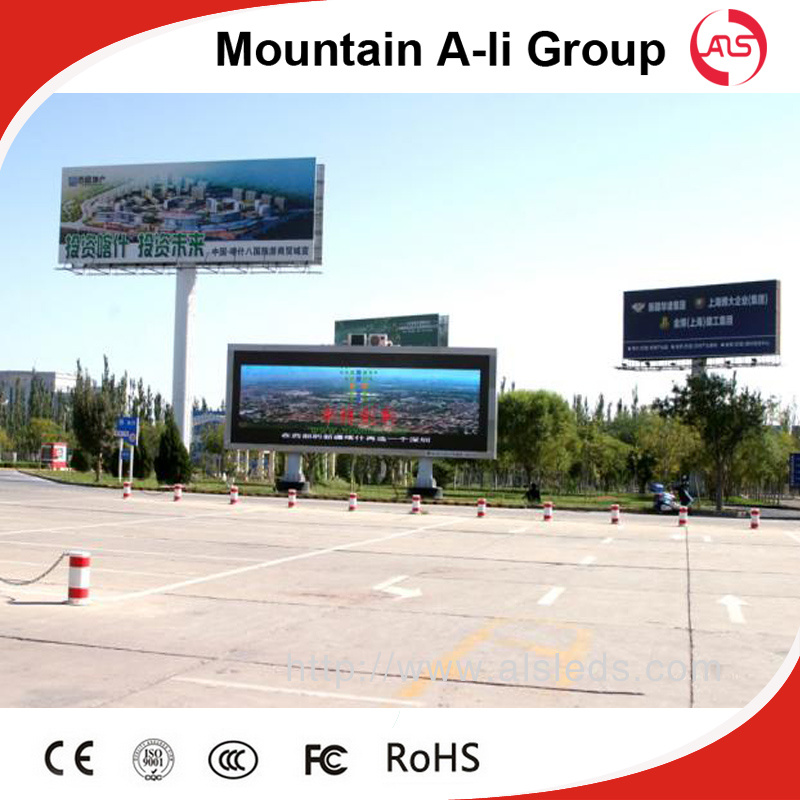

Digital P10 Outdoor Advertising LED Display
Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of LED display.
Our service:
1. Inquiry response time: within 24hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price+ patient after-sales service.
6. Mountain A-Li Group can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
unit module | Item | Parameter |
| Product model | P10 Full Color LED Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000CD/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots(H) |
| Maximum power consumption | 20W |
| Module thickness | 25CM |
| Module weight | 0.5kg |
| Driving method | Constant Current Driving |
| Scan mode | 1/4scan |
| Interface type | HUB75 |
| Brightness | ≥7500CD/m2 |
| the cabinet | Cabinet size | 960mm*960mm |
| Module quantity | 36PCS |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10m~50m |
| Optimal viewing angle | 160°(W) 120°(H) |
RH Working temperature | Storage:-35°C~+85°C |
| Working:-20°C~+50°C |
| System operating humility | 10%-95% |
| Power | Operating voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/ |
| Current | ≤20mA(single LED) |
| Control system | Computer | Pentium4 or above p4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| Main technical parameter | Driving device | IC Constant Current Driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB Each 256 grade,,can display 16.7 M color |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display mode | 800*600/1024*768/1280*900 |
