Die Cast Rental Outdoor LED Display

Die Cast Rental Outdoor LED Display
Price: US $ 1190-1580/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
Die Cast Rental Outdoor LED Display Detail specification

ParametersOutdoor Die-casting LED Display Series  (  640 MM X 640MM )
Pixel Pitch (mm)6mm8mm10mm
Pixel density(pix/m2)225451562510000
LED Type3535Dip 346DIP 346
Viewing AngleX,Y140°X,Y140°X,Y140°
Brightness(nits)≥5000≥5000≥5000
Drive Method1/61/51/2
Color Depth65536
Refresh Rate(Hz)192019201920
Module Size (mm)320×160×16
Cabinet Size(mm)640×640×80
Cabinet Materialaluminum
Cabinet weight(kg)121717
Voltage200-240V
Average.power(W/m2)230230230
Max.power (W/m2)700700700
IP GradeIP65/IP54
Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCCC(CE)Rosh


Die cast rental screen  640 mm x 640 mm Feature :

P65 and Seamless Connection ,New design, suitable for outdoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks.

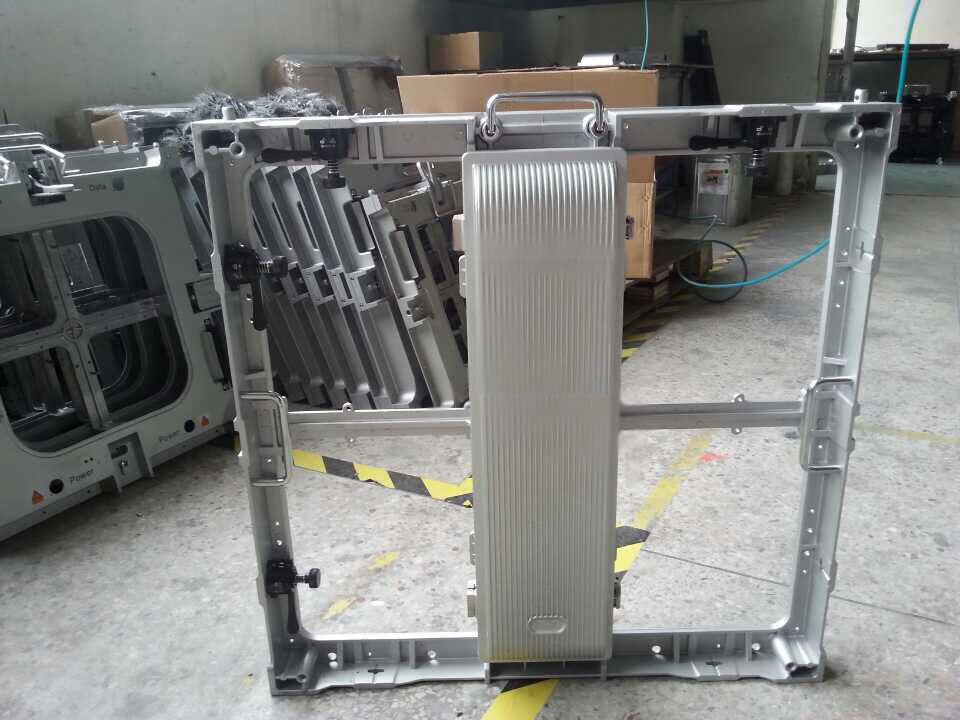

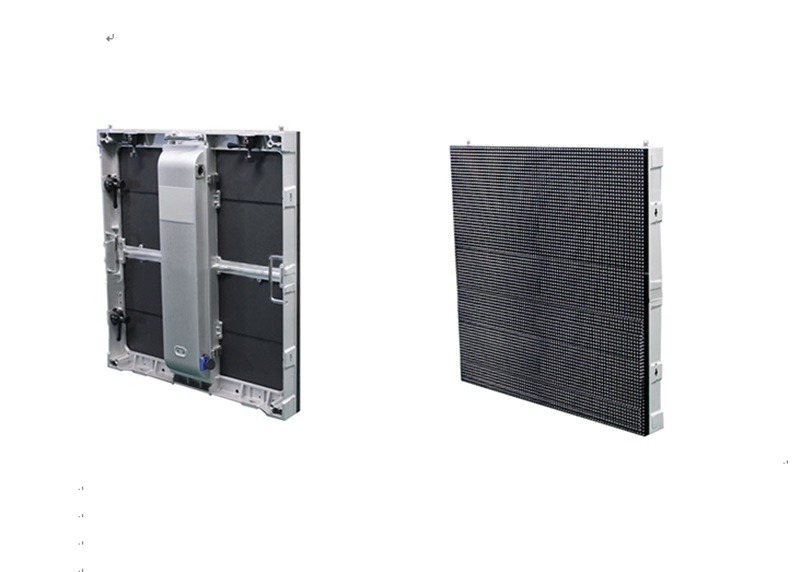

Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.

Quick and Easy Installation in 5 Seconds ,Fast lock for quick and easy installation.
Maximum support 50pcs hanging in a collum.


Prod Model: p8 Die Cast Retal Outdoor LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 320*160
Cabinet Size: 640*640
Cabinet Material: Aluminum
Warranty: Two Years
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Certification: CCC
Display Function: Video Display
Application: Advertising
Scanning Mode: 1/4 Scan
Average Power Consumption: 300W / m²
Pixel Pitch: 8mm
Pixel Density: 15625 DOT / Sqm
