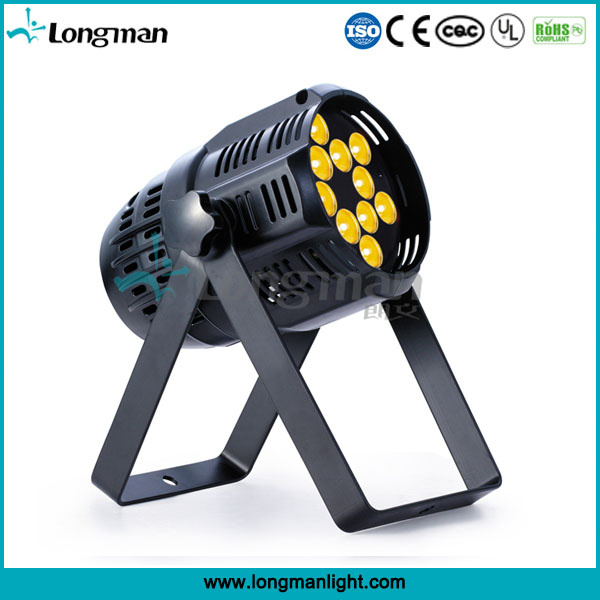

Die cast aluminum dmx 12*5W ACW LED Stage Light
Features:
1.Patent New die cast Lamp body, same size as traditional Par 56, direct heatsink, true silent, could customized white Lambody.
2.4000Lumens Output with multi-CCT to acheive Metal hilide light Rendering, 90% Lumens within 10% Intensity field angle.
3.New Full CCT Capsulation LED,Popular application in stage, studio room,concert,business exhibition and all rental projects.
4.DMX512 signal control,4 buttons address setting with LED screen.
5.Dim 4 Square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs;
6.Independent circuit driving, each 550mA,even ampere distribute.
7.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
8.Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.
Specification
1.Voltage input: AC 90-240V 47-63Hz,PF>0.9
2.Volatage Output:24V,SMPS longevity 15000Hours
3.Rated Power:62W(@220V 50Hz)
4.Luminaire Efficiency: >0.9,Light Effiacy >66lm/W.
5.LED Lumens:12pcs*5W Full ACW LED,Amber 860lm,Cool white 1720lm,Warm white 1380lm,ACW mixing 4000lm.
6.LED CCT: Amber=590nm,C=8000K.W=3300K,Offer multi-CCT conbination 1700-6500K,SDC<0.005,ACW=3010K,Ra>95.
7.Field Angle(10%): standard 30 °(12000Cd/Klm),45°,60°,60*1°Etc optional.
8.Control signal:DMX512,32 bit Dim 4 square law dimming,PWM>400Hz,smooth dimming, no vision shock flicker free
9.Control mode: DMX1990/DMX512A/stand alone/master and slave
10.Chanel option: 3/4/5/6/8 CH all inside menu.
11.Housing material: Die cast aluminum ADC12,standard Matte balck, customized glossy White painting, barndoor available.
12.Safty: Class II, 3C 1.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP20.
13.Operate temperature:-20~+45ºC,Light board peak temperature 80ºC
14.Cerficated:Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
15.Weight: 3.5Kg,with double yokes 3mm thick supporting bracket.
16.Size: 27*23*29CM
