Features
1. LED type: 1W High power LED
2. LED quantity: 18 pieces
3. Operating condition: DC 350mA
4. Maximum size: 1000*50*50mm
5. Viewing Angle 45°
Application

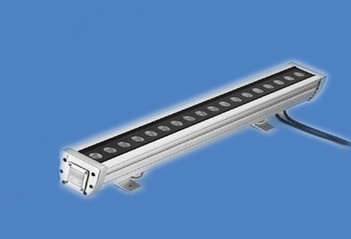

High brightness LED wall washer in various colors, usually used for feature lighting, such as outside of a building, indoor lighting for parties and so on. LED wall washer with save-energy, longlife, colorful lighting effect, perfect for lighting projects, commercial spaces, exterior walls, both inside and outside wall panoramic floodlighting
After-sales services
All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it's not guaranteed. To the problem within promised time, "Aglare" will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customers
|
Part Number |
Emitting Color |
Input Voltage |
Wattage |
Waterproof Degree |
LED Quantity |
Luminous Intensity(Lm) |
Net Weight
(g) |
|
MIN |
MAX |
|
YJ-WW1000X50S18X1R |
Red |
AC90V-AC260V |
18W |
/ |
18pcs |
630 |
1170 |
1275 |
|
YJ-WW1000X50S 18X1G |
Green |
18W |
/ |
18pcs |
720 |
1440 |
1275 |
|
YJ-WW1000X50S 18X1B |
Blue |
18W |
/ |
18pcs |
144 |
270 |
1275 |
|
YJ-WW1000X50S18X1Y |
Yellow |
18W |
/ |
18pcs |
630 |
1170 |
1275 |
|
YJ-WW1000X50S18X1W |
Pure White |
18W |
/ |
18pcs |
1260 |
1800 |
1275 |
|
YJ-WW1000X50S18X1WW |
Warm White |
18W |
/ |
18pcs |
990 |
1440 |
1275 |
