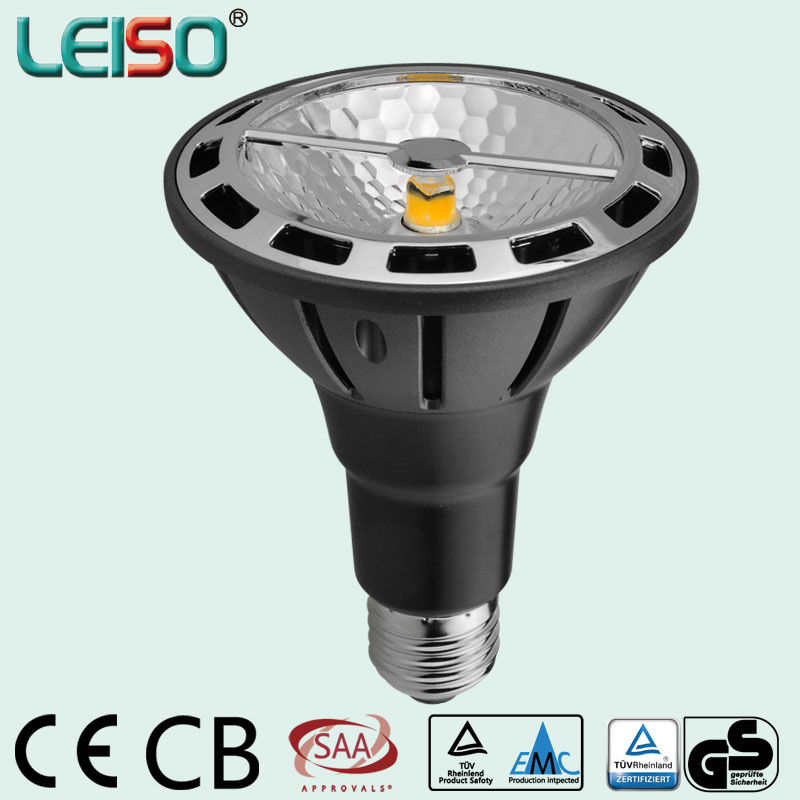

CRI90 LED PAR30-L with Cup Reflector Design
1. Specification details
Power: 15W
Replacement 75W halogen AR111
Input voltage : 100-240V AC
CCT: Customized from 1800-2500K, Standard CCT: 2700K, 3000K, 4000K, 5500K
Lumens: CRI >80, 840 lm (2700K), CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K), CRI >80, 960 lm (5500K)
CRI >90, 780 lm (2700K), CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
CRI: Ra80/Ra90 or customized 95Ra, 98Ra
Beam angel : 25 degree
Lamp base : E27/E26/B22
Products Size: Φ95*91mm
Dimmable: NOT
Warranty: 3 years free replacement
Lifespan: 45,000hrs
2. Advanges and characters
1) Adopt patented SCOB light source (stereoscopic chip on board).
2) Unique design makes it different from existing LED Bulbs of public mould.
3) Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4) Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5) No IR- and UV radiation.
6) Directly replace 75W halogen lamp, saving at least 80% energy.
7) TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained.
8) Customized color temperature from 1800K, 2200K, 2500K, and standard CCT: 2700K, 3000K, 4000K, 5500K
9) CRI 80 and 90 for choose
10) Materials: PC940. Excellent resistance Burning level V-0.
11) With PMMA cover on the lamp to pretect the dust-free.
3. Technical Parameters of P718 series PAR30-L SCOB 15W
| Item No. | Data sheet | Power | Lumens (CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
CTN
Qty | CTN
Dimension | Volume weight | Gross weight |
| LS-P718-BWW/BW | * SCOB PAR30-L
* Reflector design
* CREE Chip
* Beam angle : 25°
* E27/E26/B22 base
* Power factor : 0.95
*Lifespan≥45,000Hrs | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K) | Φ95*H120mm | 100~240V AC | NOT | 20 | 52x21x26cm | 13.0kg | 6.7kg |
| LS-P718-A-BWW/BW |
| LS-P718-BWWD/BWD | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) | 100~120V AC 220~240V AC | YES | 20 |
| LS-P718-A-BWWD/BWD |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
