Applican

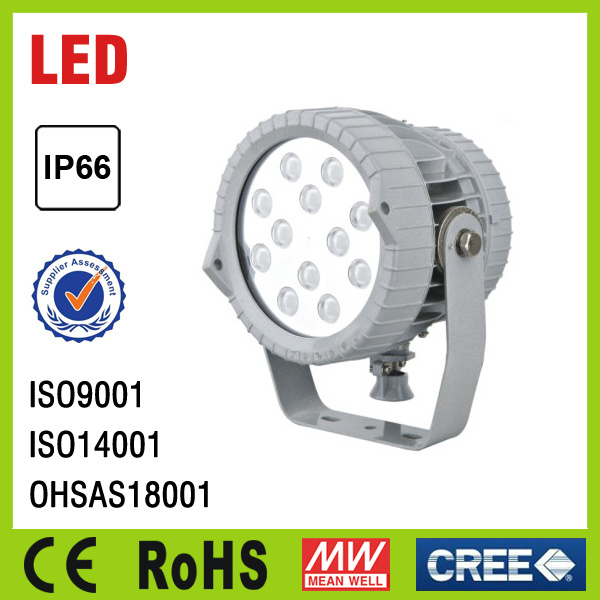

This product is ideal to use as floodlighting in factory, construction site, engineering machinery and other indoor and outdoor site
Characteristic of profermances
1)Customer can choose the 25°or 40°or 80°as the beam angle according to the application.
2)The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
3)The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
4)light source adopt CREE LED, can save 60% or more on energy than the metal halide lamp.
5)Equipped with World top brand electrical appliance, ensuring the lamp have a stable performance.
6)The shell adopts high-tech surface spraying technology, abrasion resistance corruption, waterproof, dustproof, suitable to used at all kinds of environments
Order reference
| Input voltage | AC90~264V |
| Output voltage | DC36~48V |
| Frequency | 47~63Hz |
| Anti corrosion grade | WF2 |
| Insulation Grade | I |
| Cable diameter | Φ8mm~Φ14mm |
| Size | 242×Φ200×320mm |
| Net weight | 3.8kg |
| Order no | Beam Angle | Light source | (W)
Light power | (lm)
Light output | Equivalent to |
| Metal Halide Lamp | Electroless Lamp |
| ZY8301-L25-25° | 25° | LED | 25 | 3300 | 70W | 60W |
| ZY8301-L25-40° | 40° |
| ZY8301-L25-80° | 80° |
| ZY8301-L40-25° | 25° | LED | 40 | 5412 | 100W | 85W |
| ZY8301-L40-40° | 40° |
| ZY8301-L40-80° | 80° |
| ZY8301-L60-25° | 25° | LED | 60 | 6996 | 150W | 135W |
| ZY8301-L60-40° | 40° |
| ZY8301-L60-80° | 80° |
