Product Description:

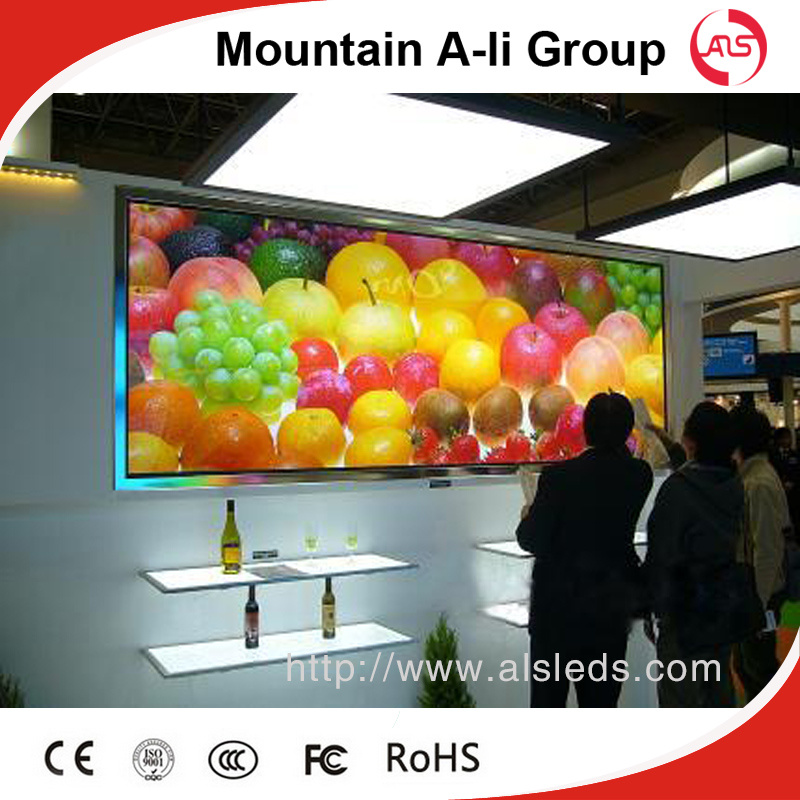

P3 Indoor Full Color Led Display
Product Features :
1.Light,color can be custeomaized.
2.Full Magnesium design, cooling well, no fans, no noise, Anti-interference.
3.Assembly of high precision, the gap can be controlled less than 0.2mm, cabinet installation just 20 seconds
4.The cabinet size can be user-friendly designed according to the module size.
5.Fast disassembly module just 10 seconds, convenient raplacement and maintenance.
6.Durable cabinet structure.
Using Range:
Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government
agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,
eletric power, galleries and other publicity, advertising, information diseemination, the guide places.
Specifications:
| Unit Module | Item | parameter |
| Model | ALS - P3 - 16S |
| Module size | 192mm*96mm |
| Pixel Pitch | 3mm |
| Pixel Density | 111111dots/m2 |
| Pixel Configuration | 1R1G1B |
| Package mode | SMD2121 |
| Module Resolution | 64dots(W)*32dots(H) |
| Max power consumption | 18w |
| Module Thickness | 14.75mm(without magnet) 26.63mm (with magnet ) |
| Module Weight | 0.16kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/16scan |
| Interface Way | HUB75-A |
| Brightness | ≥1500cd/m2 |
| Unit Module | dimension | 576mmx576mm |
| Quantity of Module | 18 |
| Thermal discharge | fan 2pcs |
| Power supply Mode | 5V/40A* 3pcs |
| Pixel per cabinet | 192mm*192mm |
| Thickness | 85mm |
| Optimal Viewing Distance | 3M-20M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power consumption | 180W/H |
| Max power Consumption | ≤360W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥400HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768 |
Why choosed us:
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
4.ISO9001,CE , CCC,ROHS Certificates
Trade Terms:
1.Packing: Anti-shaking wooden cabinet /Air flight case/carton
2.Shipping port: Shenzhen. China
3.Shipping freights are quoted according to your requests
4.Delivery time:5-15 working days
5.2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges.
After Maintenance period, only charge the material costs fees.
