Home LED Light Products Compact 12W-36W Solar LED Garden / Street Light

Compact 12W-36W Solar LED Garden / Street Light

Compact 12W-36W Solar LED Garden / Street Light
Price: US $ 350/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Money Gram,Western Union

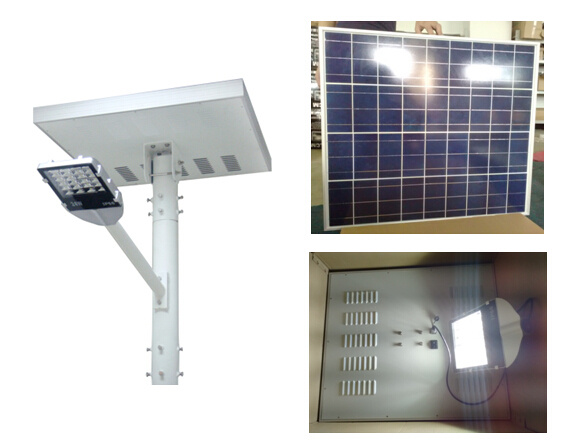

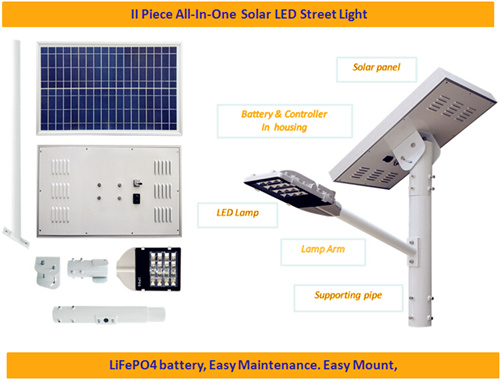

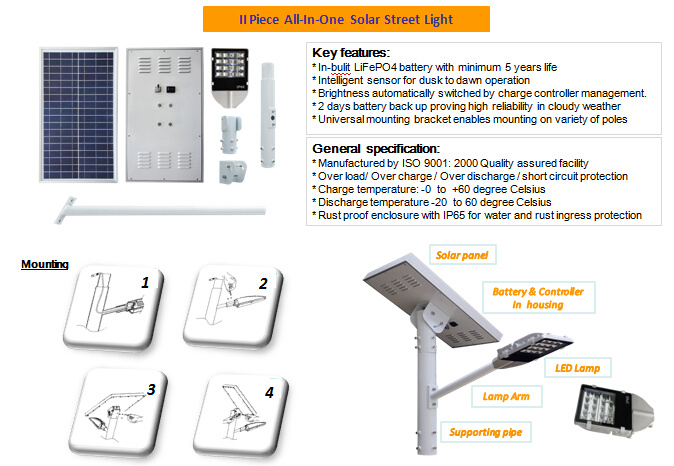

Compact II Piece 18W LED Solar Garden / Street Light

Economic self contain solar street lighting fixtures ready for installation right out of the box.
Each fixture can be retrofitted to an existing pole (76-80mm) in no time.
Complete range from 15W to 30W LED built on the same design concept.

For wide application:

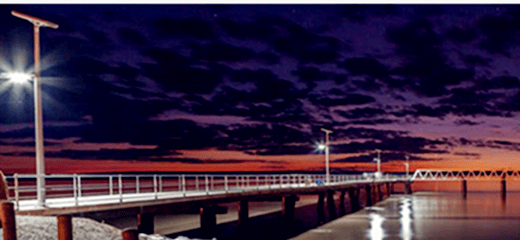

Street, Parking lot, Arenas, Public places, commercial space, bus stops, recreation area, Park, School, Hospitals.

Specfication: (15W LED, 18W LED, 24W LED, 30W LED)

Product CodeWS-605S-15WWS-605S-18WWS-605S-24WWS-605S-30W
LED lamp (watt)15182430
Solar panel (watt)30506080
Battery capacity        15AH / 12.8V25AH /12.8V30AH /12.8V40AH /12.8V
Lighting mode12 hours / night
30% brightness till morning, 100% brightness for 1 min when motion sensed.
12 hours / night
2 hour of 40% power
4 hours of 100% power
6 hours of 40% power
12 hours / night
2 hour of 40% power
4 hours of 100% power
6 hours of 40% power
12 hours / night
2 hour of 40% power
4 hours of 100% power
6 hours of 40% power
Backup time24 hours24 hours24 hours24 hours
Operating temp-20°C - 60°C-20°- 60°C-20°- 60°C-20°- 60°C
Color temp.6500K (cool white)6500K (cool white)6500K (cool white)6500K (cool white)
Pole Diam.76- 80 mm76-80 mm76-80 mm76-80 mm
Install height4-5 m4-5 m4-6 mm4-6 m
Pole distance> 15 m> 15 m> 18 m> 25 m





Prod Model: WS-605S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Integrated Design
Built In Battery: 5-7 Years LiFePO4
Power Source: Solar Independent
Solar Panel: Direction Tilted
Light Source: LED Light
Color Temperature(',CCT): Cool White
Lamp Body Material: Aluminum Alloy
Power Supply: Solar
Average Life: >8000h
Application: Garden
IP Rating: IP65
Certification: RoHS
Lamp Power: 12-30W
Voltage: 12V






The easiest and the simplest form of energy that can be handled both in Micro and Macro levels is the solar energy. The other forms of energy can be made profitable only on a larger scale of working, unlike Solar. The greatest advantage of solar is the availability in abundance and the cost and risk of installation and maintenance of the products.

Solar energy refers primarily to the use of solar radiation for practical ends. Today, the energy from the sun is used for purposes like heating, cooling, lighting, transportation, and many more.

Solar technologies are broadly characterized as either passive solar or active solar; Depending on the way they capture and distribute solar energy or convert it into solar power.

Today, when we look at development, the first thing that pops into our minds is the presence of electricity. Our lights brighten at the flip of a switch; Our computers wake up with the touch of a button, our streets are powered by solar lights. Yet, over 1.5 billion people worldwide still lack electricity and nations still compete for limited energy resources.

Shenzhen Winsolar technology Co., Ltd, we choose to act.

We have the technical know-how, the scale of operations, the partnerships, and, most important, the vision to put renewable energy within reaches of everyone.
