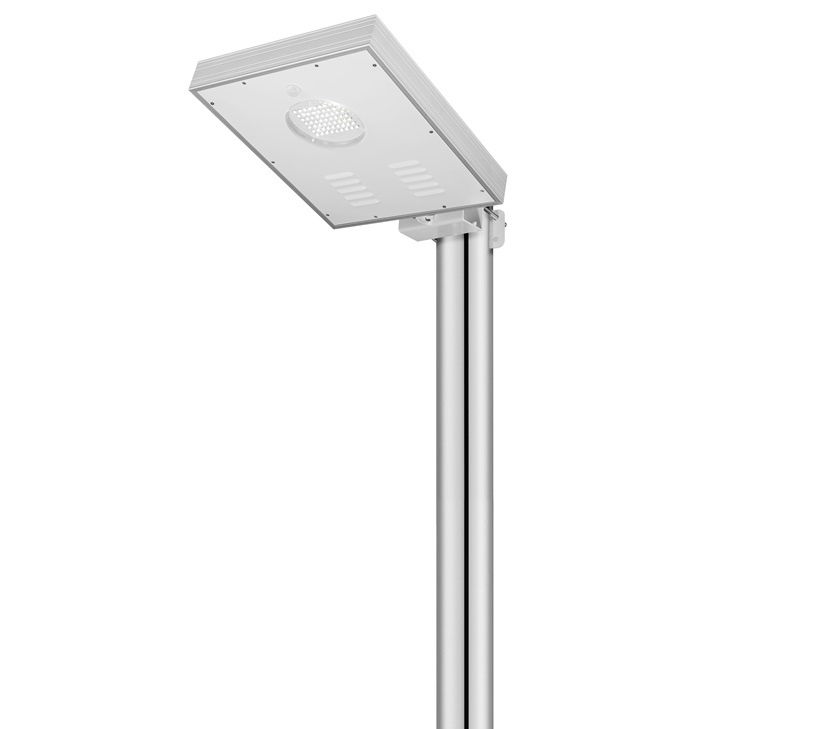

Home LED Light Products High Quality Integrated 5W LED All in One Solar Light

High Quality Integrated 5W LED All in One Solar Light

High Quality Integrated 5W LED All in One Solar Light
Price: US $ 100-108/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
5 years life span high quality integrated 5W LED all in one solar light

Solar Light with PIR sensor

Full All-in-One Solar Street Light
Economic self contain street lighting fixtures ready for installation right out of the box.
Each fixture can be retrofitted to an existing pole in no time.
Complete range from 5W LED to 60W LED built on the same design concept.
Street, Parking lot, Arenas, Public places, commercial space, bus stops, recreation area, Park, School, Hospitals.

Key features:
In-bulit LiFePO4 battery with minimum 5 years life
Intelligent sensor for dusk to dawn operation
Brightness automatically switched by charge controller management.
2 days battery back up proving high reliability in monsoon and cloudy weather
Universal mounting bracket enables mounting on variety of poles

General specification:
* Manufactured by ISO 9001: 2000 Quality assured facility
* Over load/ Over charge / Over discharge / short circuit protection
* Charge temperature: -0  to  +60 degree Celsius
* Discharge temperature -20  to 60 degree Celsius
* Rust proof enclosure with IP65 for water and rust protection

Product CodeWS-603-5W -EUWS-603-10W-EU
LED  Watt510
LED lumen max.450900
Solar panel (Watt)1525
Battery  (AH/V)         6AH / 12.8V  LiFePO4 9AH / 12.8V LiFePO4
Life span
(battery cycle)
20002000
Lighting mode12 hours / night
30% brightness till morning, 100% brightness for 1 min when motion sensed.
12 hours / night
30% brightness till morning,
100% brightness for 1 min when motion sensed.
Backup time24-36 hours24-36 hours
Housing MaterialAluminum alloyAluminum alloy
PIR sensorYESYES
Operating temp-20°C to +60°C-20°C to +60°C
Lamp Color temp.6500K (Cool white)6500K (Cool white)
Install height3-4 m3-4 m
Pole Diam.60-110mm60-110mm
Pole distance12m12m
Dimensions400*320*55mm555 X 350 X 55mm

Demo project:

Product CodeWS-603-15W - EUWS-603-15W - MA
LED  Watt1515
LED  lumen max.18751875
Solar panel30W30W
Battery  (AH/V)         9AH / 12.8V  LiFePO415AH / 12.8V LiFePO4
Life span
(battery cycle)
20002000
Lighting mode

12 hours / night
30% brightness till morning,
100% brightness for 1 min when motion sensed.
12 hours  / night
2 hours of 25% brightness,  100% for  one minute when motion sensed
3 hours of 100% brightness,
7 hours of 25% brightness
Backup24 hours27 hours
Housing MaterialAluminium alloyAluminium alloy
PIR sensorYESYES
Operating temp-20°C to +60°C-20°C to +60°C
Lamp Color temp.6500 K (Cool white)6500 K (Cool white)
Install height3-5 m3-5 m
Pole Diam.70-110mm70-110mm
Pole distance15 m15 m
Dimensions640 X 355 X 55 mm640 X 355 X 55 mm

Product CodeWS-603-20W - EUWS-603-20W - MA
LED  Watt2020
LED  lumen max.25002500
Solar panel40W40W
Battery  (AH/V)         12AH / 12.8V  LiFePO418AH / 12.8V LiFePO4
Life span(battery cycle)20002000
Lighting mode

12 hours / night
30% brightness till morning, 100% brightness for 1 min when motion sensed.
12 hours  / night , 2+3+7 Hybrid
2 hours of 25% brightness, 100% for  one minute when motion sensed
3 hours of 100% brightness,
7 hours of 25% brightness
Backup14 hours24 hours
Housing MaterialAluminium alloyAluminium alloy
PIR sensorYESYES
Operating temp-20°C to +60°C-20°C to +60°C
Lamp Color temp.6500 K (Cool white)6500 K (Cool white)
Install height4-6 m4-6 m
Pole Diam.70-110mm70-110mm
Pole distance18 m18 m
Dimensions858 X 355 X 55 mm858 X 355 X 55 mm


Product CodeWS-603-30W - EUWS-603-30W - MA
LED  Watt3030
LED  lumen max.37503750
Solar panel60W60W
Battery  (AH/V)         18AH / 12.8V  LiFePO425AH / 12.8V LiFePO4
Life span(battery cycle)20002000
Lighting mode

12 hours / night
30% brightness till morning, 100% brightness for 1 min when motion sensed.
12 hours  / night , 2+3+7 Hybrid
2 hours of 25% brightness, 100% for  one minute when motion sensed
3 hours of 100% brightness,
7 hours of 25% brightness
Backup14 hours24 hours
Housing MaterialAluminium alloyAluminium alloy
PIR sensorYESYES
Operating temp-20°C to +60°C-20°C to +60°C
Lamp Color temp.6500 K (Cool white)6500 K (Cool white)
Install height5-7 m5-7 m
Pole Diam.70-110mm70-110mm
Pole distance25 m25 m
Dimensions820 X 430 X 55 mm820 X 430 X 55 mm

CE, ROHS. IP65


Prod Model: WS-603-5W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 400*320*55
Life Span: 5-7 Years Super Long
Type: Solar Powered
Install Height: 3-4m Best
Mount: Pole Mainly
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Color Temperature: Cool White
Power: ≤5W
Technics: Painted Matte
Illumination Time: 8h
Charging Time (',H): 8
Usage: Street
IP Rating: IP65
Certification: RoHS
With Light Source: With Light Source
Cell Type: LiFePO4 Battery
Voltage: 9V






The easiest and the simplest form of energy that can be handled both in Micro and Macro levels is the solar energy. The other forms of energy can be made profitable only on a larger scale of working, unlike Solar. The greatest advantage of solar is the availability in abundance and the cost and risk of installation and maintenance of the products.

Solar energy refers primarily to the use of solar radiation for practical ends. Today, the energy from the sun is used for purposes like heating, cooling, lighting, transportation, and many more.

Solar technologies are broadly characterized as either passive solar or active solar; Depending on the way they capture and distribute solar energy or convert it into solar power.

Today, when we look at development, the first thing that pops into our minds is the presence of electricity. Our lights brighten at the flip of a switch; Our computers wake up with the touch of a button, our streets are powered by solar lights. Yet, over 1.5 billion people worldwide still lack electricity and nations still compete for limited energy resources.

Shenzhen Winsolar technology Co., Ltd, we choose to act.

We have the technical know-how, the scale of operations, the partnerships, and, most important, the vision to put renewable energy within reaches of everyone.
