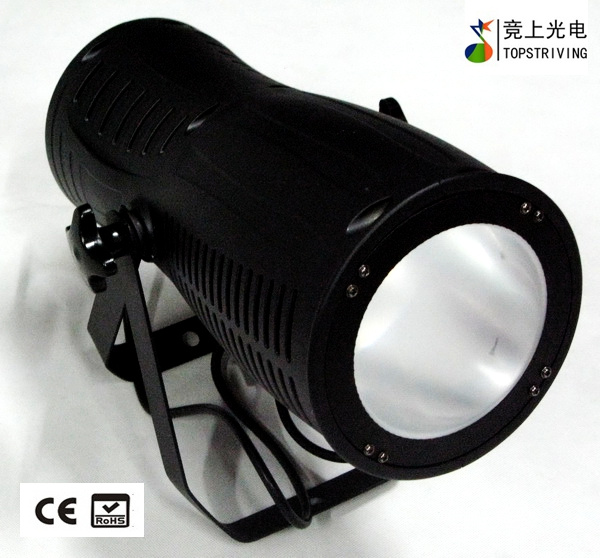

Using high MCD COB LED(chip on board) to achieve much more brightness and excellent ventilations and lowest energy consumption, with surface light source function plus the molded polishing/mirror finish reflector, specially designed mirror polish plano-convex lens, making light projections perfectly focused, the brightness more than two times as much as previously done, covering far distance, really ideal for lighting stages, BARS, DISCO HALLS, SMALL SHOWS, CABARETS, MUSIC SHOPS, MOBILE DJs, etc.
Equipped with 200W COLD WHITE COB high MCD LED
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
8 sub menus with serial numbers for easy operations
Fans running speeds adjustable by the programming for less noise
Beam angle 24 degrees, field angle 44 degrees
1/2/3 DMX channel modes
Blue LCD display
Du hanging bracket included, 3-pin XLR In/Out
Shutter: Pulse effect; Random strobe slow to fast
Power Consumption: 230W max
Dimensions (LxWxH): 45*24*18cm/hanging brackets placed vertically
Weight: 4.10kgs
DMX FUNCTIONS: 1-CHANNEL MODE
Channel 1 cold white from darkness to full brightness
DMX FUNCTIONS: 2-CHANNEL MODE
Channel 1 cold white from darkness to full brightness
Channel 2 strobe
DMX FUNCTIONS: 3-CHANNEL MODE
Channel 1 cold white from darkness to full brightness
Channel 2 strobe
Channel 3 color fade from slow to fast
|
DISTANCE(M) |
COLOR |
BRIGHTNESS(LUX) |
BEAM ANGLE |
FIELD ANGLE |
DIAMETER OF THE COVERING AREA(ROUND:M) |
|
1 |
CW/WW |
25000 |
24° |
44° |
0.70 |
|
2 |
CW/WW |
7000 |
24° |
44° |
1.40 |
|
3 |
CW/WW |
4000 |
24° |
44° |
2.10 |
