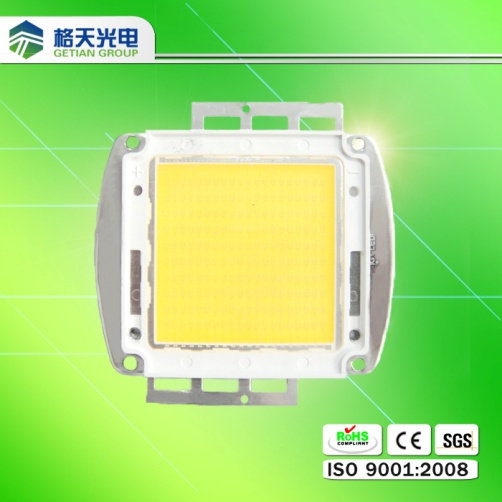

Good raw materialCOB LED High Power 300W LED for High Bay Light with CE RoHS LM-80 Certification for high bay light, flood light, tunnel light etc.
1) Efficacy of 100 lumens per watt
2) Very long life with 70% of light output after 50, 000 hours of operation
3) High reliability with 1.5 mil 99.99% pure gold wiring thread
4) Lead and mercury free, RoHS and CE compliant
Good raw material such as
USA Bridgelux chip or Taiwan Epistar chip
USA Dowcorning Silicon glue---less lighting decreasing
USA Intermatix phosphor powder---better performance in Lumens
Germany Herques 1.0mil Gold wire---hold bigger current and less electricity resistance than silver and cooper
Red/black cooper base---better thermal conductive/disspate
All machines are automatic machines
USA ASM die bonding machine, USA ASM wire welding and soldering machine,
Japan Mushasi Power Spoting and Japan Mushasi glue sealing machine
|
Parameter |
Min |
Avg |
Max |
|
Standard Power Dissipation |
|
300w |
|
|
Forward Voltage |
45V |
50V |
54V |
|
Forward Current |
|
7000mA |
|
|
Luminous Efficacy |
80LM/W |
__ |
110LM/W |
|
Correlated Color Temperature |
5000K |
6000K |
7000K |
|
Color Rendering Index |
65 |
70 |
90 |
|
Viewing Angle |
|
140° |
|
|
Full Width Half Maximum |
|
110nm/30nm |
|
|
Reverse Current |
|
10µA |
|
|
Reverse Voltage |
|
5V |
|
|
Welding Manner |
Welding Iron |
|
Welding Temperature |
|
|
350ºC |
|
Welding Time |
|
|
3s |
|
ESD Sensitivity |
|
|
2000V HBM |
|
Operation Temperature |
-40ºC |
50ºC |
60ºC |
|
Operation Humidity |
|
|
60%RH |
|
Storage Temperature |
20ºC |
|
40ºC |
|
Storage Humidity |
|
40%RH |
60%RH |
|
Lifespan |
50000H |
Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.
Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.
With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.
Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.
Warmly welcome all fields of friends to visit our company and negotiate trade.
