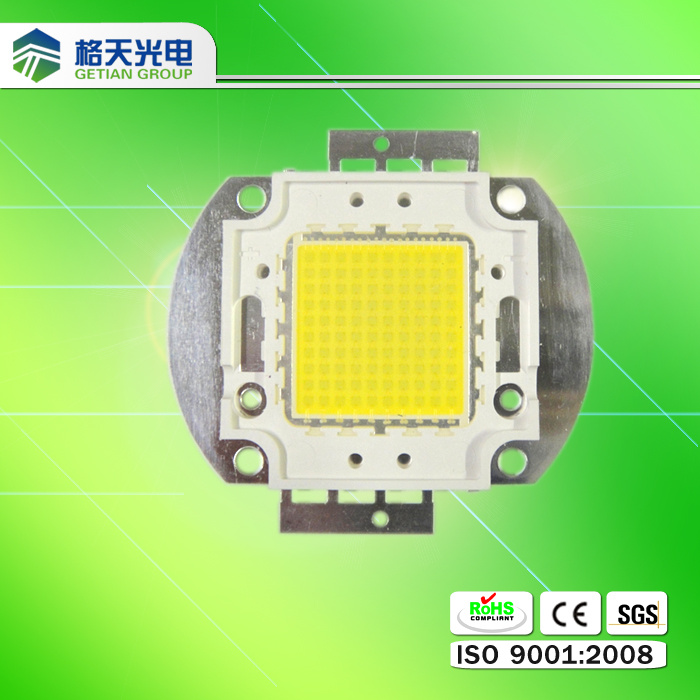

High power 90W COB LED for high bay light offers:
1) Efficacy of 100 lumens per watt
2) Very long life with 70% of light output after 50, 000 hours of operation
3) High reliability with 1.5 mil 99.99% pure gold wiring thread
4) Lead and mercury free, RoHS and CE compliant
This LED assembly emits a lambertian beam pattern with a typical viewing angle of 140° . You can specify your own preferred parameters with our ODM service or further shape the light output of this LED using secondary optics & accessories.
|
Parameter |
Min |
Avg |
Max |
|
Standard Power Dissipation |
|
90w |
|
|
Forward Voltage |
30V |
32V |
36V |
|
Forward Current |
|
3150mA |
|
|
Luminous Efficacy |
100LM/W |
__ |
110LM/W |
|
Correlated Color Temperature |
5000K |
6000K |
7000K |
|
Color Rendering Index |
65 |
70 |
90 |
|
Viewing Angle |
|
140° |
|
|
Full Width Half Maximum |
|
110nm/30nm |
|
|
Reverse Current |
|
10µA |
|
|
Reverse Voltage |
|
5V |
|
|
Welding Manner |
Welding Iron |
|
Welding Temperature |
|
|
350ºC |
|
Welding Time |
|
|
3s |
|
ESD Sensitivity |
|
|
2000V HBM |
|
Operation Temperature |
-40ºC |
50ºC |
60ºC |
|
Operation Humidity |
|
|
60%RH |
|
Storage Temperature |
20ºC |
|
40ºC |
|
Storage Humidity |
|
40%RH |
60%RH |
|
Lifespan |
50000H |
