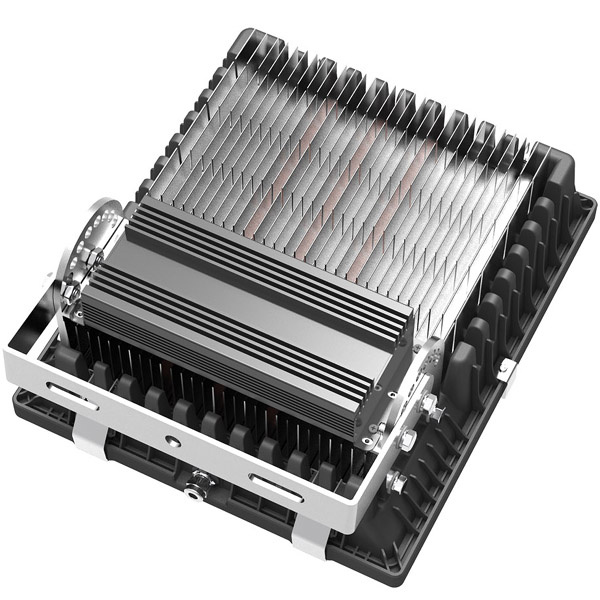

COB IP65 LED outdoor flood light
With strong abiliby for explosion proof light, Nibbe also has some non-explosion proof light, such as LED Flood Light, LED Hay Bay Light, LED Street Light. Our Flood light has a power range from 10W-400W.
Features
1 Superbright SMD top LED.
2 Available colors: red/green/blue/yellow/pure white/warm white/RGB
3 Operating low voltage (12V DC) like solar cell charged batteries for human safety. No threat of high-voltage electrocution
4 Customized lengths and LED quantities are available
5 No dark space and with 120° viewing angle and the linear lighting can be used in different places according to your detailed requirement
6 No ultraviolet and infrared radiation, low heat-release, long lifespan for 50,000 hours
7 Compact size. LEDs evenly arranged on PCB board. Homogeneous light.
8 For waterproof version, vacuum diffusion technique a very thin layer of deposited coating to IP68 waterproof standard, not affecting the LED brightness or color
9 With special connector and clip for fixing
10 Accessories and connected wires with a perfect and humanistic way
11 Sealed way: against dust with PVC
12 Luminous body of very high intensity, large viewing angle, good quality and stability
13 Base made of aluminum. Major reduction in power costs. No RF interference and no buzzing noise.
14 Adoption of high quality aluminum alloy, aluminum substrate as heat dispersion material guarantee the stability and high efficiency of LED, and effectively reduce its brightness degradation in the process of application
15 Energy-saving and environmental conservation, long lifespan
16 Solid-state, high shock resistant, strong packaging, convenient to transportation
LED Flood LightingPrimary Competitive Advantages
Green Product, Guarantee/Warranty International Approvals Military Specifications Price, Product Features, Product Performance, On time Prompt Delivery, Quality, Approvals, Reputation, Service, Small Orders Accepted
COB IP65 LED outdoor flood light
5. How to mount and use:
(1) Fix the light firmly with bolts by to mounting place.
(2) After having fixed the light, connect cable of the light with cable from AC power source. Triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively.
(3) Switch on the light. It will shine instantly.
6. Attentions
(1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light and there may be a case that you should choose a differently rated light.
(2) Make surface of the light case and glass cover clean to ensure light transmittance and heat diffusion.
(3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.
(4) Do not let amateur mount the light.
(5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light.
LED Flood Light
|
No |
Parameter |
Unit |
Value |
|
1 |
Rated Voltage |
V |
AC110/220(applied to 95~265) |
|
2 |
Rated Frequency |
Hz |
50/60(applied to 47~63) |
|
3 |
Power Consumption |
W |
120 |
|
4 |
Lamp Efficiency |
% |
≥93 |
|
5 |
Light Efficacy |
Lm/W |
≥85 |
|
6 |
Lifetime |
h |
≥50000 |
|
7 |
Beam Angle |
° |
120° |
|
8 |
Color Temperature |
K |
2700~4000(warm white)
5000~6500(pure white) |
|
9 |
Power Factore |
PF |
≥0.90 |
|
10 |
Harmonic Current |
% |
<20% |
|
11 |
IP Grade |
IP |
IP65 |
|
12 |
Corrosion-proof Grade |
|
WF1 |
|
13 |
Installation Height |
m |
10~15m |
|
14 |
Cable |
mm |
Φ8~Φ14 |
|
15 |
Dimension |
mm |
340X400X121mm |
|
16 |
Weight |
kg |
6 |
