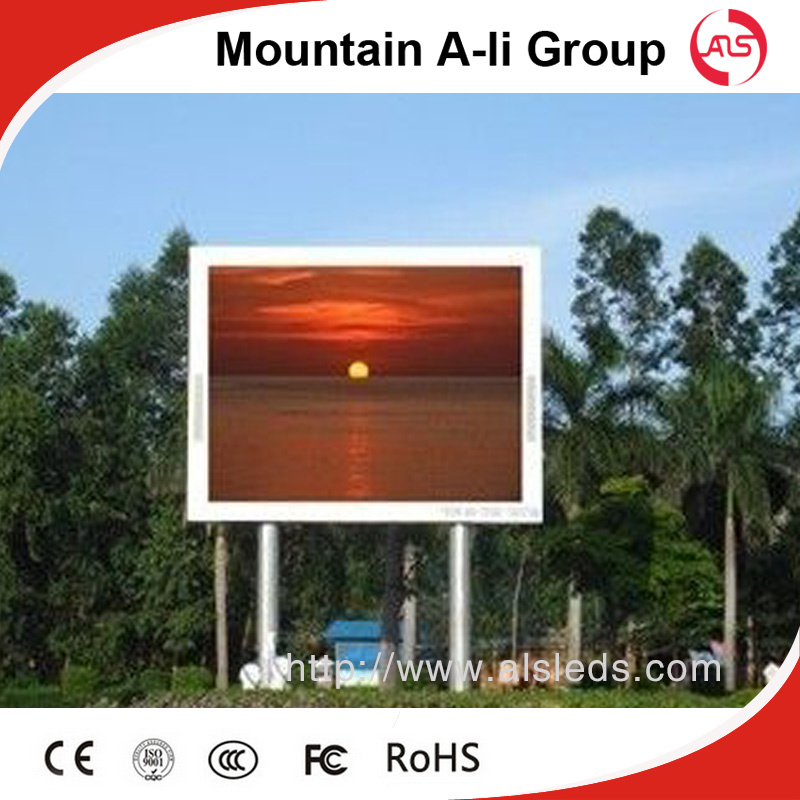

Chipshow P5 Outdoor Rental Full Color Advertising LED Display

Product features:
1) Ultra-high- definition display, high-precision seamless
2) The new structure designed to meet the lifting, stacking requirement,
to meet the requirements for indoor and outdoor
3)Ultra-high refresh rate, support the camera recordor ,  to ensure a
clear picture quality
4) Quick editing of assembly, disassembly system, saving unloading time

Product Description

P5 Outdoor Surface Mounted Module Technical Parameters

	Item	Parameter
Unit Module	Module size	160mm*160mm
	Pixel pitch	5mm
	Pixel density	40000dots/m²
	Pixel configuration	1R1G1B
	Package mode	SMD2828
	Pixel resolution	32dots(W)*32dots(H)
	Max power consumption	25W                   30W
	Module thinkness	14.27mm(without magnet) 26.6mm(with magnet)
	Weight	0.21kg
	Drive type	constant drive
	Scan mode	1/8 scan
	Port type	HUB75-B
	Brightness of white balance	≥1600cd/m²                         ≥6400cd/m²
Unit Module	Dimension	640mm*640mm
	Quantity of module	16
	Power supply	5V/40A*2pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	128mm*128mm
	Best viewing distance	5m~30m
	Best viewing angle	160°(W)120°(H)
	Temperature	storage:-35ºC~+85ºC working:-20ºC~+50ºC
	Relative humidity	10%~95%
	Thickness	85mm
Power	Working voltage	AC220±10%
	Average power consumption	≤1180W/m²                   ≤ 300W/m²
	Max power consumption	≤ 500W/m²                     ≤ 500W/m²
	Current	≤20mA(single LED)
Control system	CPU	pentiuma or above
	Operation system	WIN98/2000/NT/XP
	Control method	synchronization
Main technical parameter	Driving device	constant current driver IC
	Refresh frequency	≥400HZ
	Grey scale/colors	256 levels of each color(RGB)16.7M colors
	MTBF	≥9000hours
	Power switch	automatic switch
	Display module	800*600/1024*768

Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market  and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
