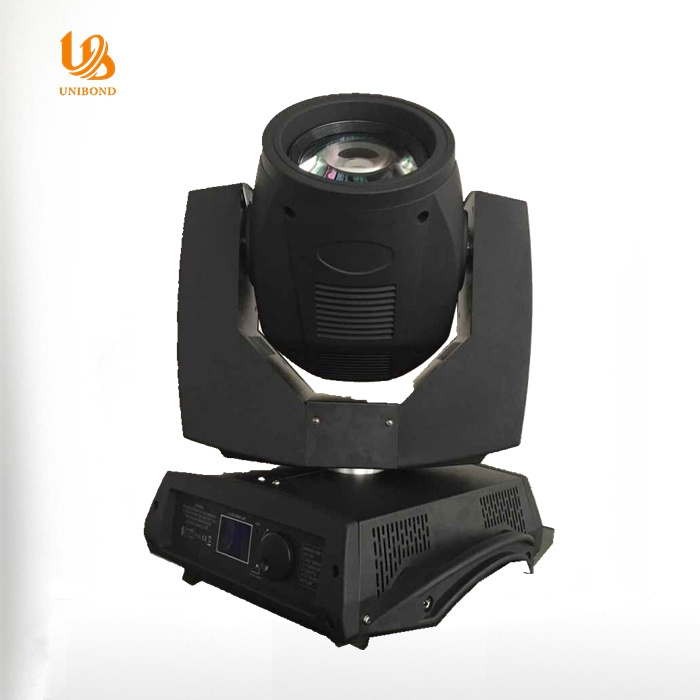

7R 230W MOVING HEAD SPOT & BEAM & WASH Stage Lighting
Specifications for Stable Goods Moving Head 200W Beam 5r/230w beam 7r |
Voltage | AC 100-240V 50 /60Hz |
Lamp for 5r | 200W |
Lamp for 7r | 230W |
Color Temperature | 8000K |
Average Life Span | 2000 hours |
Power Consumption for 5r | 300W |
Power Consumption for 7r | 350W |
Ballast | Electronic ballast |
Color Wheel | 14 Dichroic Colors+white |
Color effects | With adjustable rotation speed |
With double direction stream ,rainbow effect and color location |
Gobo Wheel | 17 fixed gobo + open |
Gobo effects | With double direction rotation ,sharking effect and Adjustable rotating speed |
Prism effects | With double direction rotation and adjustable Rotation Speed |
Prism | Rotatable 8 Facet Prism Effect |
Beam angle | 0-4º |
Frost | Frost Effect For Wash , adjustable speed frost |
Strobe | Double lens strobe(0.5-9 times / second) |
With adjustable strobe speed and wonderful strobe style |
Dimmer | Mechanical Dimmer 0-100% , mechanical Dimming and free dimming available |
Movement | Pan 0-540º / Tilt 0-270º |
Control mode | Standard DMX512 , Automatic and Master/ Slave mode |
Control channel | 16 / 20 MDX Channels |
Housing | Composite plastic , Ip20 |
Housing color | White and Black are optional |
Certificate | CE&RoHS approval |
Fixture Size | 350x320x505mm |
Net weight | 18.5kg |
Carton packing size | 48x44x57cm(1piece /carton) |
Gross weight | 24KG |
Flight packing size | 820x470x730mm(2pcs /case) |
Gross weight | 64KG |
2.product images:
3.detailed drawing
4.FAQ
Q:How about the warranty?
A:All of our light have 24 months warranty.
Q:When you will ship the product after I pay the money?
A:Its depend on the order, small order will takes 3-5 work days. if the item in store, we will ship next day.
Q: If the light have some problem,do you have some after sales service?
A:Ofcourse. First, you need send picture or video to us,let us make sure what's problem about the product.If this problem can use parts to solve
we will send the replacements in free and bear the shipping fee, if the problem cannt solve,We will give u discounts in your next order for compensation.
5.after service
Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Choose us, choose profession! Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Choose us, choose profession!
tel:18898417528
6.factory images
7.About us
The Unibond Electronics group is a global designer, manufacturer and distributor of electronic and electric products for the lights industry.
Frankfurt Music Messe Pro Light + Sound, Beijing PALM Show,Guangzhou pro sound and light show , Music China Shanghai and other trade fairs provide us opportunities for face-to-face communication with customers. Alibaba, Google, facebook,, Baidu and other network promotion are the way to achieve the customers.
UnibondLights is specialized in stage lighting researching,producing,selling and after sell serviceand also doing the stage lighting engineering.With leading technology, fashion experience elite team , advanced management mode, excellent workmanship,at the same time.
Guangzhou Unibond Electronics Co., Ltd has been dedicated to R&D, manufacture and sales of stage lighting, architectural series, LED series. Such as Beam light, Spot light, LED Moving, LED Effect Light, LED PAR Light, LED washer and so. OEM and customized service is well provided for our customers.
Over 20 years of technical experience of our lighting engineers are the foremost guarantee to all of our operation. Nearly 70 light professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs had built up solid foundation to our quality as well as to our success in the industry. We have the world top-ranking professional test equipment. The excellent quality and fast service acquire us great reputation from distributors and users all over the world.
Thank you for joining us - a Larger and better Unibond family!
