SHARPY 15R 330W MOVING HEAD BEAM Stage Lighting
Features:
Yodn 330w 15r, 3pahse motors,unique Optical lens
Sharpiest, biggest beam in the beam market
Unique/only 8/16/24/32/40/48 prism effect all in one
2 gobo system that can cast colorfull beam and different beam shape combining with the gobo wheel
video link: https://youtu.be/0XEE_QnHF6U
1.Parameter:
330 beam 15r moving head beam light
beam spot moving head Model: YA056 |
Voltage | AC 100-240v, 50-60Hz |
Power frequency | 330w |
Control channel | 3 DMX modes 21/23/34 Channels DMX International DMX512 signal, auto-run, master/slave |
Strobe | 0-13 times/sec, with random stroboscopic |
Color | 7500K |
Function | a color wheel.6colors+white,a pattern plate. 14Pattern+whiteReplaceable pattern plate high speed wobble effect,an atomizer a eight prism positive and negative direction of rotation Positioning function with prism.focus,zoom,LCD display |
|
|
Prism | rotating 3-prism, can be positive and negative rotation direction and with 16 prism micro effect |
|
|
Focus | linear electronic focus |
Dimmer | 0-100% linear dimmer |
Aperture | 5%-100% aperture effect |
G.W. | 23kg |
channel | Channel mode |
1CH | color wheel | 0-255 |
2CH | strobe/swiching | 0-255 |
3CH | dimming | 0-255 |
4CH | pattern plate | 0-255 |
5CH | rotation of pattern plate | 0-255 |
6CH | 16 prism rotation | 0-255 |
7CH | 16 prism autorotation | 0-255 |
8CH | focus | 0-255 |
9CH | enlarge | 0-255 |
10CH | fixed 24 prism | 0-255 |
11CH | X | 0-255 |
12CH | X fine turning | 0-255 |
13CH | Y | 0-255 |
14CH | Y fine turning | 0-255 |
15CH | reset | 0-255 |
16CH | lamp control | 100-105light off 200-205light on |
2.product images:
3.detailed drawing
4.FAQ
Q:How about the warranty?
A:All of our light have 24 months warranty.
Q:When you will ship the product after I pay the money?
A:Its depend on the order, small order will takes 3-5 work days. if the item in store, we will ship next day.
Q: If the light have some problem,do you have some after sales service?
A:Ofcourse. First, you need send picture or video to us,let us make sure what's problem about the product.If this problem can use parts to solve
we will send the replacements in free and bear the shipping fee, if the problem cannt solve,We will give u discounts in your next order for compensation.

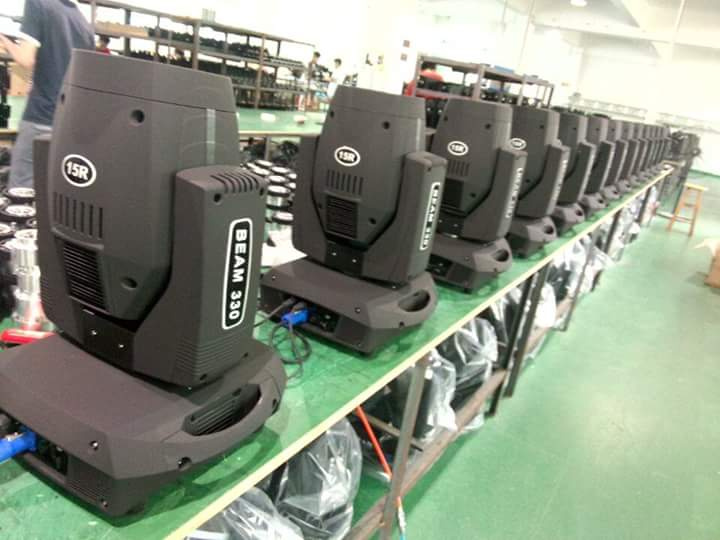

6.factory images
