| Prod Model: |
SH-beam200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Shambo |
| Name: |
7r Moving Heads Stage Beam |
| Model: |
Sh-Beam200 |
| Lamp: |
7r Osrm 230W |
| Color: |
with 14 Colors + Blank |
| Gobo: |
with 17 Fixed Gobos + Blank |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| Certification: |
RoHS |
| Light Source: |
Gas Discharge Bulb |
| Voltage: |
220V |
| Control Channel: |
17CH |
Product Description
Specification of Moving head beam 7R:
Voltage: 200V ~ 240V/50 ~ 60Hz (optional 100 ~ 120V/50 ~ 60Hz)
Ballast: Electronic ballast
Lamp: 7R 230W Osram Color Temperature: 10000K
Average life: 2000H
Color: With 14 colors + blank
Figure case: With 17 fixed gobos + blank
The prism: Rotation octahedral prism, bi-directional rotation, beam effects can be opened and closed
Lens: High precision gluing optical lens
Soft effect: You can adjust the soft spot angle
Iris: Seven beam adjustment
Adjust focus: Linear focus
Dimming: 0-100% linear regulator
The range of projected light: X to 540 degrees, Y to 250 degrees, can be automatically corrected positioning
Beam angle: Parallel beam angle: 0 - 3.8 °
Strobe: Double Strobe (0.5-9 times / second)
Motor number: A total of 13 ultra-quiet motor,
Two three-phase motors, 16Bit driver
Control mode: International standard DMX512
Transmission: Built-in wireless DMX512 receiver (only the F230R there)
Number of Channels: 17 channels
Other features: Remote control light switch function, lamps, bulbs, automatic fan speed control function, mechanical shut off laser automatically when 50 percent reduction in light power
Appearance: High-temperature plastic + molding alloy
Protection: IP20
Net weight: 17.5KG

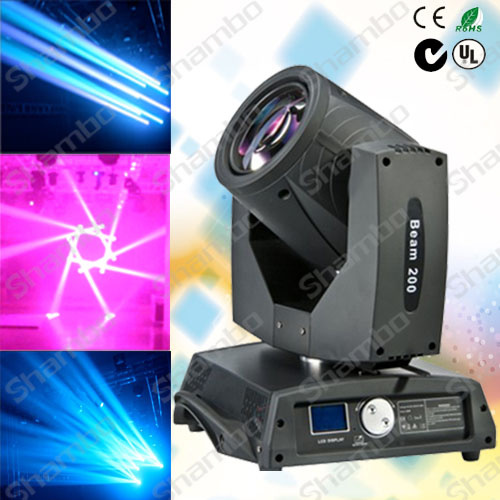

Picture of Moving head beam 7R:
Why choose us?
1. Rich experience on manufacturing stage lighting!
2. At least 48hours QC Testing/Aging test!
3. On time delivery!
4.12months warranty!
5. Offer 7*24hours Service!
Shipment method:
DHL, UPS, FEDEX, AIR CARGO, BY SEA Optional
GuangZhou Shambo Stage Lighting Factory founded in 2003, Located in GuangZhou of China. We are the factory has 5000sqm, 100workers mainly produce LED Stage lighting including LED Moving head, LED PAR CAN, IP65 LED PAR, LED WALL WASHER, LED FLOODLIGHT, and Sky Tracker and so on. We have a group of professional R&D, Production team and a complete after-Sales service team to make sure the quality of our products ancd the best service of our company. All of our products pss CE, ROSH certificate.
Our products have been sold all domestick market and exported to Europe, America, South America and Southeast Asia, Middel East and other countries. All customers consistent high praise and recognition. Our philosophy is "Qualidy First, Service First, Honesty First"
We are on the way to light up the world
